UP mini 2 User Manual

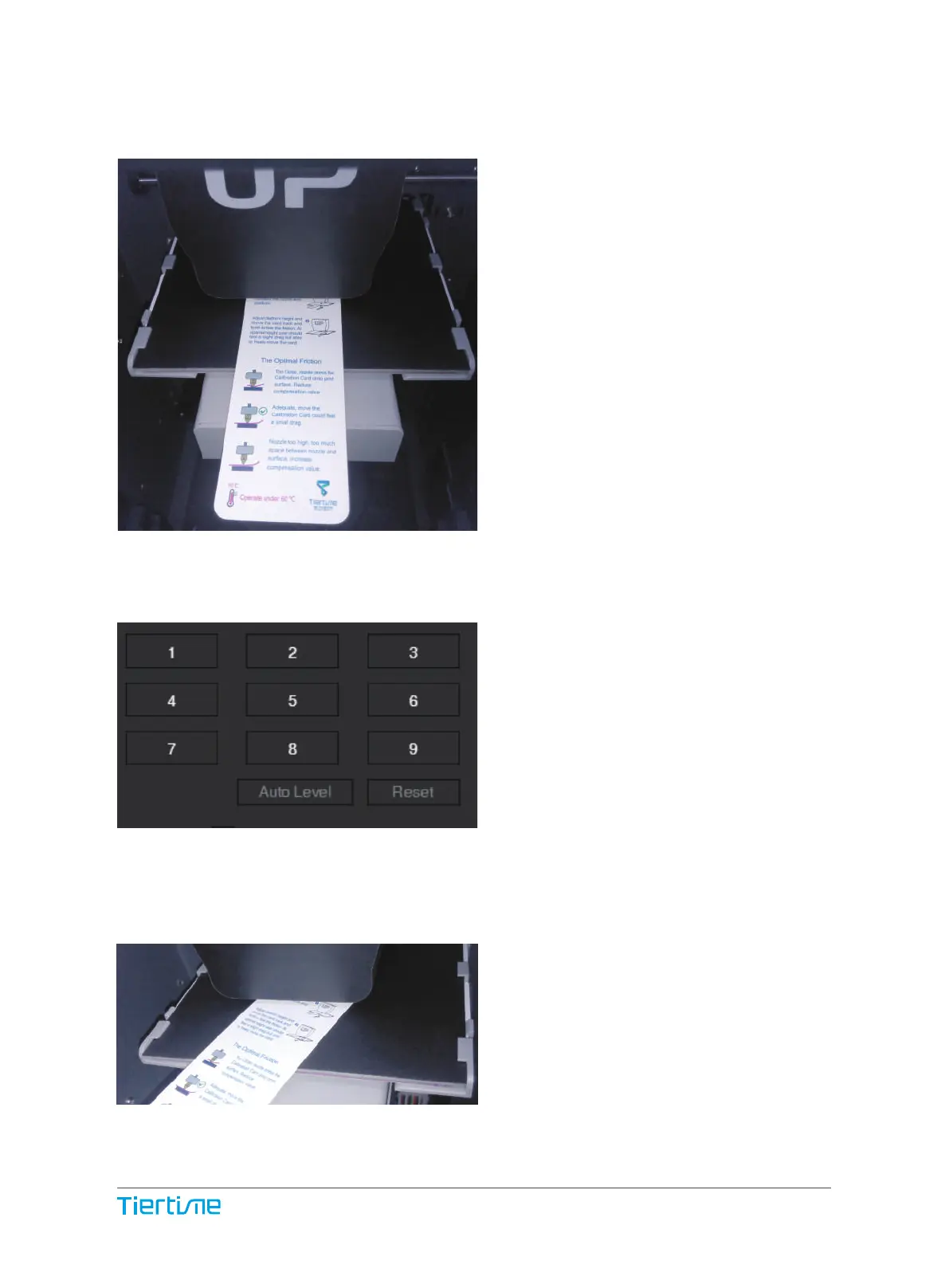

1\ Initialize the printer
2\ Put a Calibration Card on the plat-
form.
3\ Move print head to the middle of
the platform by click 5.
4\ Raise the platform until it is just
touching the nozzle. Move the Cali-
bration Card between the nozzle and
the platform to see if there is any
resistance.
43

UP mini 2 Specifications

General

Build Volume	120 x 120 x 120 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Print Material	ABS, PLA
Connectivity	USB, Wi-Fi
Heated Bed	Yes
Enclosure	Yes
Touchscreen	Yes
Print Technology	FDM (Fused Deposition Modeling)
Print Speed	Up to 100 mm/s
Power Requirements	100-240V, 50-60Hz
Weight	8 kg
