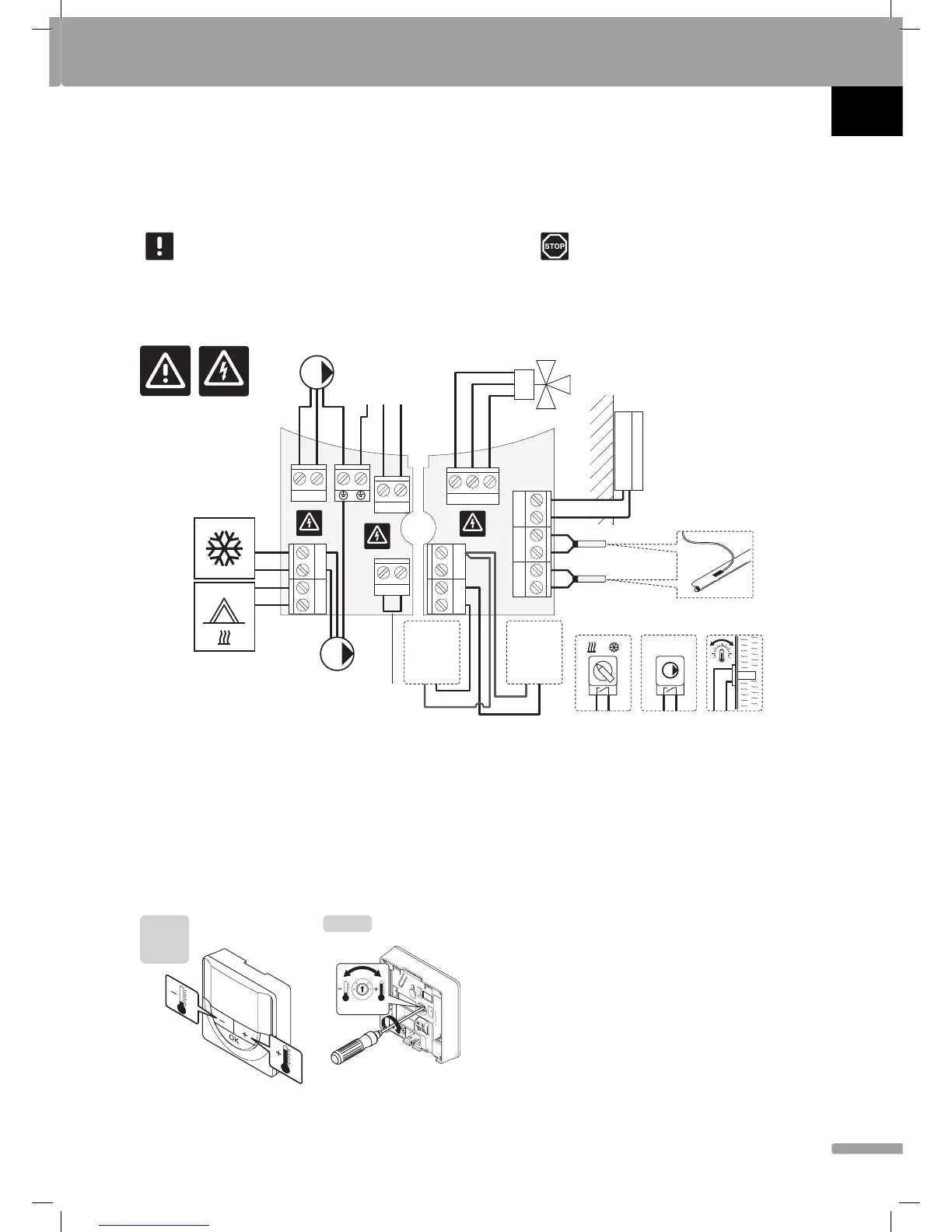

UPONOR SMATRIX MOVE PLUS · QUICK GUIDE
QUICK GUIDE
Quick Guide
NOTE!
This is a quick start guide to serve as a
reminder for experienced installers. We
strongly recommend reading the full
installation and operation manual before
installing the control system.
Warning!
Electrical installation and service behind
secured 230 V AC covers must be carried
out under the supervision of a qualifi ed
electrician.
230 V AC
50 Hz
POWER
N
PUMP P1
PUMP P2 **
CONTACT
Ther ****
OUTSIDE *
WATER RETURN *****
In1/In2 *** In1/In2 *** In1/In2 **
WATER IN
SENSORS
SENSORS
HEAT COLD **
ACTUATOR 230 V
N
L
2
4
In2
In1
In1 In2
L
N
L
N
L
Open Common Close
230 V 50 Hz
230 V 50 Hz
230 V 50 Hz
230 V 50 Hz
*) The outdoor temperature sensor can be connected to either the controller or to a thermostat.
**) Connect either COLD or PUMP P2 (secondary heating/cooling circuit) to the connection terminal.
***) Select one of the inputs (heating/cooling switch, pump control signal, or immersion thermostat) and set parameter 11 – Wired Input 1 selection, or parameter 12 – Wired
Input 2 Selection, accordingly. The heating/cooling option can only be used in systems without a registered wireless thermostat.
****) Optional temperature limiter connection, fi tted with a cable bridgre from the factory. Remove the bridge if a temperature limiter is to be used together with PUMP P1.
*****) Optional return sensor. Can only be used, for boost function, in systems without a registered wireless thermostat.
Thermostat operating instruction
T-163
T-168
T-167
T-166
20
5
35
