Upright LX Electric User Manual

Page 4 Operator Manual
067903-004R1 LX Series Work Platform Controls and Indicators
C ONTROLS AND I NDICATORS

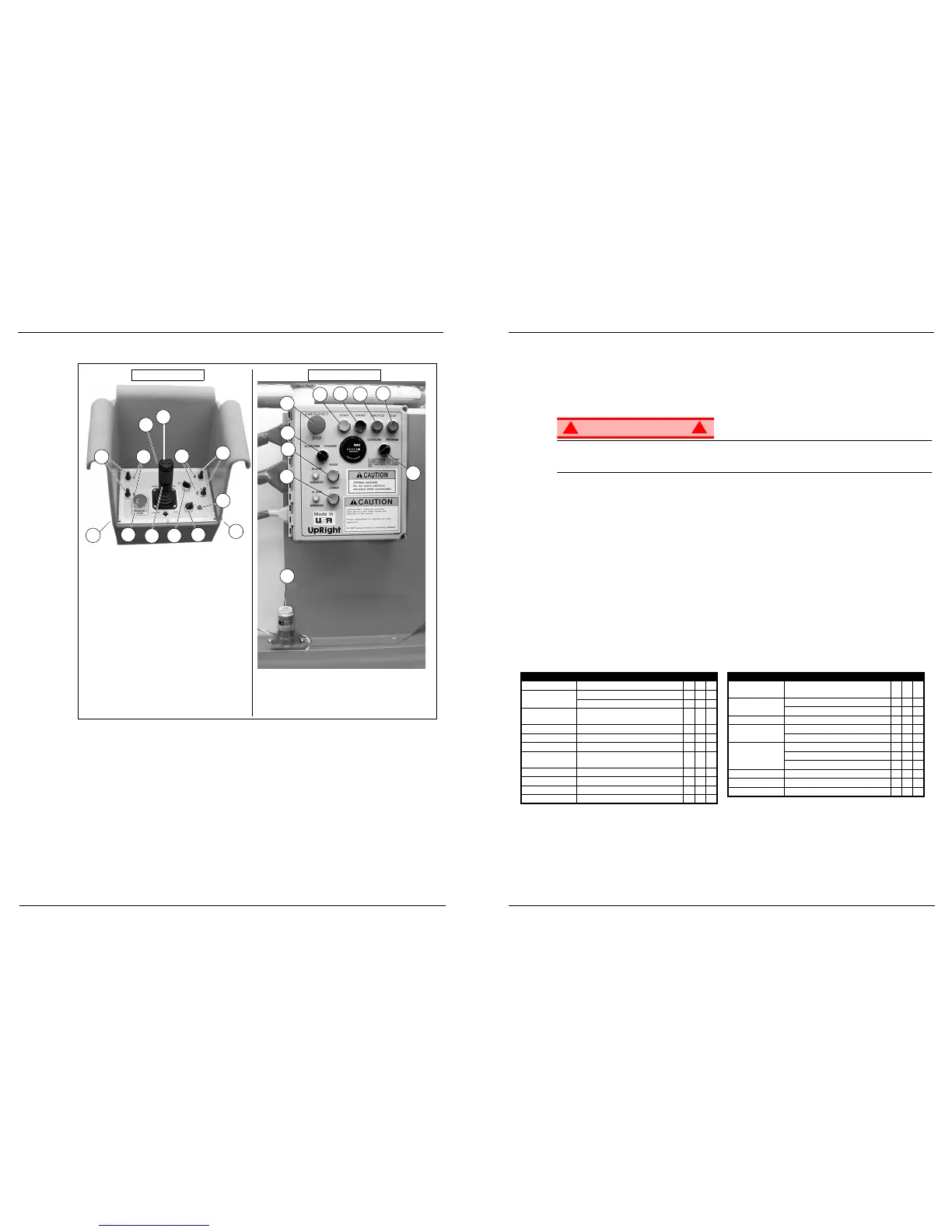

Figure 3:
Controls and Indicators
4*
2
1
3
7**
9
10
8
Outrigger Options
* Outrigger Switches and Outrigger Lights are installed on
outrigger equipped machines only.
** Outrigger selection is available on outrigger equipped
machines only.
5*
5*
4*
1 Steering Switch
2. Interlock Lever Switch
3. Control Lever
4. Outrigger Switches
5. Outrigger Indicator Lights
6. Emergency Stop Switch
7. Lift/Drive Switch
8. Drive Speed/Torque Selector Switch
9. Drive Enable Indicator
10. Key Switch
11. • Choke Button (dual fuel)
• Glow Plug Button (diesel)
6
11
1 Emergency Stop
2. Platform/Chassis Switch
3. Raise Button
4. Lower Button
5. Start Button
6. Glow Plug Button
7. Throttle Button
8. Stop Button
9. Level Sensor
10. Fuel Selector Switch
7
1
2
3
4
5
6
8
9
Platform Controls Chassis Controls
10
Preventative Maintenance 067903-004R1 LX Series Work Platform
Operator Manual Page 17
P REVENTATIVE M AINTENANCE
The complete inspection consists of periodic visual and operational checks, along with periodic minor
adjustments to assure proper performance. Daily inspection will prevent abnormal wear and prolong the
life of all systems. The inspection and maintenance schedule is to be performed at regular intervals.
Inspection and maintenance shall be performed by personnel who are trained and familiar with mechanical
and electrical procedures.
WARNING
!
!
Before performing preventative maintenance, familiarize yourself with the operation of the machine.
Always block the elevating assembly whenever it is necessary to enter the scissor assembly to perform
maintenance while the platform is elevated.
The preventative maintenance table has been designed for machine service and maintenance repair.
Please photocopy the Daily Preventative Maintenance Check List and use the table as a checklist when
inspecting the machine for service.
D AILY P REVENTATIVE M AINTENANCE C HECK L IST
\
M AINTENANCE T ABLE K EY
Y=Yes/Acceptable
N=No/Not Acceptable
R=Repaired/Acceptable
M AINTENANCE R EPORT
Date: _______________________________________
Owner: _____________________________________
Model No: ___________________________________
Serial No: ___________________________________
Serviced By: _________________________________
COMPONENT INSPECTION OR SERVICES Y N R
Battery Check electrolyte level
Chassis
Check hoses for pinch or rubbing points
Check welds for cracks
Control Cable
Check the exterior of the cable for pinching,
binding or wear
Controller Check switch operation
Drive Motors Check for operation and leaks
Elevating Assembly Inspect for structural cracks
Emergency Lowering
System
Operate the emergency lowering valve and
check for serviceability
Entire Unit Check for and repair collision damage
Hydraulic fluid Check fluid level
Hydraulic Pump Check for hose fitting leaks
Hydraulic System Check for leaks
Labels
Check for peeling, missing, or unreadable
labels & replace
Platform Deck and
Rails
Check welds for cracks
Check condition of deck
Tires and Wheels Check for damage
Engine Oil and Filter
Check level and condition
Check for leaks
Engine Fuel System
Check fuel level
Check for leaks
Check air cleaner
Engine Coolant Check coolant level (with engine cold)
Torque Hubs Check for leaks
Outriggers Check for operation and leaks
COMPONENT INSPECTION OR SERVICES Y N R
