Upright MX15 - INTRODUCTION AND GENERAL DESCRIPTION; GENERAL DESCRIPTION

Controls and Indicators
113100-020 - MX15 / MX19 - Operation Manual Page 5
C
ONTROLS AND
I
NDICATORS

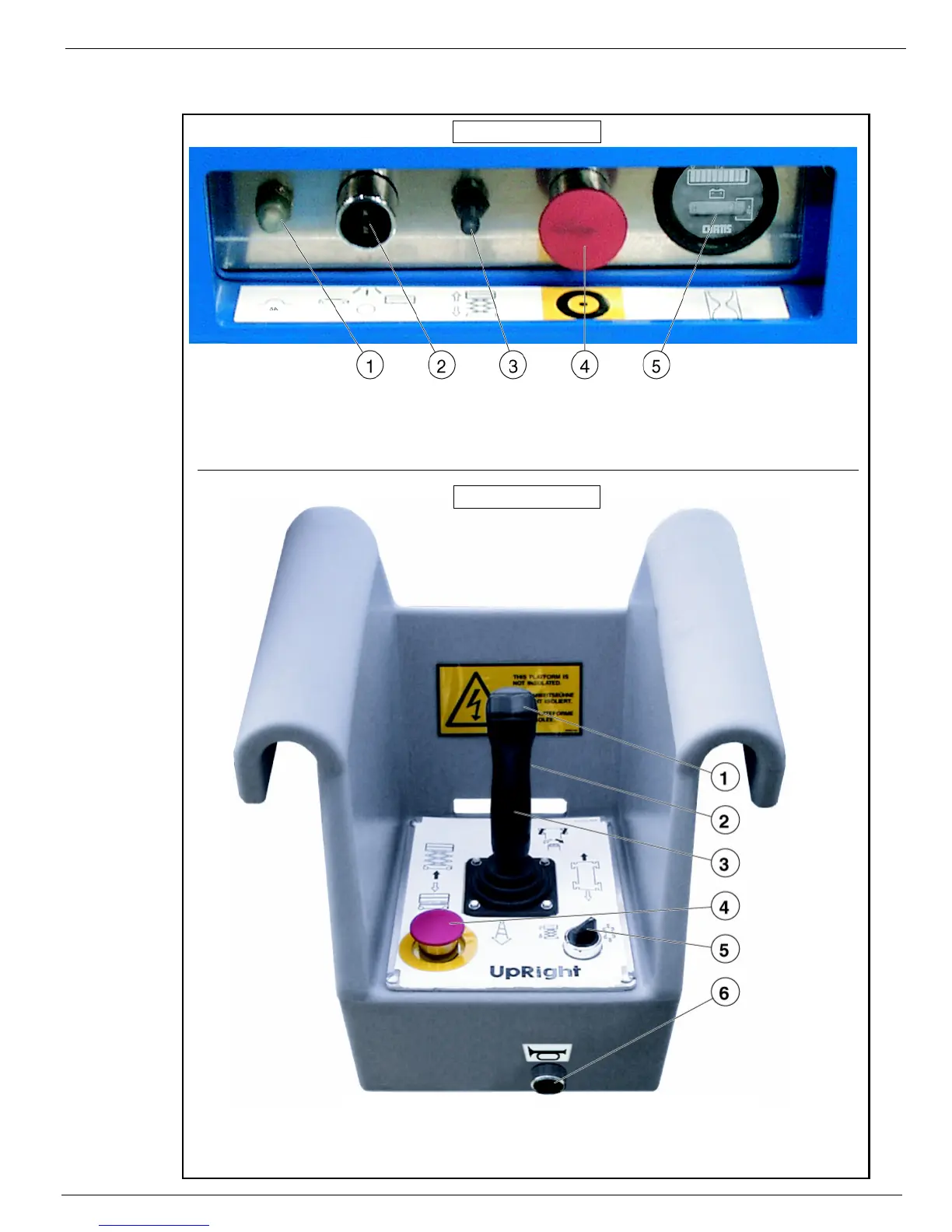

Figure 2:
Controls and Indicators
1. Circuit Breaker
2. Chassis Key Switch
3. Chassis Lift/Lower Switch
4. Chassis Emergency Stop Button
5. Hour Meter/Voltage Indicator
1. Steering Switch
2. Interlock Switch (on front
of Control Handle)
3. Control Handle
4. Platform Emergency Stop
Switch
5. Lift Drive Selector Switch
6. Horn Button
Platform Controls
Chassis Controls
