Hydraulic Drive Motors Section 2 - Service and Repair
Page 2-22 113101-000 MX15 / MX19 | Service Manual
R EAR W HEELS

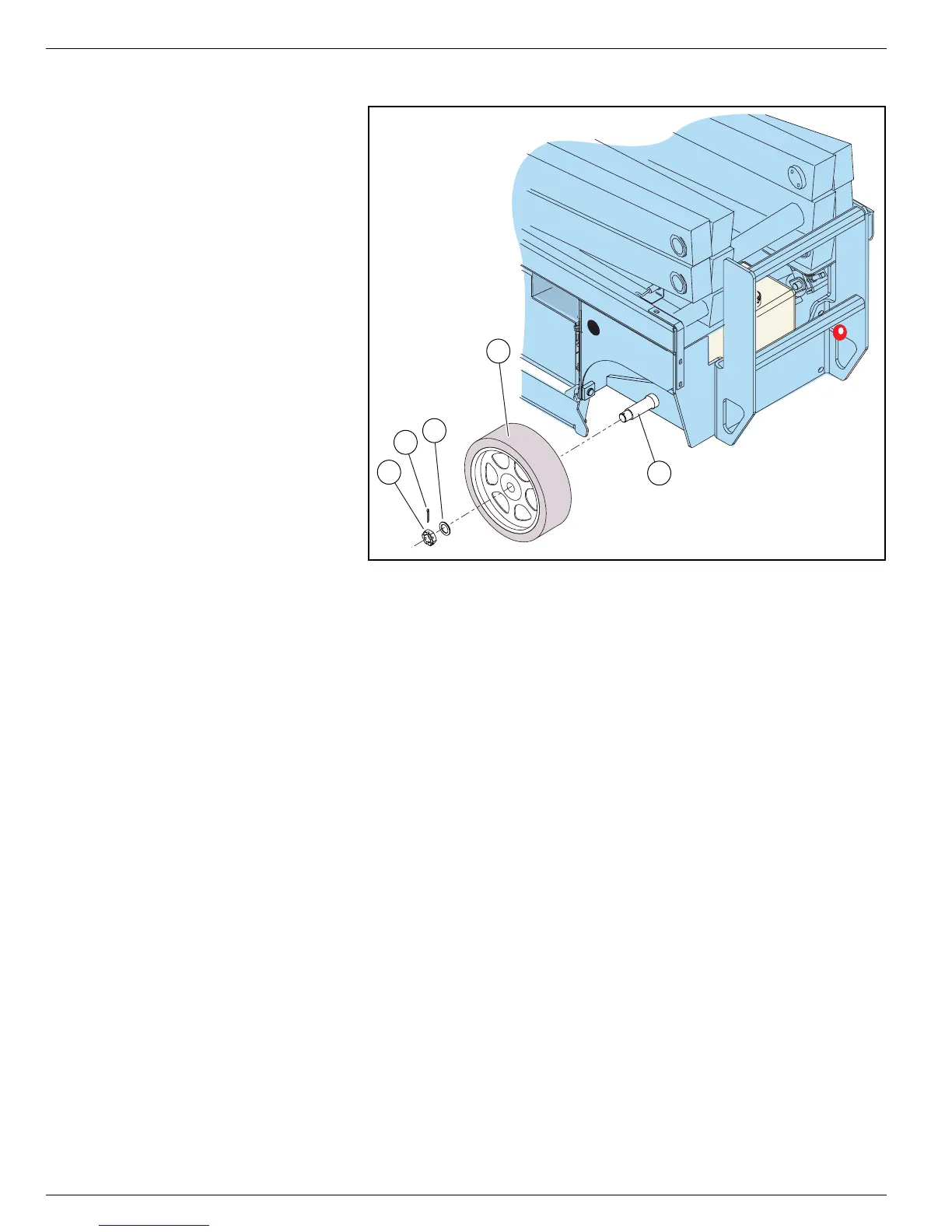

Figure 2-16:
Rear Wheel
R EMOVAL
1. Chock the front wheels to
prevent the machine from
rolling.
• Use a 1000 Kg
(1U.S.ton) capacity
jack to raise the rear of
the machine.
• Place two 1000 Kg
(1U.S.ton) jackstands
beneath the machine for
support.
• Remove the jack.
2. Remove the cotter pin
and slotted nut.
3. Remove the wheel.
I NSTALLATION
NOTE:
If you are installing a new
wheel, it may be necessary to
ream the hub bore.
1. Clean the axle shaft and hub bore.
2. Lubricate the slotted nut face and threads.
3. Position the wheel onto the axle shaft.
4. Tighten slotted nut until it is snug, then back-off until the wheel turns freely and install a new cotter pin.
5. Remove the jackstands and lower the machine to the ground.
4
5
3
1
2
1. Wheel
2. Axle Shaft
3. Washer
4. Slotted Nut
5. Cotter Key
