Is the Selector Switch, turned on?
Motor will not start (Mains)
NO
YES
Select switch position
& Read Operators
Manual
Are all Emergency Stops Reset?
Reset Emergency stops
& Read Operators
Manual
NO
YES
Has the Circuit Breaker tripped?
Reset the Circuit Breaker
& Read Operators
Manual
If further advice is
required, consult
an
UpRight
Technician.
NO
YES
Is the Correct Power supply Connected?
Connect power supply
& Read Operators
Manual
NO
YES
!
All extensions must be a minimum of 2.5mm², and no longer than
10m, due to possible voltage drop, which will damage the motor.
Voltage Drop may be
the cause, Use a shorter
Extension lead
If further advice is
required, consult
an
UpRight
Technician.
NO
YES
Check the voltage at the motor is
230V when the motor is turning?
Motor stalling.
Working Hard, Noisy

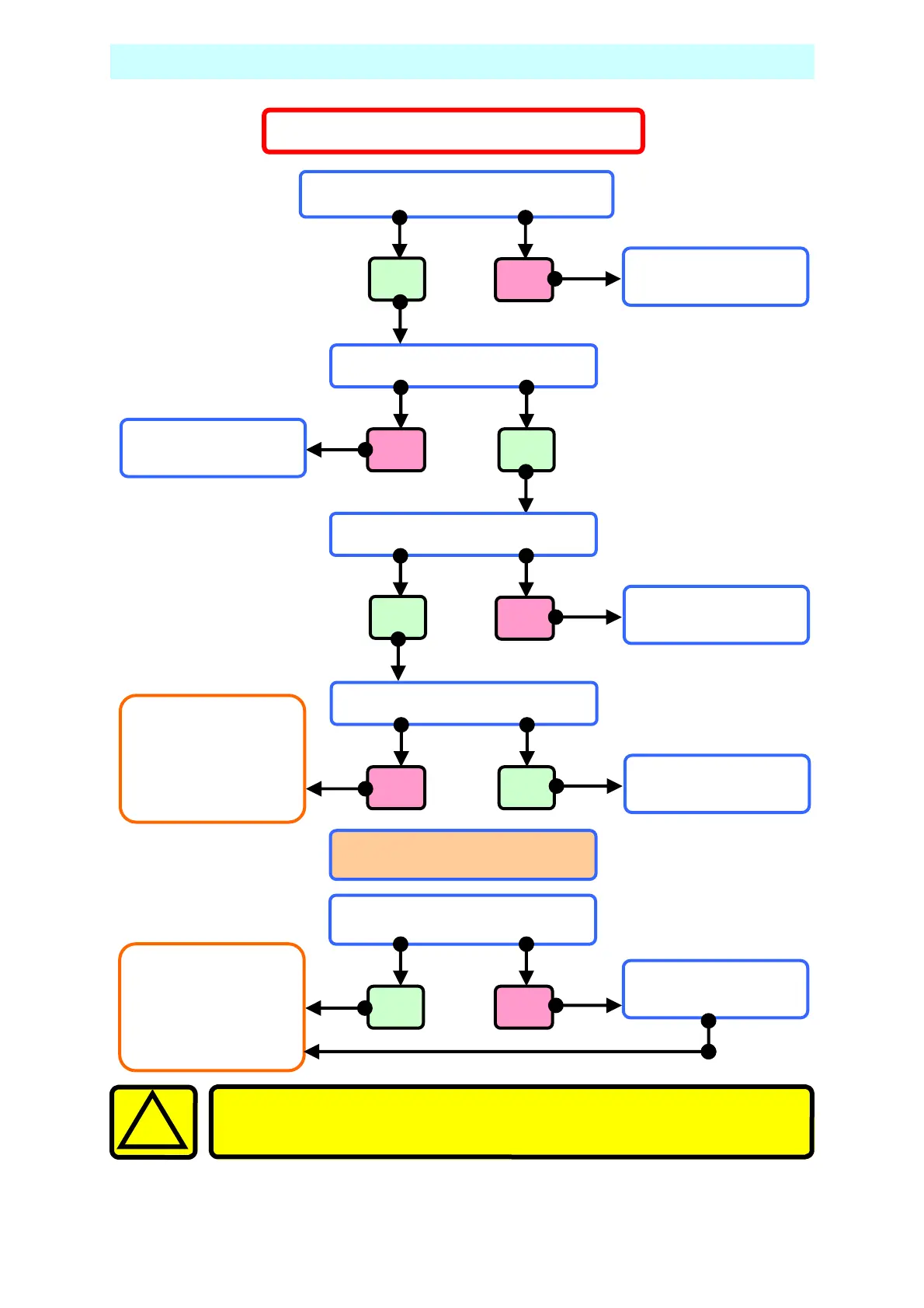

FAULT FINDING MATRIX
