AXLE ASSEMBLY
2
34
1
There are two kinds of brake assembly fitted to the TL37 axle.
To identify the brake assembly that you have you must look at the back of the
drop arm. If you see a large plastic cap (item 3 page 1.6) covering the fixing
nut (item 4 page 1.6) then you have a Euro style brake assembly. If these
afore mentioned items are not present then you have a Compact style brake
assembly. This compact type uses an allen head bolt to secure the stub axle
to the drop arm. See pages 1.6 &1.7 for further parts information.
If there is any damage to the brake back plate or stub axle, the complete axle
must be then returned for servicing. These two parts are not supplied loose.

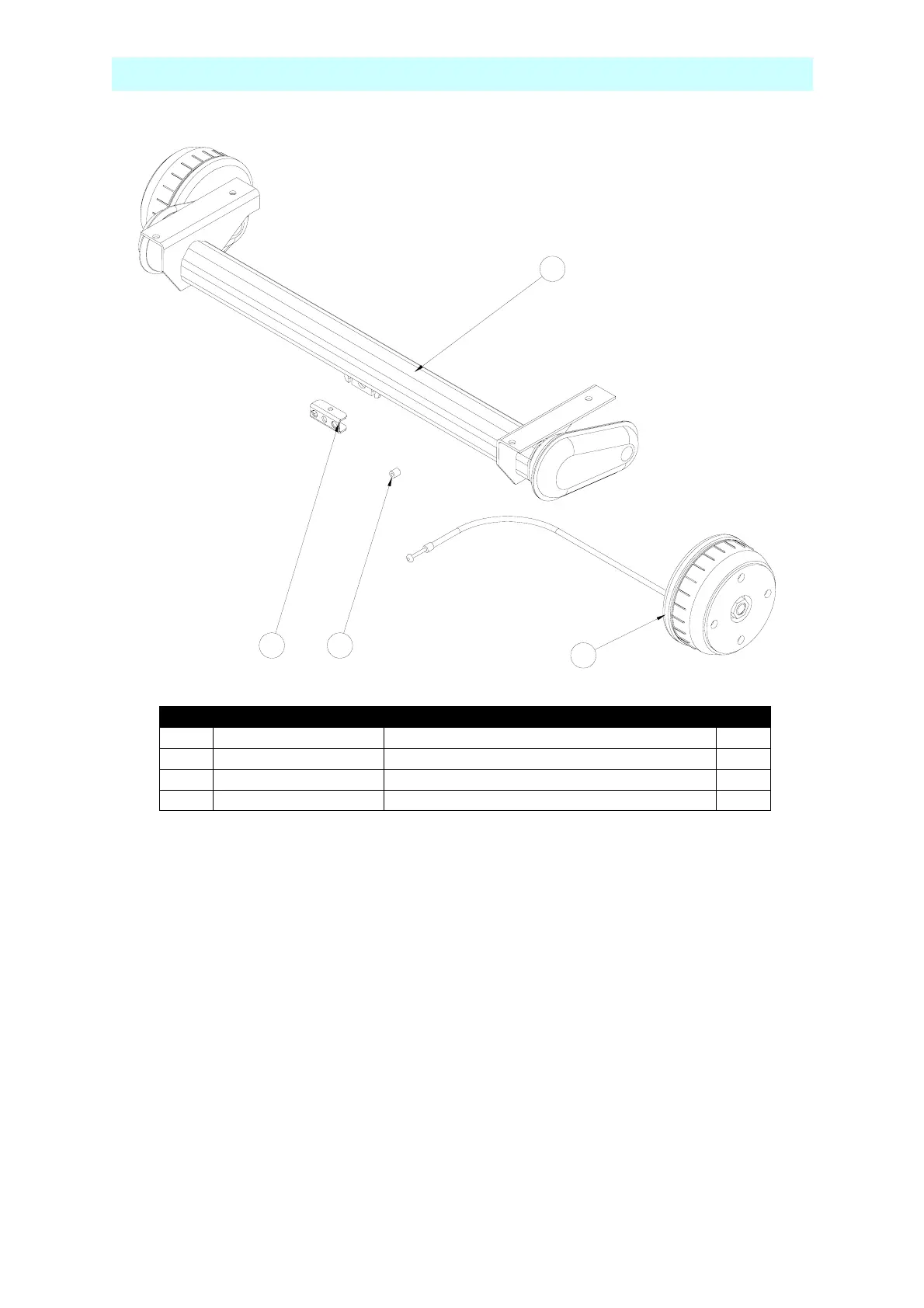

No. Part No. Description Qty.
1 25-0316 MAIN AXLE COMPLETE WITH BRAKE 1
2 SEE PAGES 1.6 & 1.7 BRAKE ASSEMBLY 2
3 25-0322 COMPENSATOR FERRULE 1
4 25-0316-9 COMPENSATOR 1
