Upright TL37 - Outrigger Ram

17
1
3
2
8
7
4
9
10
6
5

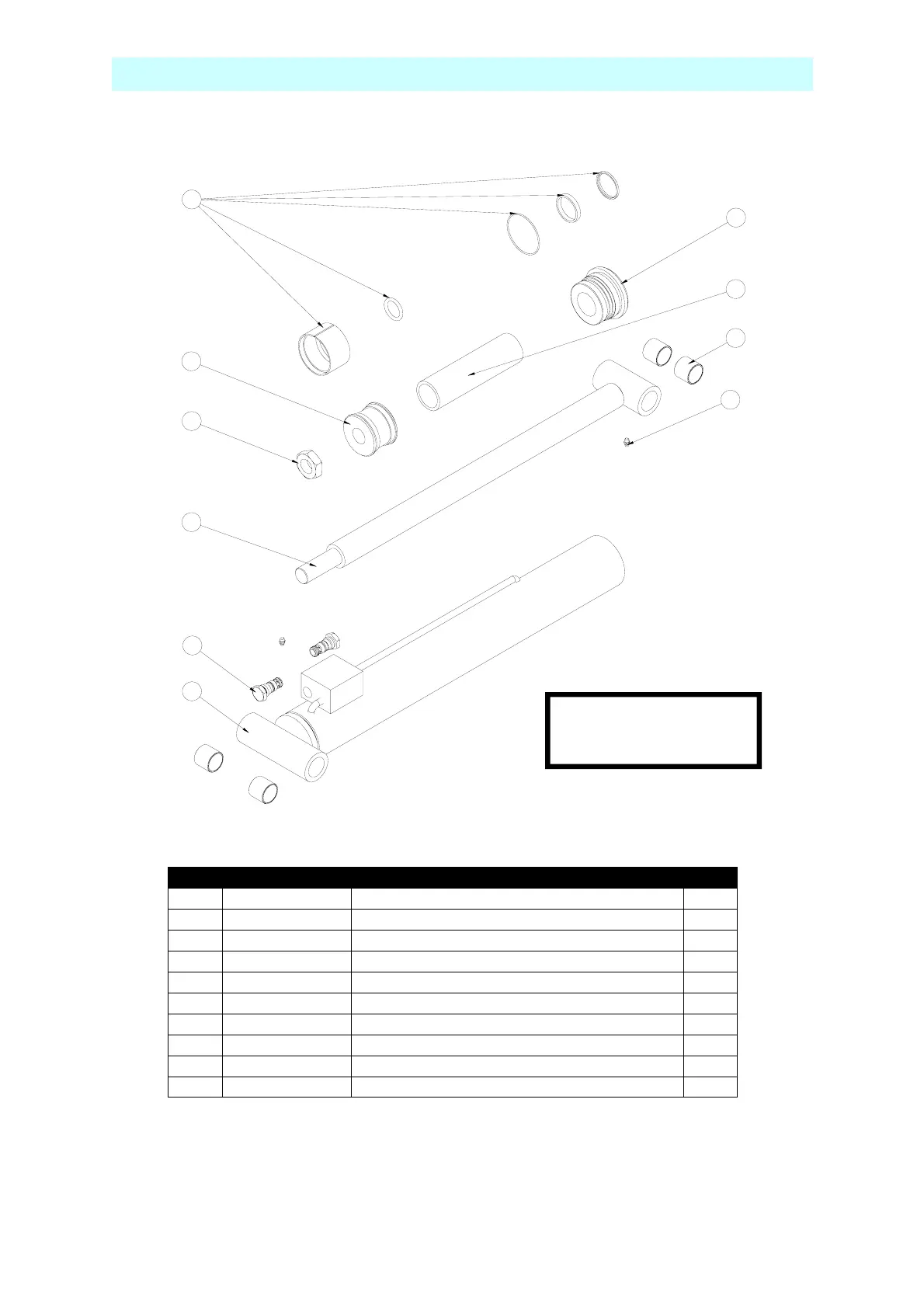

OUTRIGGER RAM - 508180-000
PLEASE GIVE MACHINE
SERIAL NUMBER WHEN
ORDERING NEW RAMS
No. Part No. Description Qty.
1 13-2351 SEAL KIT 1
2 13-1007 PISTON 1
3 13-1049 LOCKNUT 1
4 13-2408-1 ROD ASSEMBLY 1
5 13-2483 CHECK VALVE 2
6 13-2408-2 TUBE ASSEMBLY 1
7 13-2437 HEAD BUSH 1
8 SS-0400180 RAM SPACER 1
9 SB-030030 BUSH 4
10 14-0001 GREASE NIPPLE 2
