LEVEL GAUGE
The level gauge used for setting up the machine
is located next to the outrigger control valve
block. If the level is damaged or has been
removed do not use the machine until a new
level has been fitted.
The reference point (datum) for the level is the

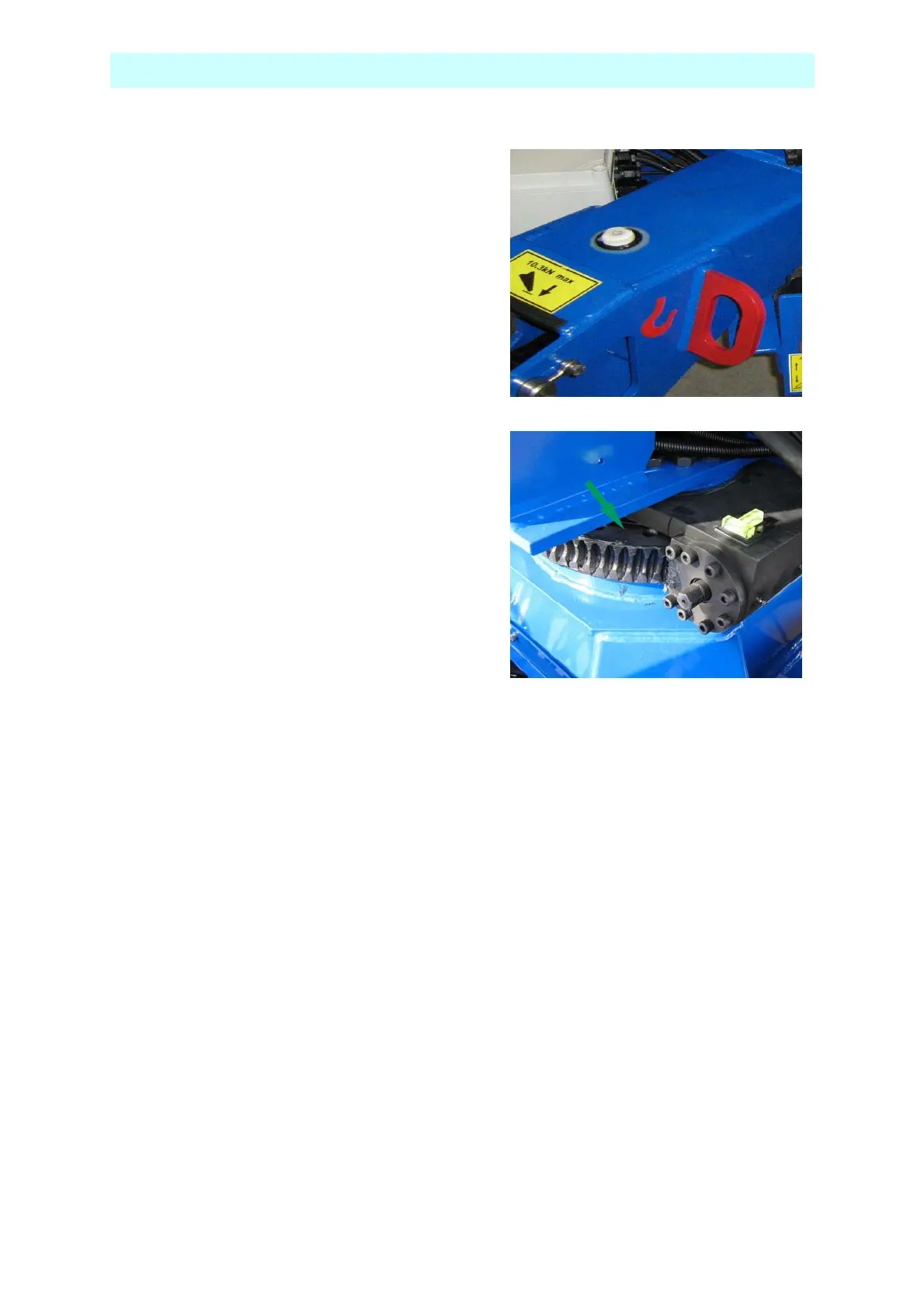

top face of the slew ring. Photograph shows an
engineer’s level set on the machine so that the
slew ring can be set absolutely level.
MAINTENANCE PROCEDURE
To Next Page
