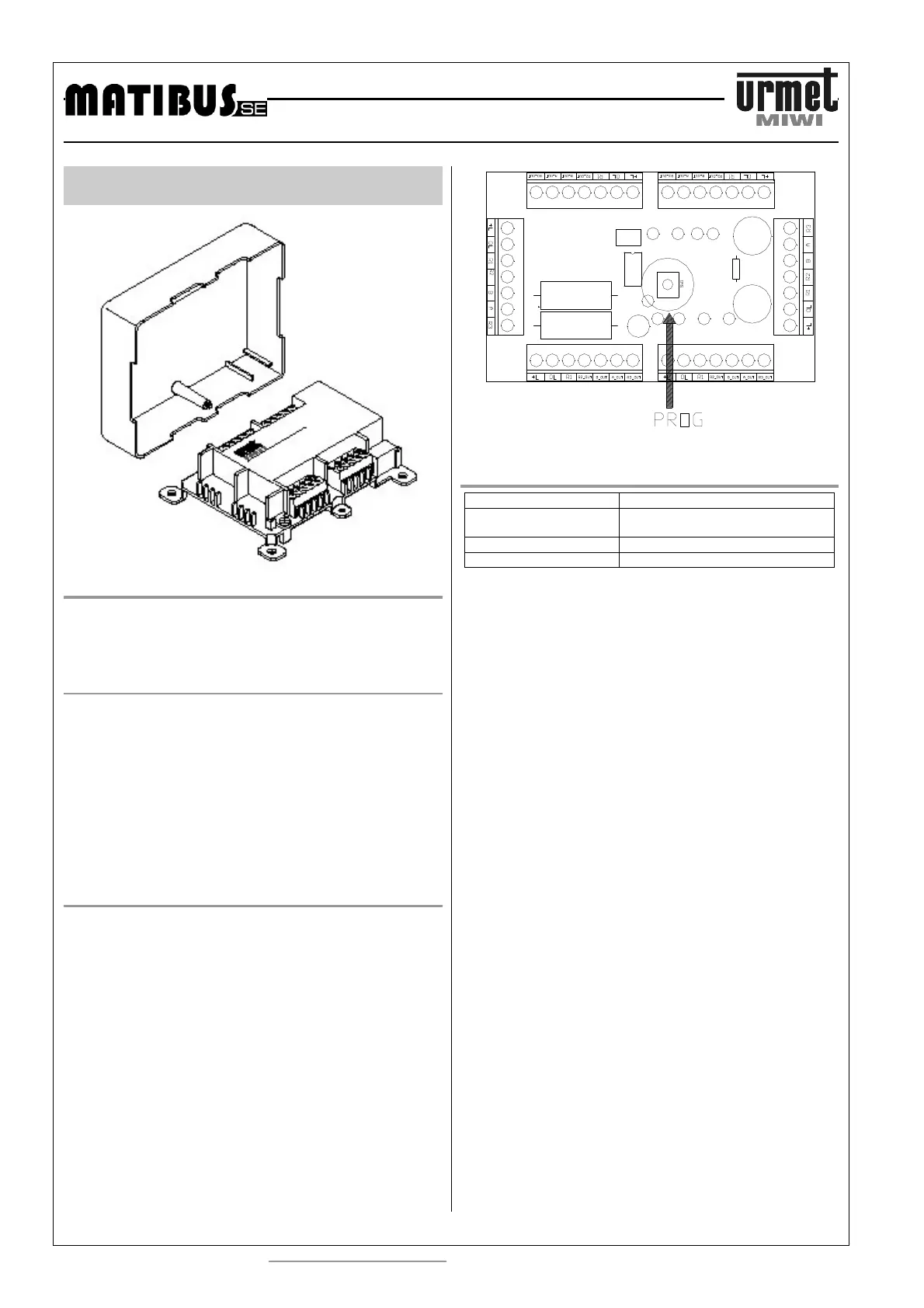

VIDEO DISTRIBUTOR REF. 1752/54
http://www.miwiurmet.com.pl e-mail:miwi@miwiurmet.com.pl
64
VIDEO DISTRIBUTOR
REF. 1752/54
INFORMACJE OGÓLNE
Video distributor is dedicated to MatibuSE video system, for UTP
video signal line (without COAX cable). The distributor is provided
with 4 independent outputs, plus one through output.
DESCRIPTION OF TERMINALS BOARD
A Video signal.
B Video signal.
R1 Power input (GND).
R2 Power input (positive).
0L Data line (GND).
+L Data line.
R3 Camera activation.
A_OUT Video line outputs.
B_OUT Video line outputs.
R2_OUT Power positive outputs.
R3_OUT Camera activation outputs.
PROGRAMMING
Video distributor ref. 1752/54 is activated only if one of the
connected to them monitors is called.
Programming procedure for each video distributor:
1. Press PROG button.
2. Red LED will turn on
3. Make a call to one of the monitor connected to relevant
distributor.
4. Wait until camera’s image appears and disconnect
conversation. One of the distributors outputs is already
programmed
5. Make a call to other monitors connected to relevant distributor.
6. If distributor serves one, two or three monitors, Press PROG
button to exit programming mode (LED turns off). If all outputs
are in use (distributor serves 4 monitors) and programmed
device leaves programming mode automatically.
WARNING !! Before start programming procedure, make sure that
all brackets are configured properly and have set physical
address.
To delete all outputs: double press PROG button.
TECHNICAL SPECIFICATION
Power voltage 18 - 20 V DC
Consumption in stand by
mode:
15 mA
Consumption 150 mA
Dimension (WxHxD) 95 x 64 x 28 mm
In large installation with a lot of distributors keep in mind do
not exceed current load of power supply.
