2.3.4. Baud Rate Synchronization
When module works with USR devices or software, serial parameter will change dynamically according to
network protocol. Customer can modify serial parameter by sending data conformed to specific protocol via
network. It is temporary, when restart DTU, the parameters back to original parameters.
User can adopt Baud Rate Synchronization function by setup software or web server as follows:

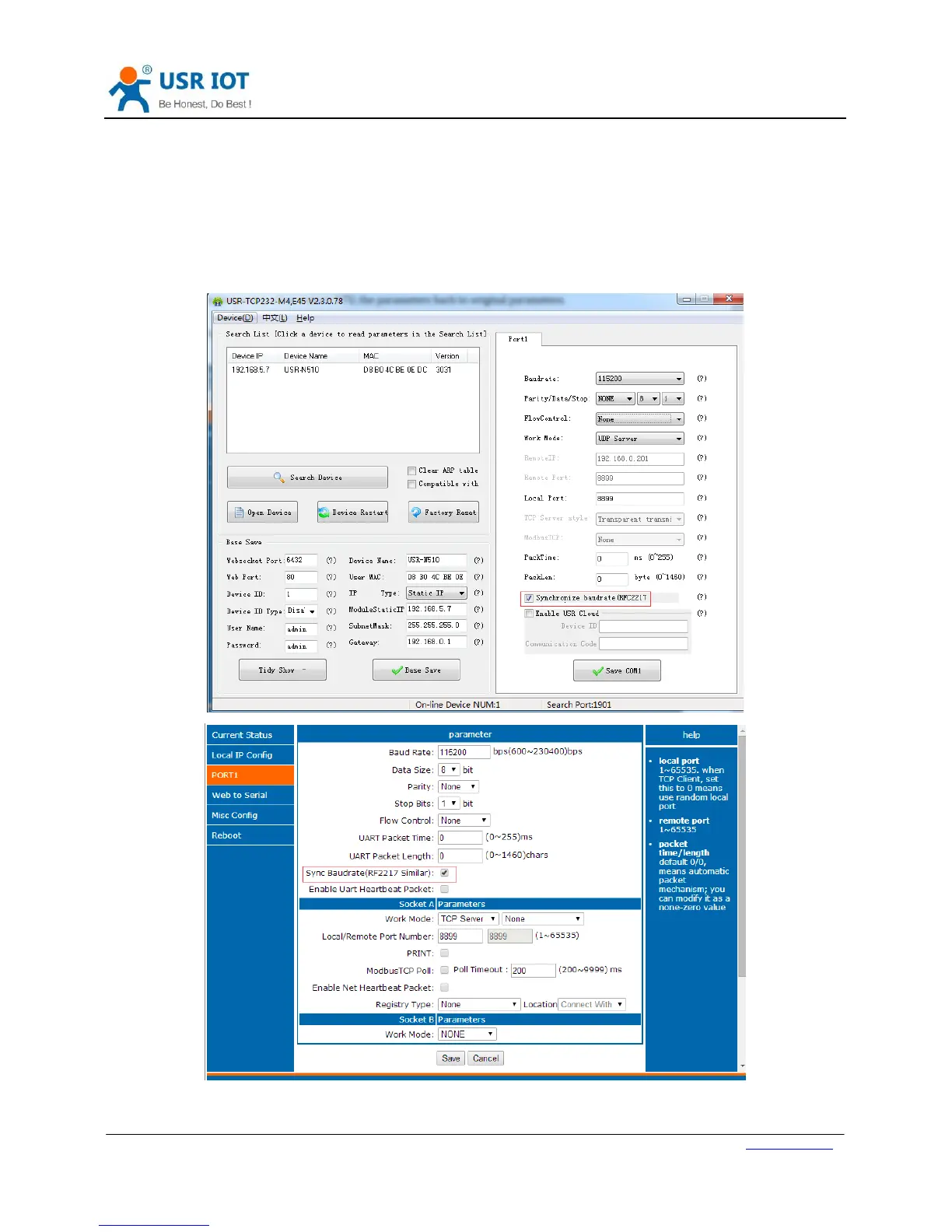

Figure 18 Baud Rate Synchronization
