2.4.4. Modbus Gateway
Modbus Gateway include: Modbus RTU transparent transmission, Modbus ASCII transparent transmission,
Modbus RTU<=>Modbus TCP protocol conversion, Modbus polling and serial port query.
Modbus RTU<=>Modbus TCP: Set N510 in TCP Server or TCP Client mode, then user can set N510 with Modbus
RTU<=>Modbus TCP function by setup software or web server as follows:

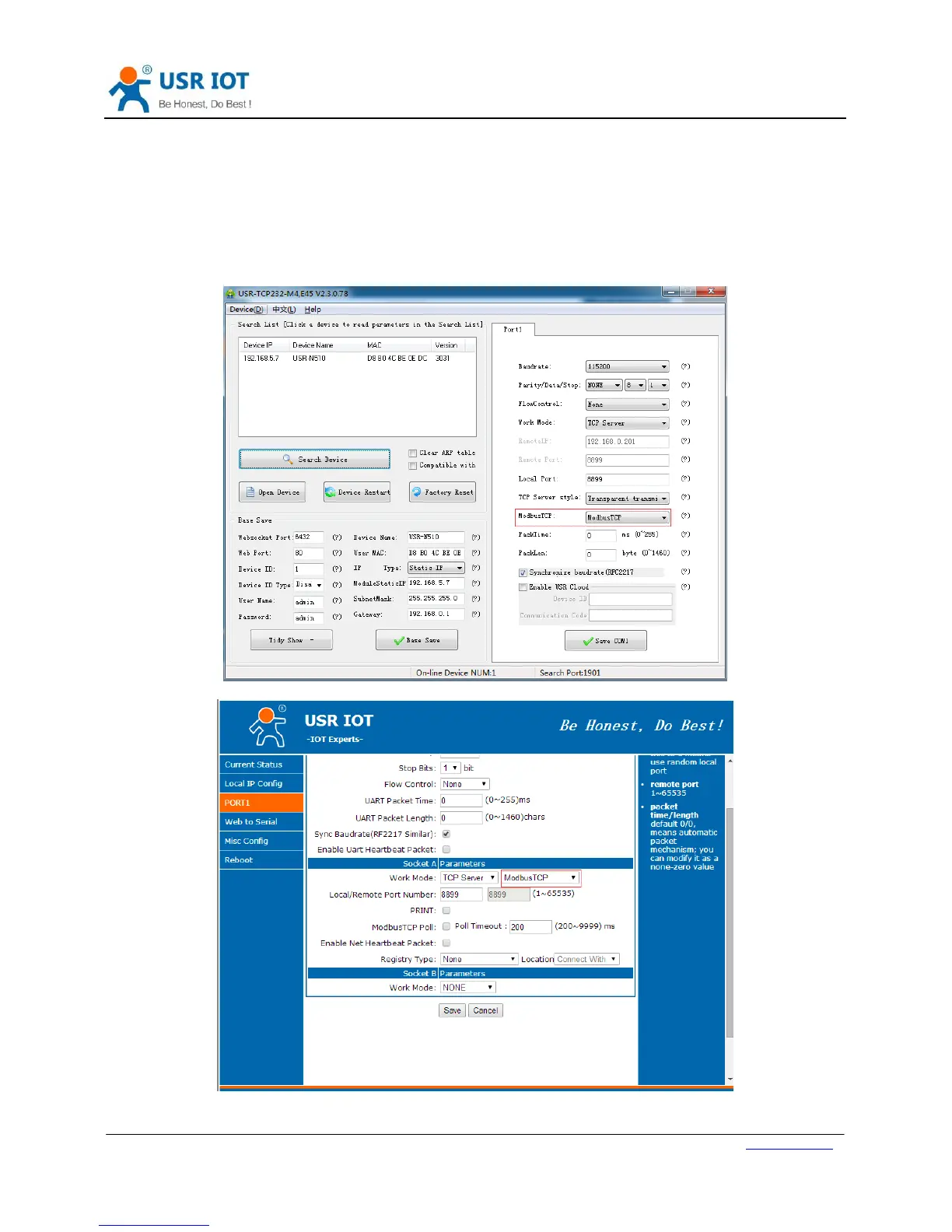

Figure 23 Modbus RTU<=>Modbus TCP
