USR IOT USR-TCP232-302 User Manual

USR-TCP232-302 User Manual h.usriot.com
Jinan USR IOT Technology Limited www.usriot.com
39
/ 53

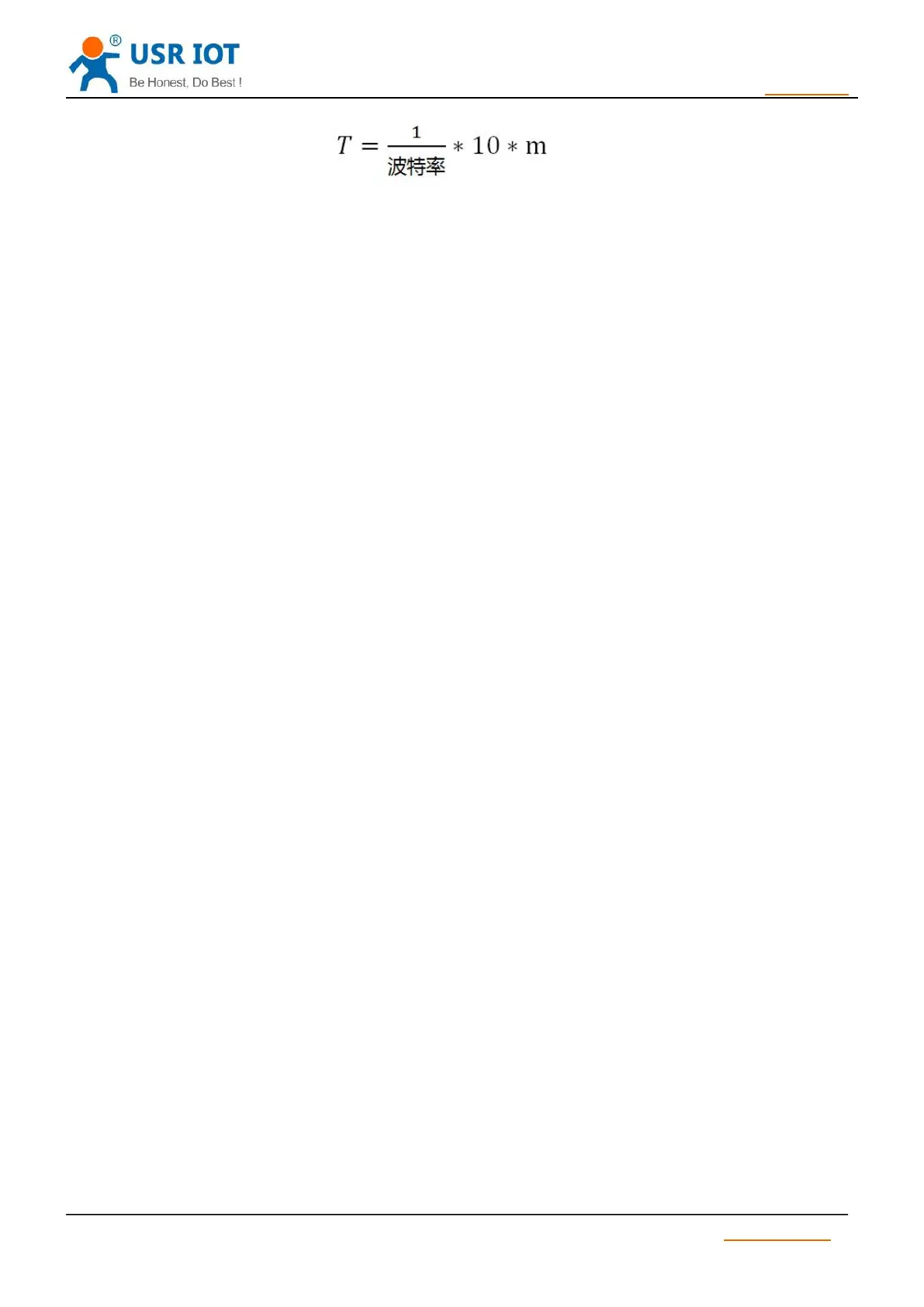

If n> 2T ,data won’t overflow, TCP232-302 work well.
4. Parameter Setting
Parameter setting can be done by webpage and software.
1)TCP232-302 connects PC by LAN （TCP232-302 IP and PC IP should in the same network segment）
2)TCP232-302 connects PC by Router. Under this situation ,one PC can connect several TCP232-302
or one TCP232-302 can connect several devices.
4.1. Webpage Setting
Parameters need to be set:
1) Work Mode
◆TCP Client/ TCP Server/ UDP Client/ UDP Server
2) TCP/UDP parameter:
◆Connection Type : Server/ Client / HTTPD Client
◆Remote Port and IP
◆Local Port
3) Serial Parameter
◆Baud rate/Data bit/ Check bit/ Stop bit
◆RS485
4) IP and Server setting
Note : After setting parameter, please save and restart.
4.2. Log in
Open a browser, type 192.168.07 , Name and password：admin
User can also log in by software.

USR IOT USR-TCP232-302 Specifications

General

Brand	USR IOT
Model	USR-TCP232-302
Category	Media Converter
Language	English
