Usr TCP232-E - WEB to Serial Mode

Multifunctional serial to Ethernet module user manual www.tcp232.net
Jinan USR IOT Technology Co., Ltd freda@usr.so
Page 13 /
/
/
/ 9

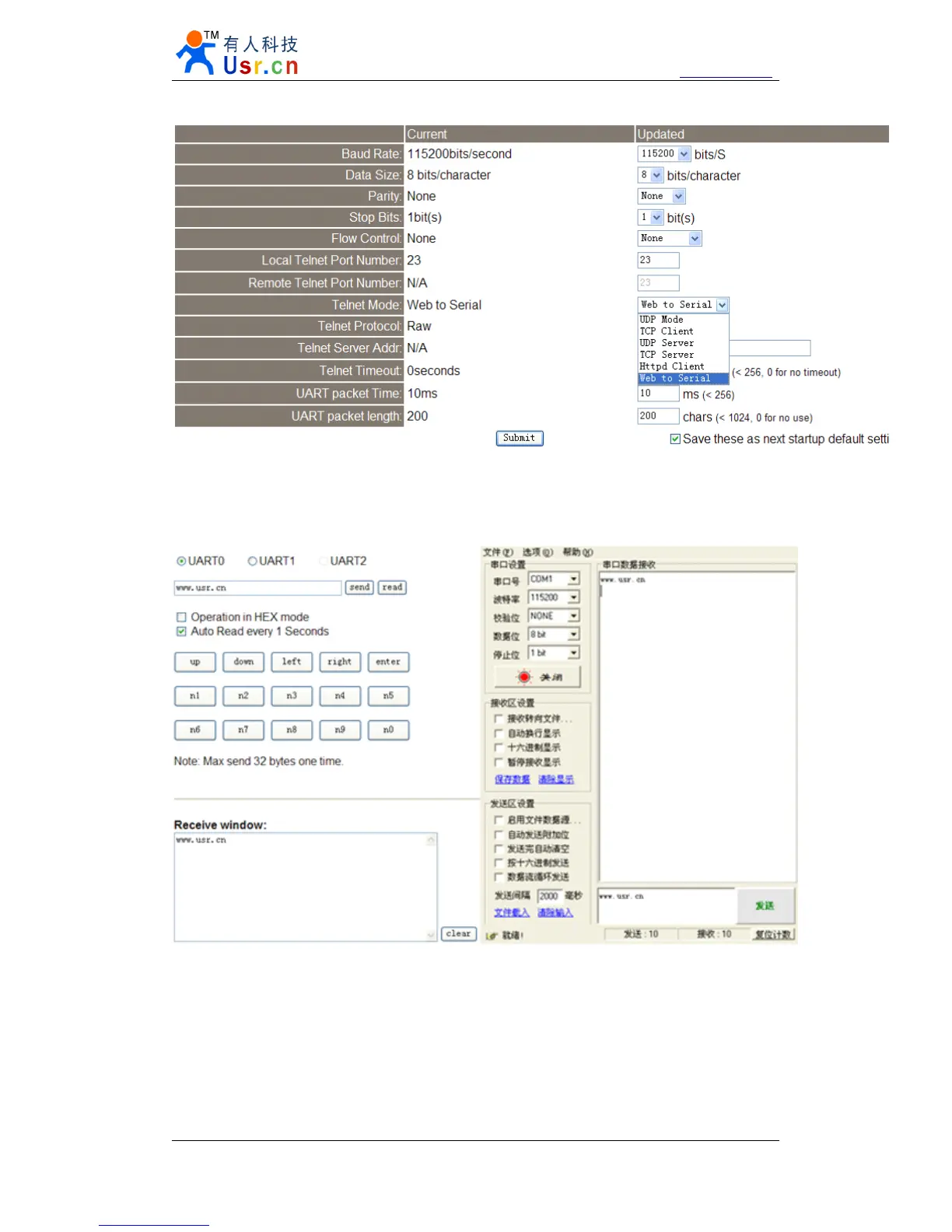

Diagram 2 - 14 config module to WEB to Serial mode
Select Telnet mode Web to Serial ，
Diagram 2 - 15 WEB to Serial communication demo
Note:
1 、 received window show data only when click on “ read ” button or select “ Auto read ” button.
2 、 whether WEB to Serial mode or not, send web data to serial always work.
