RS422 interface also connected to RS232 nine needles binding post. The device have RS232
and RS485 interface, but can only use one in a time, autoadaptation, connect as RS485 is RS485
function, connect as RS422 wiring is RS422 function.
3.3.
3.3.
3.3.
3.3. USR-TCP232-500
USR-TCP232-500
USR-TCP232-500
USR-TCP232-500
3.3.1.
3.3.1.
3.3.1.
3.3.1. Hardware
Hardware
Hardware
Hardware

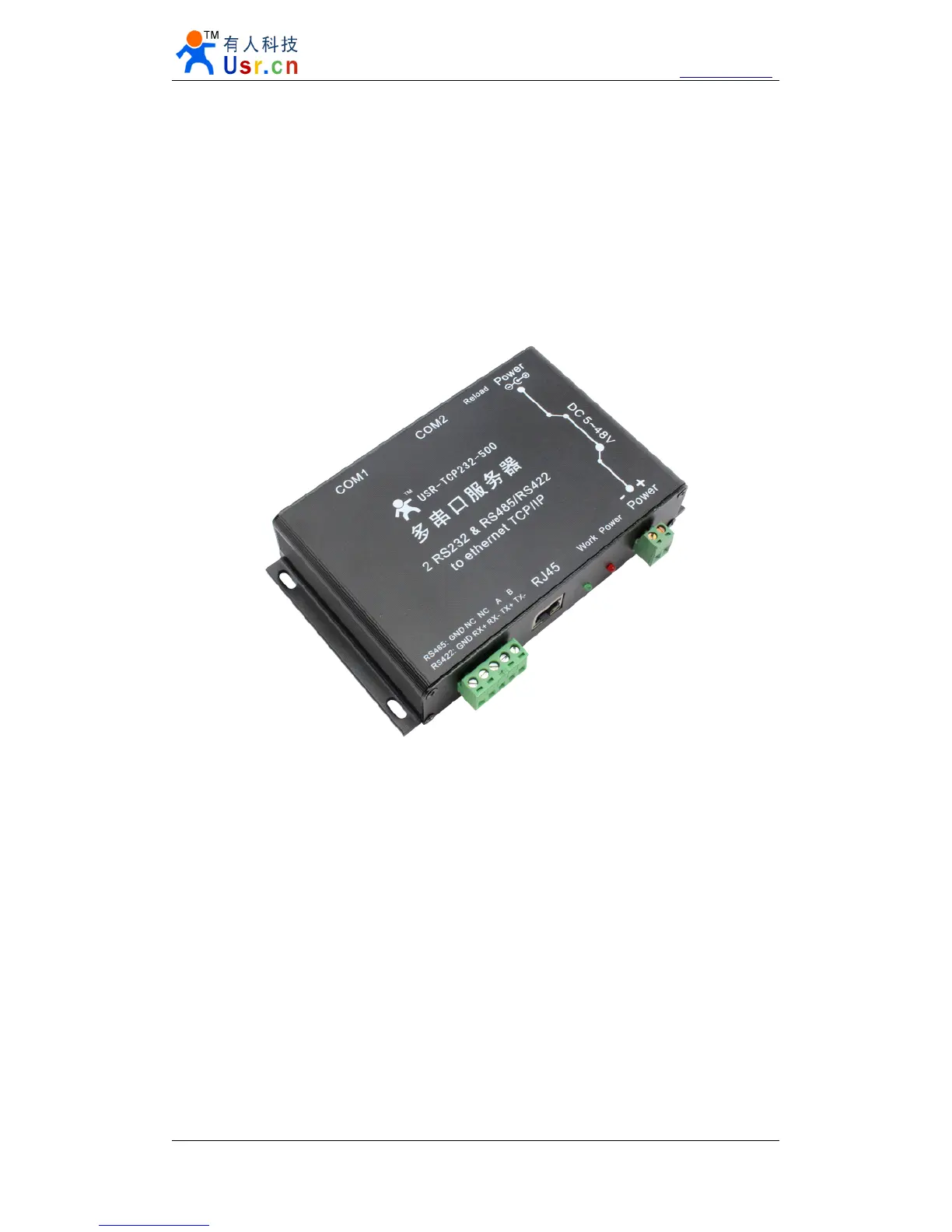

Diagram 3 - 7 USR-TCP232-500
3) Mechanical dimesion : ( L × W × H): 155 × 100 × 34 (mm) , including RJ45 and connector;
4) PCB dimension (L × W): 130.5 × 90.2 (mm) ;
5) +5 ~ +48V power input;
1) DC power plug, 5.08 connector power input
6) 3 * serial(2 * RS232, 1 * RS485/422)
7) 2 * RS232 support hardware flow control
8) 1 * RS485/RS422
9) Specific: PIN 9 of the RS232 DB9 can connect to power for special uses.
3.3.2.
3.3.2.
3.3.2.
3.3.2. Power
Power
Power
Power
This system has three power supply interface, a power hub, a 5.08 terminal, pin 9 of the two
serial com (through the PCB jumper short circuit, default closed).
