USSC 5660 - Insert Pellet Stove Installation

25
INSERTPELLETSTOVEINSTALLATION

U.S.StovePelletBurningRoomHeatersarealsoavailableasaninsertintoexistingmasonryoffactory‐built
fireplaces.Donotaltertheexistingfireplaceinanywayeitherbyremovingbricksandmortarwhichcould
weakenthestructuralintegrityofthefireplace.Thereisasmallamountofassemblyrequiredwheninstalling
thismodel.Thestepsareasfollows:

Note:Theshroudmustbeinstalledbeforeunitissetintoitsfinalposition.


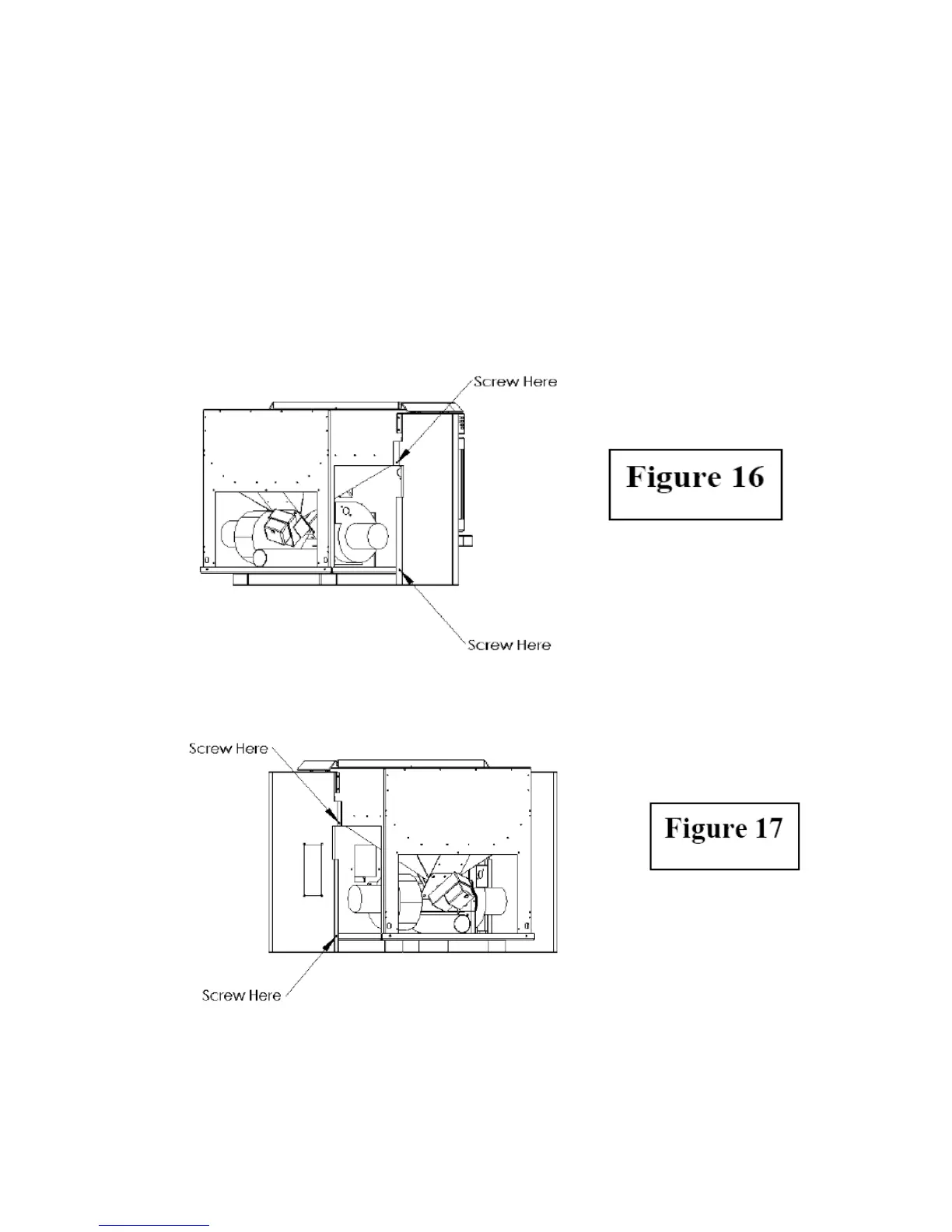

Step1:ShroudSide:Facingthebackoftheunittaketheleftshroudsidepiece(nocontrolpanelhole)andfasten,as
shown,with2screwsprovided.



Step2:ShroudSide:Facingthebackoftheunittaketherightshroudsidepiece(withcontrolpanelhole)andfasten,as
shown,with2screwsprovided.



