2DA/2DB
1-1-3

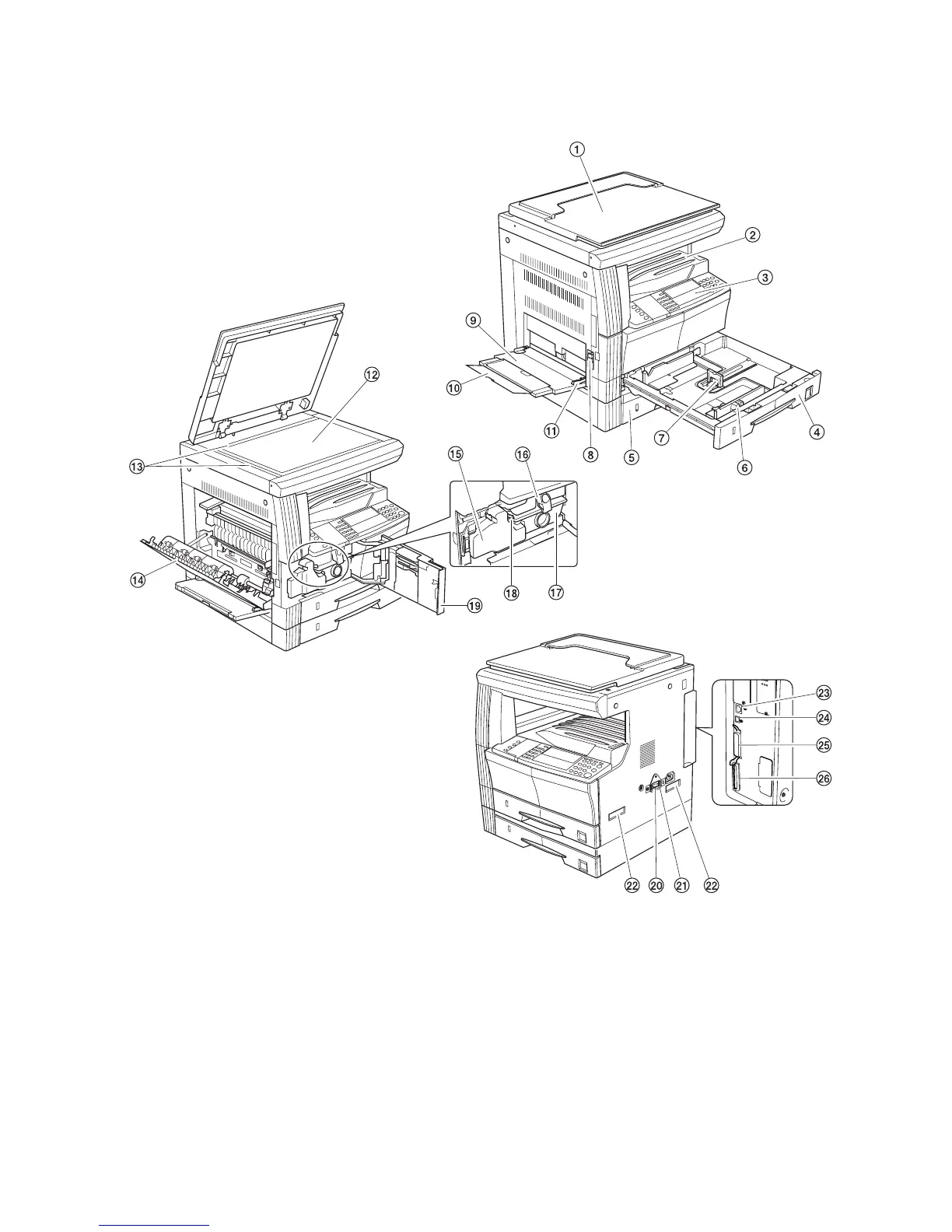

Figure 1-1-1
1-1-2 Parts names and their functions
(1) MFP
1 Original cover
2 Copy storage section
3 Operation panel
4 Drawer 1
5 Drawer 2 (20 ppm model only)
6 Width guide
7 Length guide
8 Left cover handle
9 Bypass tray
0 Support guide
! Slider
@ Contact glass
# Original size indicator plates
$ Left cover
% Waste toner box
^ Toner container release lever
& Toner container
* Cleaner rod
( Front cover
) Power switch
⁄ Power switch cover
¤ Handles for transport
‹ Network interface connector
› USB interface connector
fi Parallel interface connector
fl Memory card slot
