2DA/2DB-1
1-6-7

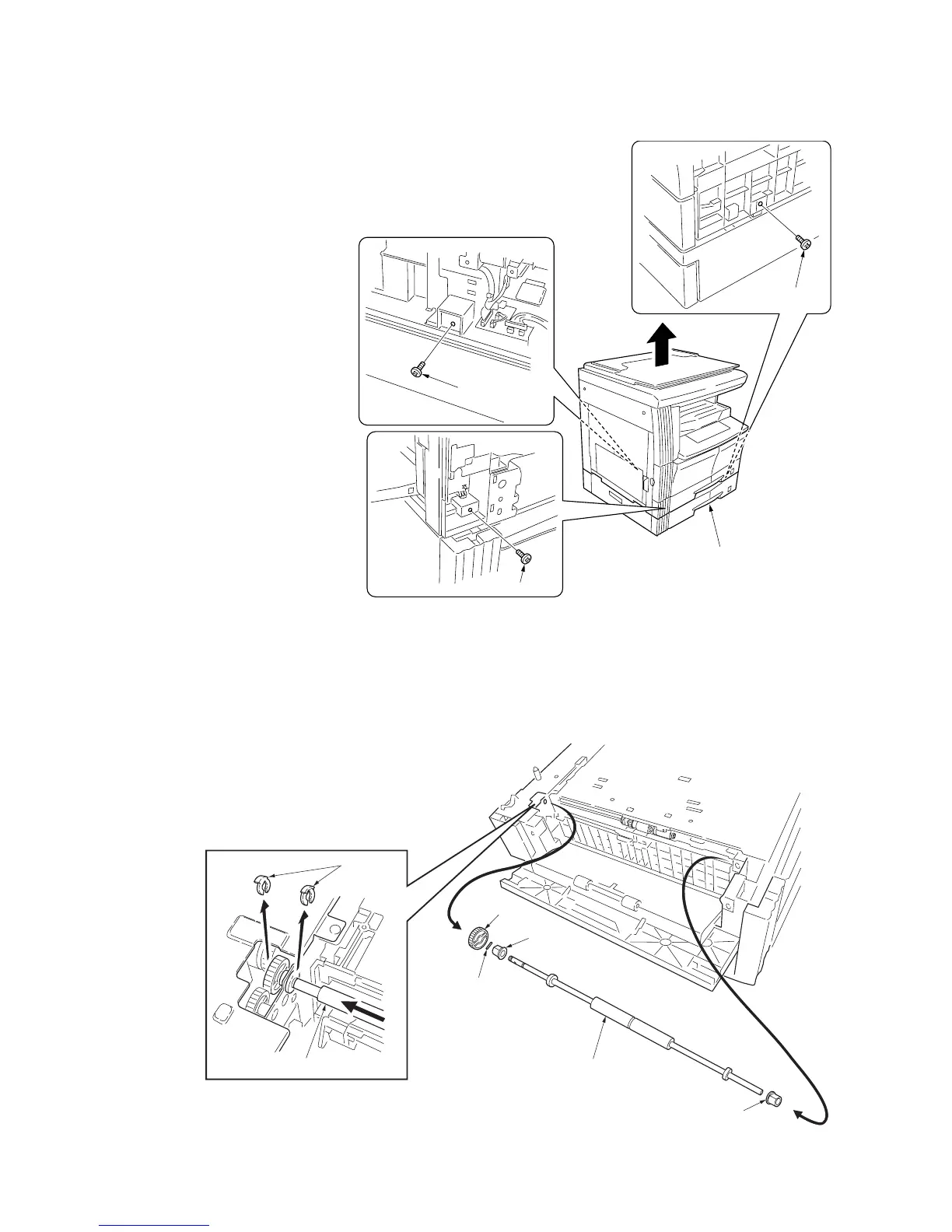

(3) Detaching and refitting the feed roller (20 ppm model only)
Follow the procedure below to replace the feed roller.
Procedure
1. Remove the rear cover, right cover and front
left lower cover.
2. Remove the three screws and then remove
the main body from the paper feeder.
Gear
Spring pin
Feed roller
Bushing
Bushing
Feed roller
Stop rings
Figure 1-6-10-2
Screw
Paper feeder
Screw
Screw
3. Open the drawer left cover.
4. Remove the two stop ring, gear and spring
pin from rear side of the feed roller.
* When removing the gear, take care not to
lose the spring pin.
5. Slide the bearings in the front and rear of the
feed roller toward the inside, push the feed
roller once into the rear side of the machine,
and then remove it from the paper feeder.
6. Remove the two bushing from front and rear
side of the feed roller.
7. Replace the feed roller and refit all the
removed parts.
Figure 1-6-10-1
