1-3-22
2DA/2DB
1-3-8 Installing the finisher (option)
<Note>
When placing the transfer unit on the floor or the like, be
sure to place it upside down. If not, the staple mounting
plate may be deformed, resulting in a malfunction.
Be sure to remove the tape for the intermediate tray at
Procedure 16 not removing before mounting.
<Procedure>
Remove the covers.
1. Remove the two screws to remove the upper left
cover.

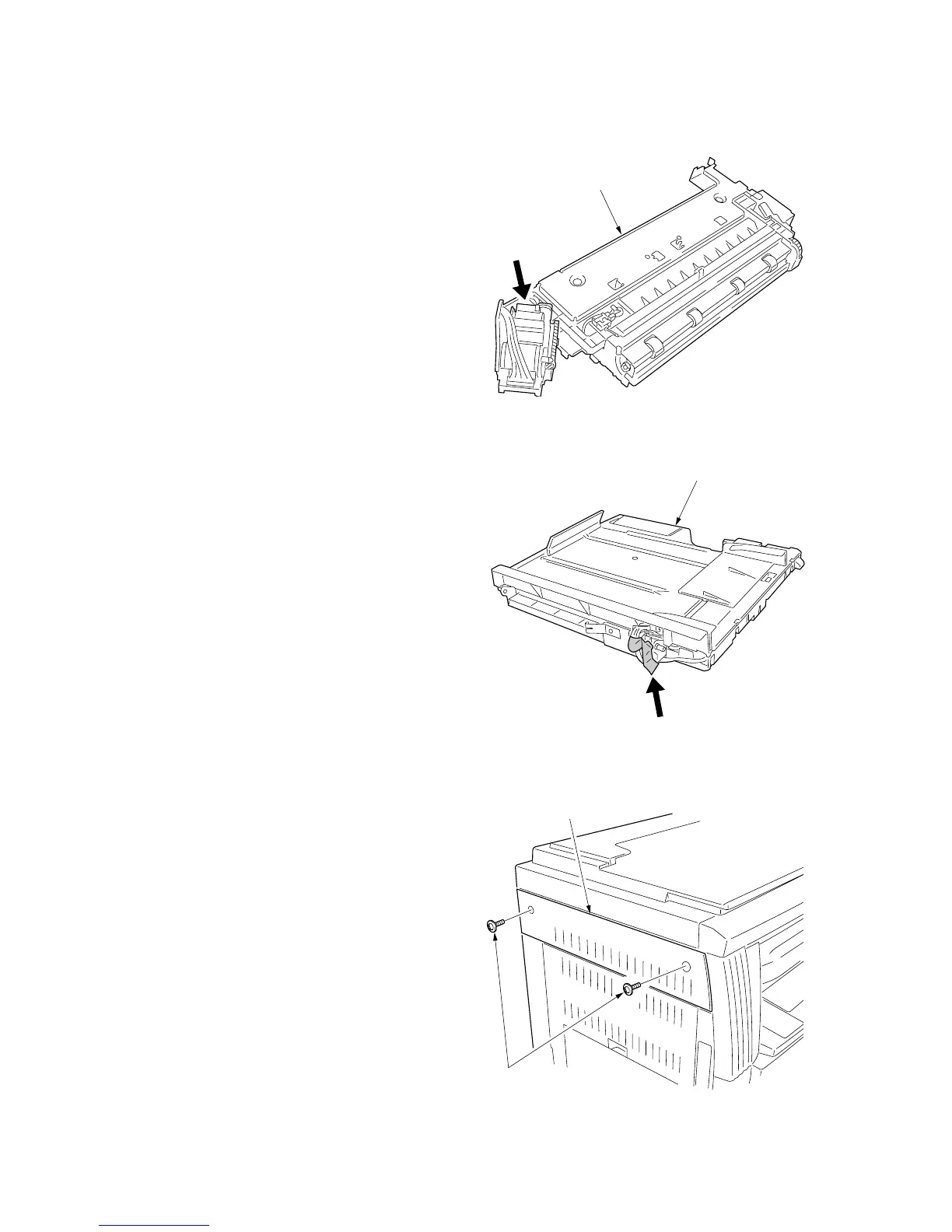

Transfer unit
Intermediate tray
Upper left cover
Screws
Figure 1-3-35
Figure 1-3-36
Figure 1-3-37
To Next Page
