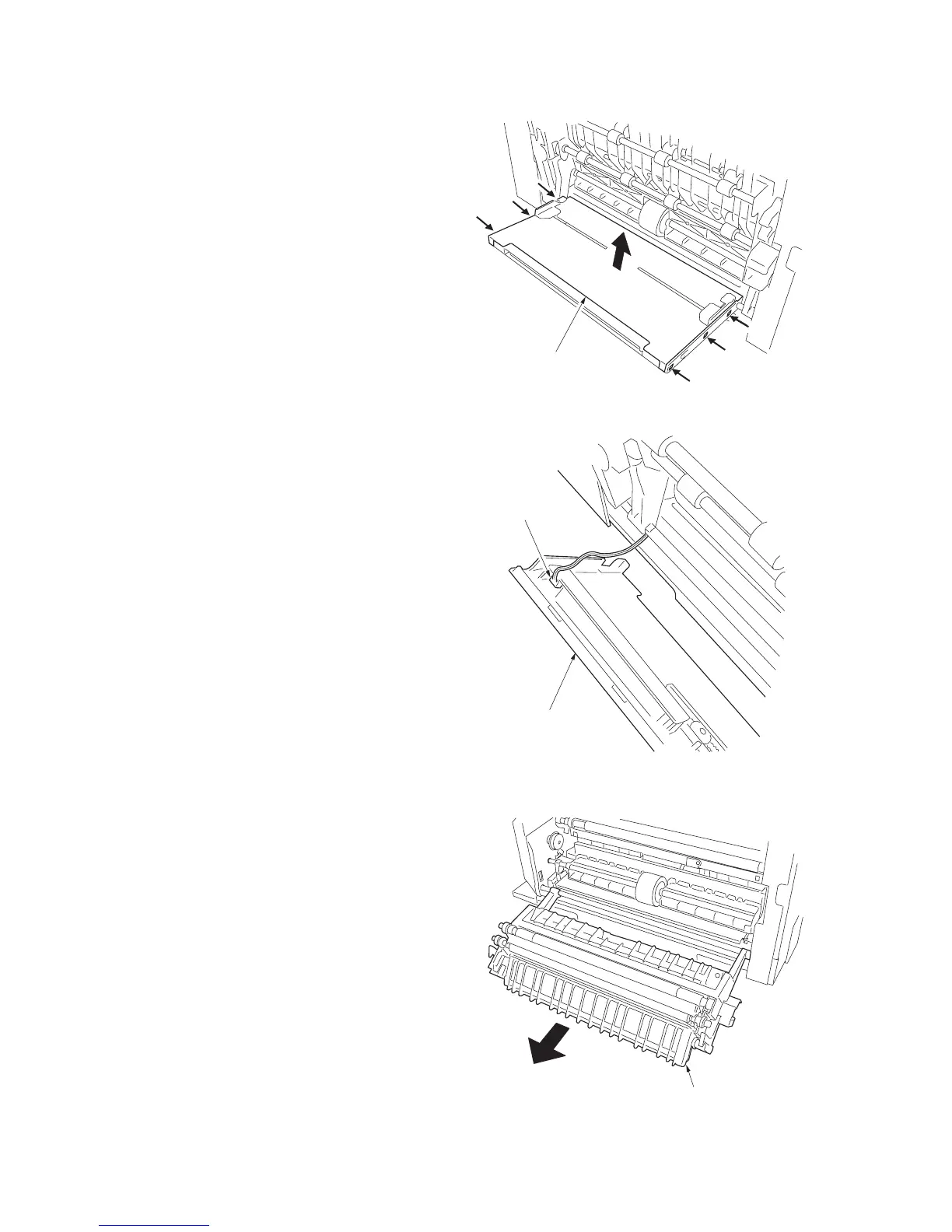

6. Push the fitting portions of the bypass upper
cover. Remove the bypass upper cover from
the bypass unit.
Bypass upper cover
Bypass lower cover
Connector
Paper conveying unit
Figure 1-6-21
Figure 1-6-20
Figure 1-6-19
7. Detach the connector and remove the bypass
lower cover from the MFP.
8. Remove the paper conveying unit from the
MFP.
