5. Remove the four pins holding the scanner
unit and then the unit.
6. Remove the screw holding the exit cover and
then the cover. Remove the two screws
holding the inner rear cover and then the
cover.
7. Remove the front and rear left cover.
Scanner unit
Pin
Pin
Pin
Pin
Front left cover
Rear left
cover
Inner rear cover
Exit cover

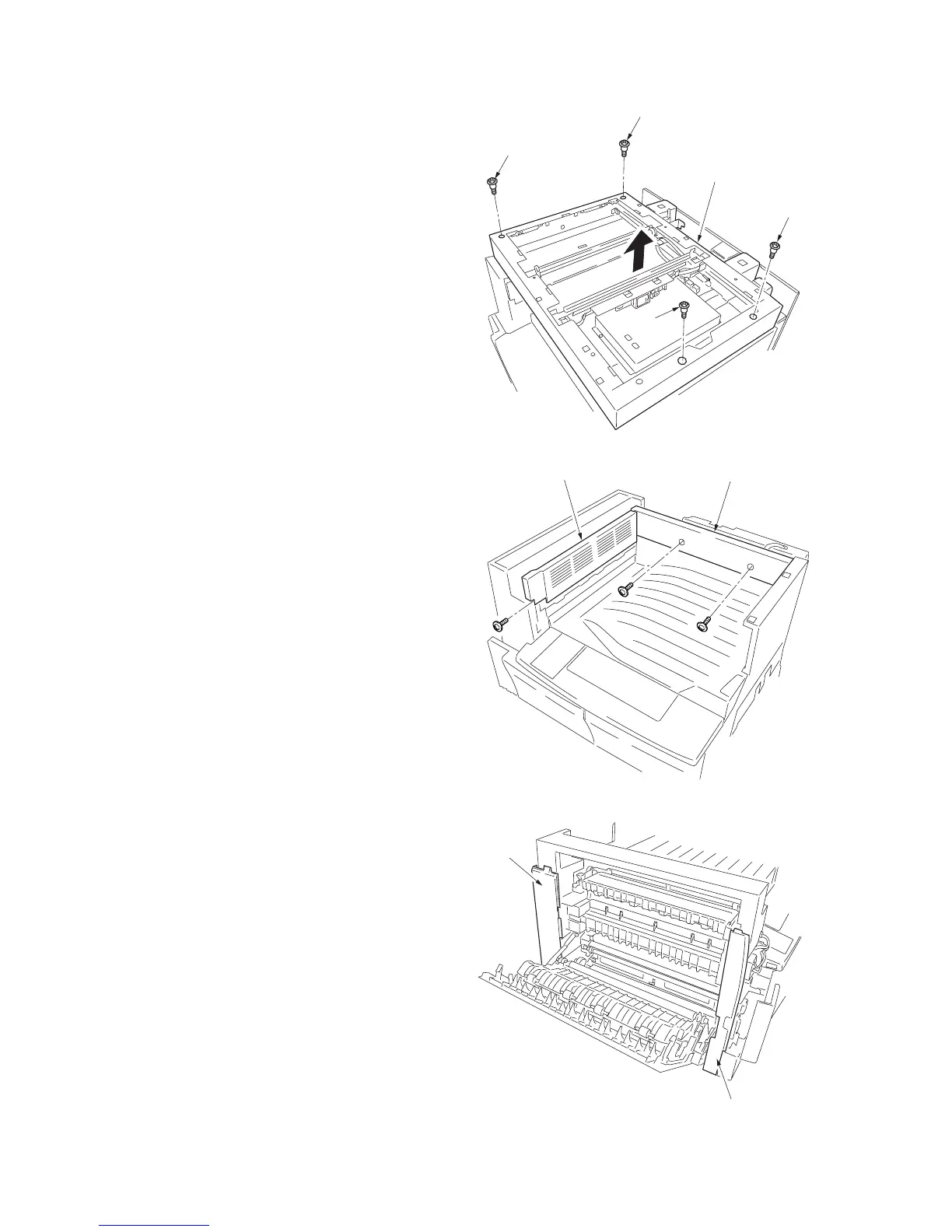

Figure 1-6-56
Figure 1-6-57
Figure 1-6-58
