Utax P-4030 MFP Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-4-95

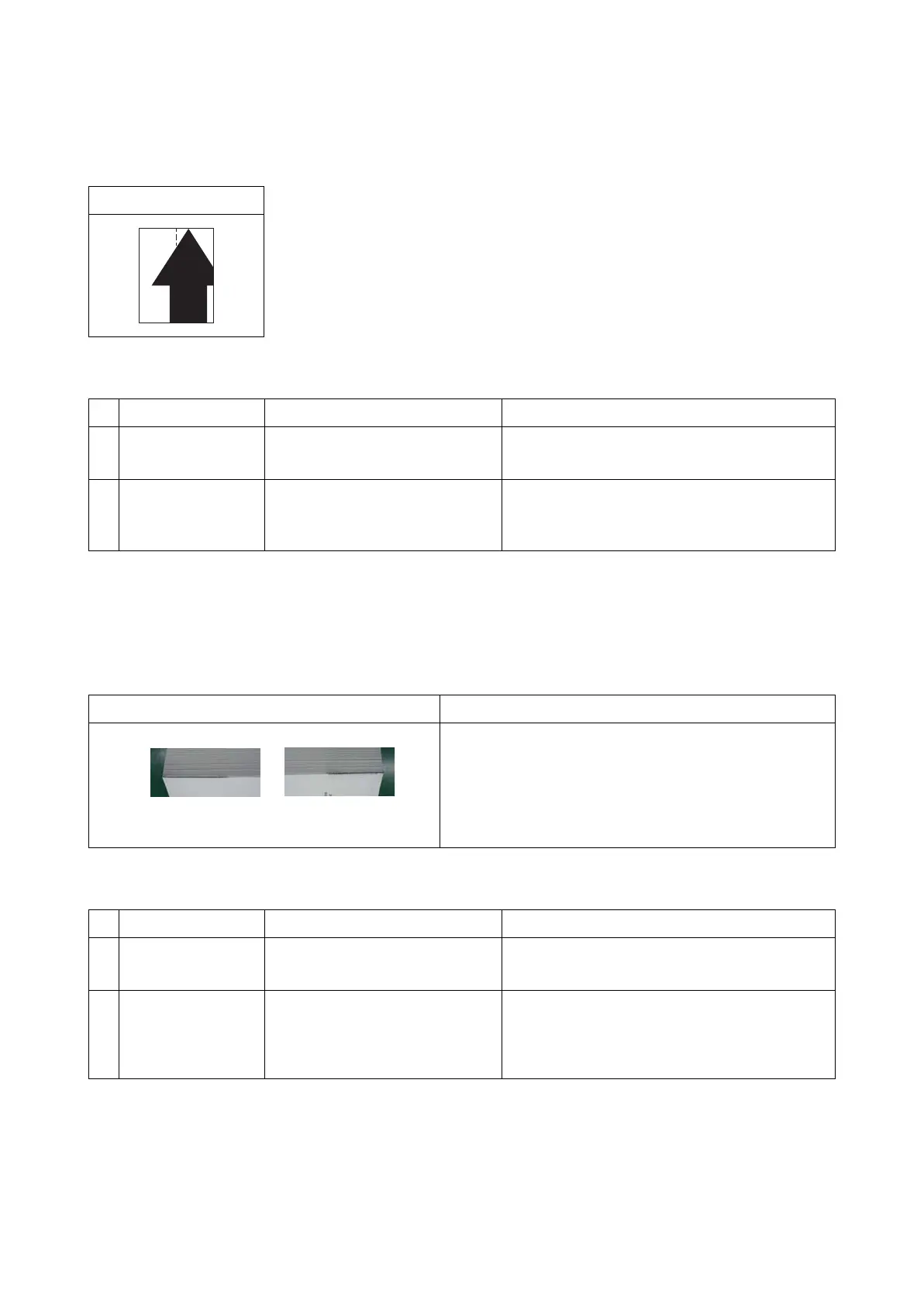

(21) Image center does not align with the original center.
(22) Dirty paper edges with toner.
Print example
Defective part Check description Corrective Action
1
Paper setting Check if paper is set correctly. Reload paper if the paper was not loaded
correctly.
2
Image position
adjustment
Excute U034 to check the center
alignment during writing images.
Perform adjustment if the value of U034 Center
Line Adjustment is inadequate.
(see page 1-3-24)
Print example Cause of trouble
1. Toner scattering due to an internal temperature
increase.(Developer unit)
Defective part Check description Corrective Action
1
Conveying guide Check if the conveying guide is
dirty with toner.
If the conveying guide is dirty with toner, clean
the developer unit and the cooling ducts.
2
Internal tempra-
ture increase
(Developer unit)
Check the device has been used
for printing a large amount of
data or for printing in duplex
mode with a high density.
If the device has been used for printing a large
amout of data or for printing in duplex mode
with a high density, clean the developer unit.

Utax P-4030 MFP Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	20 ppm
Copier resize	25 - 400 %
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	40 cpm
Scan to	E-mail, FTP, SMB, USB
Scan drivers	TWAIN, WIA
Maximum scan area	A4 (210 x 297) mm
Scan speed (color)	30 ppm
Image formats supported	JPG, TIF
Duplex scan speed (black)	17 ppm
Duplex scan speed (color)	13 ppm
Document formats supported	PDF, XPS
Faxing	No
Digital sender	-
Printing colors	Black
Maximum duty cycle	- pages per month
Page description languages	Epson LQ, IBM ProPrinter, PCL 5c, PCL 5e, PCL 6, PCL XL, PDF 1.7, PostScript 3
Cabling technology	10/100/1000Base-T(X)
Authentication method	SMTP
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols (IPv4)	TCP/IP
Internal memory	512 MB
Processor model	465S
Processor family	PowerPC
Processor frequency	667 MHz
Paper input type	Cassette
Total input capacity	500 sheets
Total output capacity	250 sheets
Multi-Purpose tray input capacity	100 sheets
Duplex media weight	60 - 120 g/m²
Paper tray media types	Plain paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Product color	Black, Grey
Market positioning	Business
Standard interfaces	Ethernet, USB
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (off)	2.6 W
Power consumption (standby)	53.7 W
Power consumption (average operating)	679 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012 R2
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	455 mm
Width	475 mm
Height	575 mm
Weight	21500 g
