Utax P-4030 MFP Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-1-9
(4) Operation panel
(4-1) Basic model

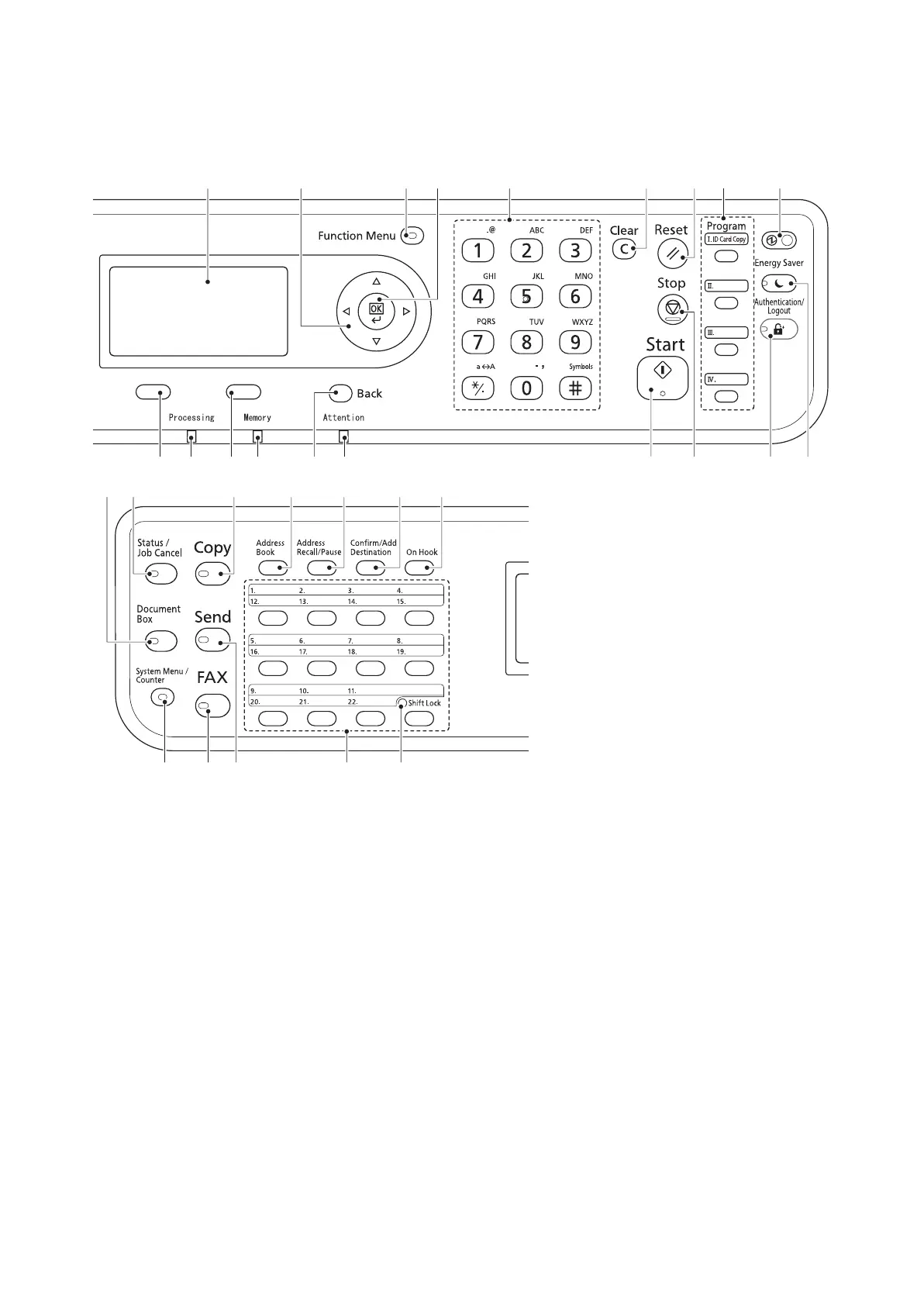

Figure 1-1-5
14 198 95 6 10
1 11 16 174 3 12 132
157 18
26 27 28 29232021
25 24 31 3022
1. LCD
2. Arrow key
3. OK key
4. Function Menu key
5. Select key(Left)
6. Select key(Right)
7. Back key
8. Processing Indicator
9. Memory Indicator
10. Attention Indicator
11. Numeric keys
12. Clear key
13. Reset key
14. Start key
15. Stop key
16. Program key
17. Power Indication
18. Energy Saver key
19. Authentication/Logout key
20. Status/Job Cancel key
21. Document Box key
22. System Menu/Counter key
23. Copy key
24. Send key
25. FAX key
26. Address Book key
27. Address Recall/Pause key
28. Confirm/Add Destination key
29. On Hook key
30. Sift Lock Indicator
31. One Touch key

Utax P-4030 MFP Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	20 ppm
Copier resize	25 - 400 %
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	40 cpm
Scan to	E-mail, FTP, SMB, USB
Scan drivers	TWAIN, WIA
Maximum scan area	A4 (210 x 297) mm
Scan speed (color)	30 ppm
Image formats supported	JPG, TIF
Duplex scan speed (black)	17 ppm
Duplex scan speed (color)	13 ppm
Document formats supported	PDF, XPS
Faxing	No
Digital sender	-
Printing colors	Black
Maximum duty cycle	- pages per month
Page description languages	Epson LQ, IBM ProPrinter, PCL 5c, PCL 5e, PCL 6, PCL XL, PDF 1.7, PostScript 3
Cabling technology	10/100/1000Base-T(X)
Authentication method	SMTP
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols (IPv4)	TCP/IP
Internal memory	512 MB
Processor model	465S
Processor family	PowerPC
Processor frequency	667 MHz
Paper input type	Cassette
Total input capacity	500 sheets
Total output capacity	250 sheets
Multi-Purpose tray input capacity	100 sheets
Duplex media weight	60 - 120 g/m²
Paper tray media types	Plain paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Product color	Black, Grey
Market positioning	Business
Standard interfaces	Ethernet, USB
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (off)	2.6 W
Power consumption (standby)	53.7 W
Power consumption (average operating)	679 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012 R2
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	455 mm
Width	475 mm
Height	575 mm
Weight	21500 g
