(2-1) Detaching and refitting the eject unit
Procedure
1. Remove the upper interface cover.
2. Release two hooks using a flat screw
driver and remove the right stay cover.

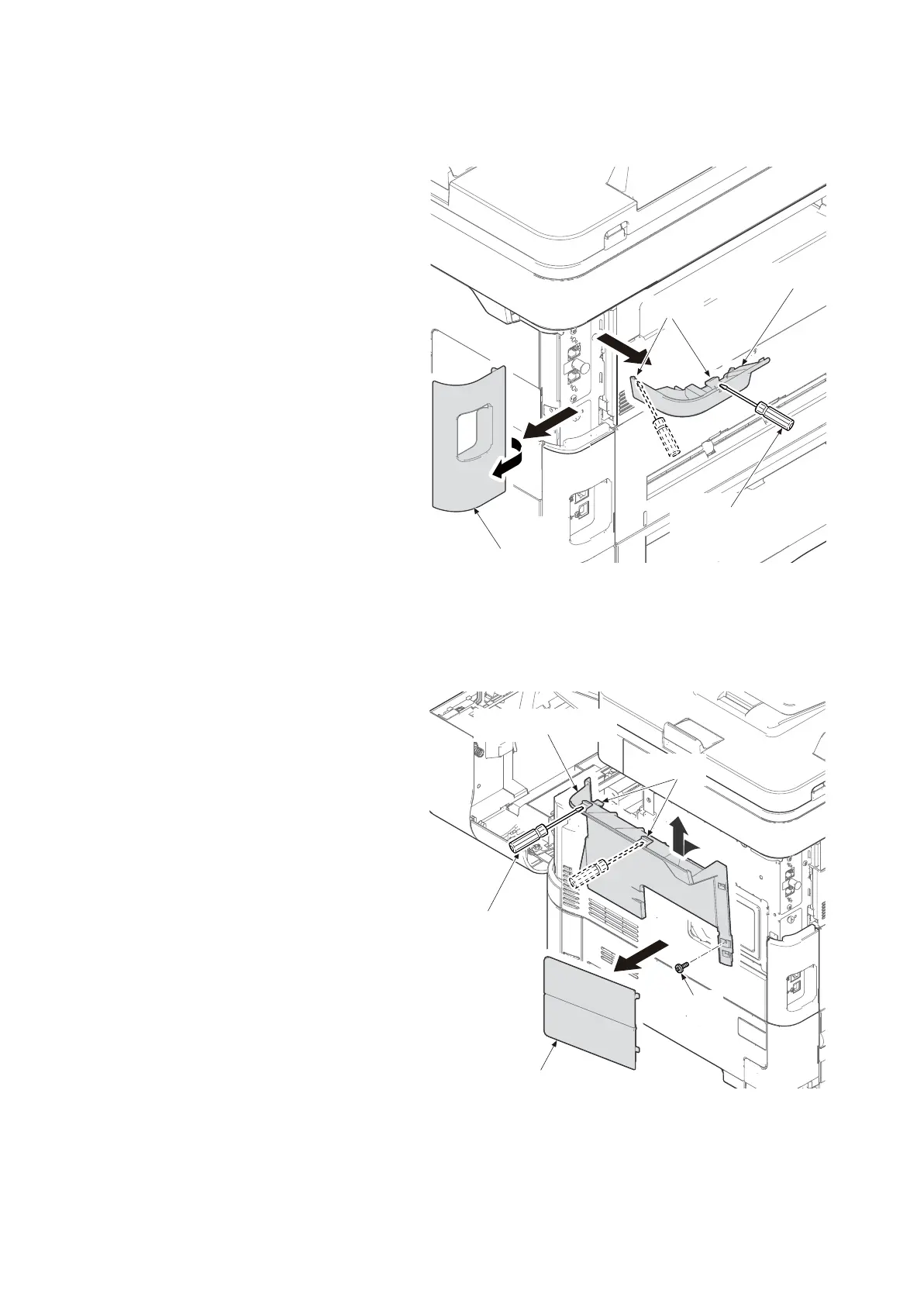

Figure 1-5-85
3. Remove the controller cover.
4. Open the front cover.
5. Remove the screw from the right upper
cover.
6. Release two hooks using a flat screw
driver and remove the right upper cover.
Figure 1-5-86
Upper
interface cover
Flat screw driver
Right stay cover
Hooks
Controller cover
Flat screw driver
Hooks
Right upper cover
Screw
