Utax P-4030 MFP

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-45
4. Remove the fulcrum axis by sliding the
rear cover assembly while avoiding rear
cover and then remove the rear cover
assembly.

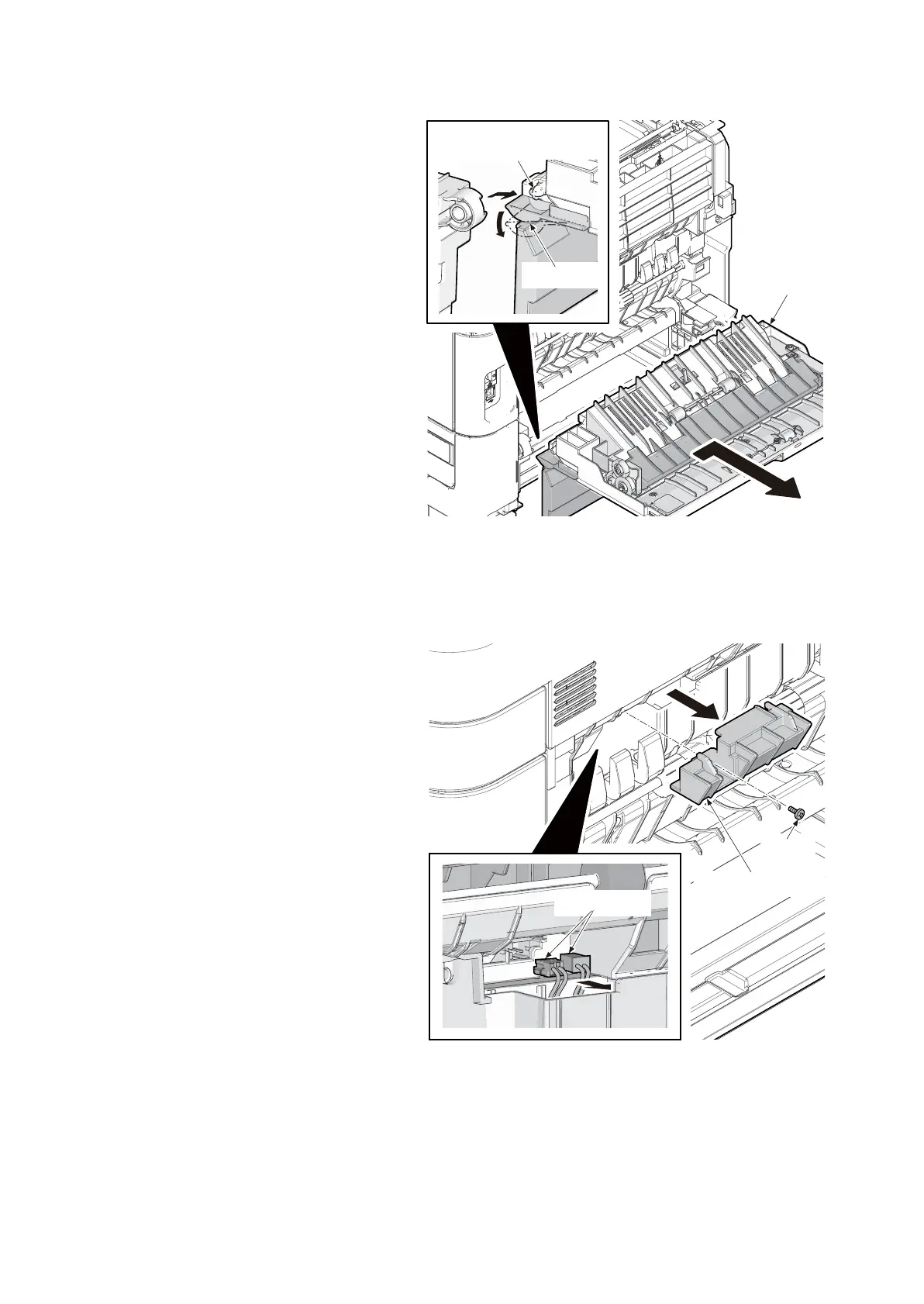

Figure 1-5-74
5. Remove the screw and then remove the
connector cover A.
6. Pull two connectors out.
Figure 1-5-75
Rear cover
assembly
Flucrum axis
(Rear cover assembly)
Rear cover
Connector cover A
Connectors
Screw
