Utax P-4030 MFP

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-68

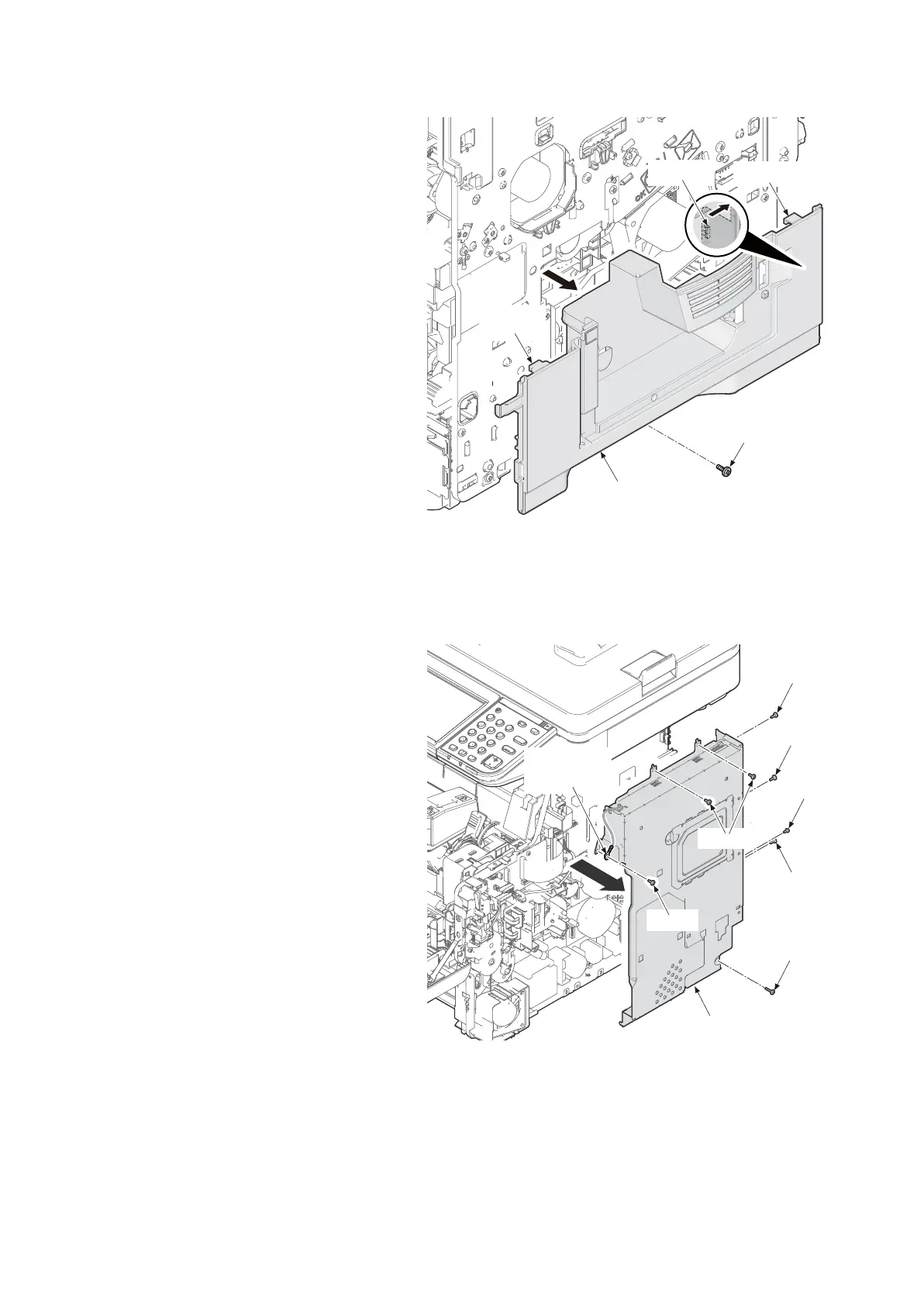

19. Remove the screw.
20. Release the hook A.
21. Release two hooks B by sliding the left
lower cover upward and then remove
the left lower cover.
Figure 1-5-115
22. Remove eight screws and grounding
terminal.
23. Remove the controller box.
Figure 1-5-116
Screw
Hook B
Hook B
Left lower cover
Hook A
Screw
Screw
Screw
Screw
Screw
Screw
Screws
Controller box
Grounding
terminal
