Utax P-4030 MFP

2NM/2NX/2NY/2NZ/2P0/2P6-1
1-5-71
34. Remove seven screws.
35. Extract the feed roller axis by pushing
the joint part.
36. Remove the duplex conveying unit to
the front.
37. Check or replace the duplex conveying
unit and refit all the removed parts.

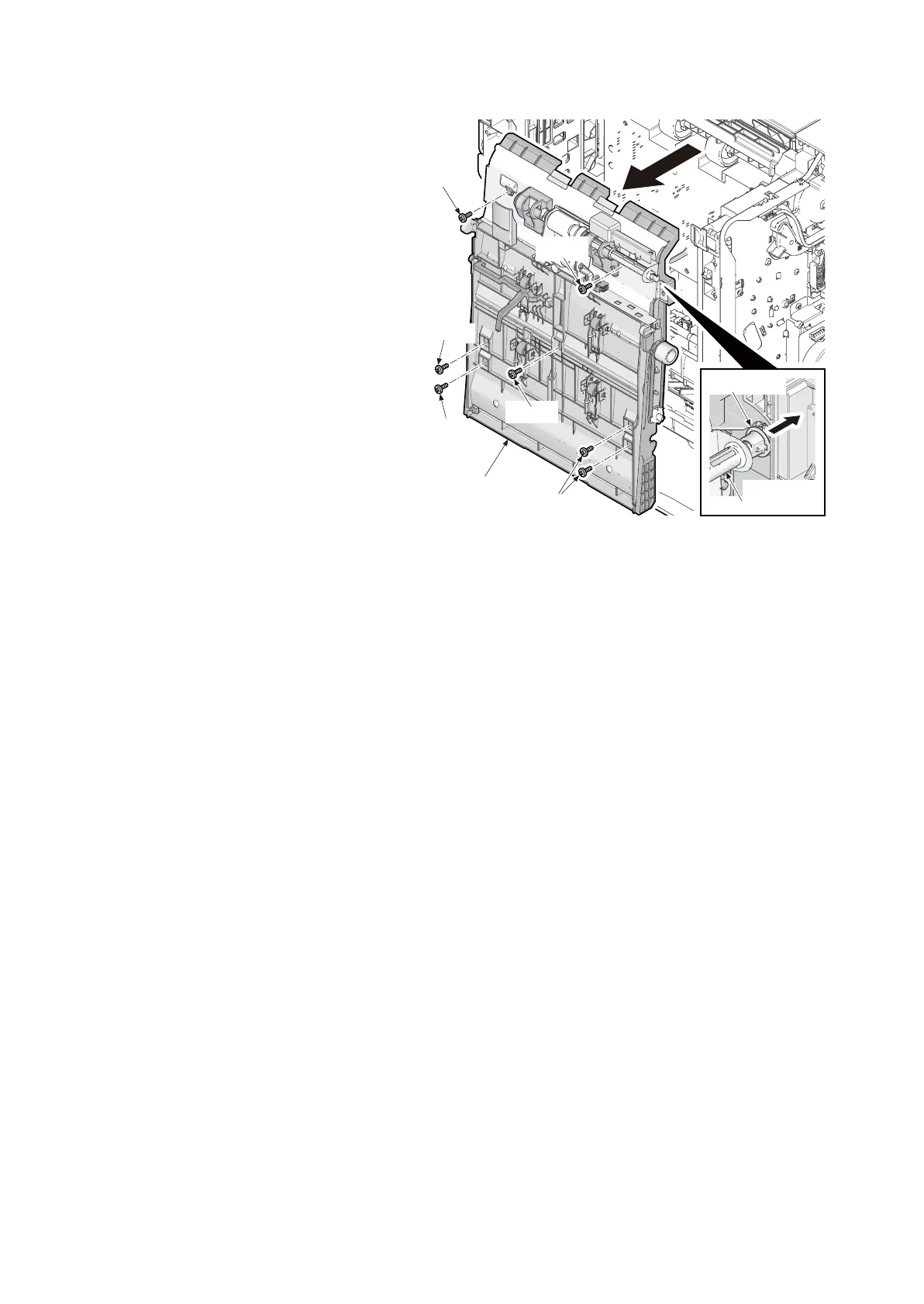

Figure 1-5-121
Screws
Screw
Duplex
conveying unit
Screw
Screw
Screw
Screw
Paper feed
roller axis
Joint part
