Utax P-4030 MFP

2NM/2NX/2NY/2NZ/2P0/2P6-1
1-5-81
5. Remove two screws and the grounding
terminal.
6. Remove the Drive B unit from DP.

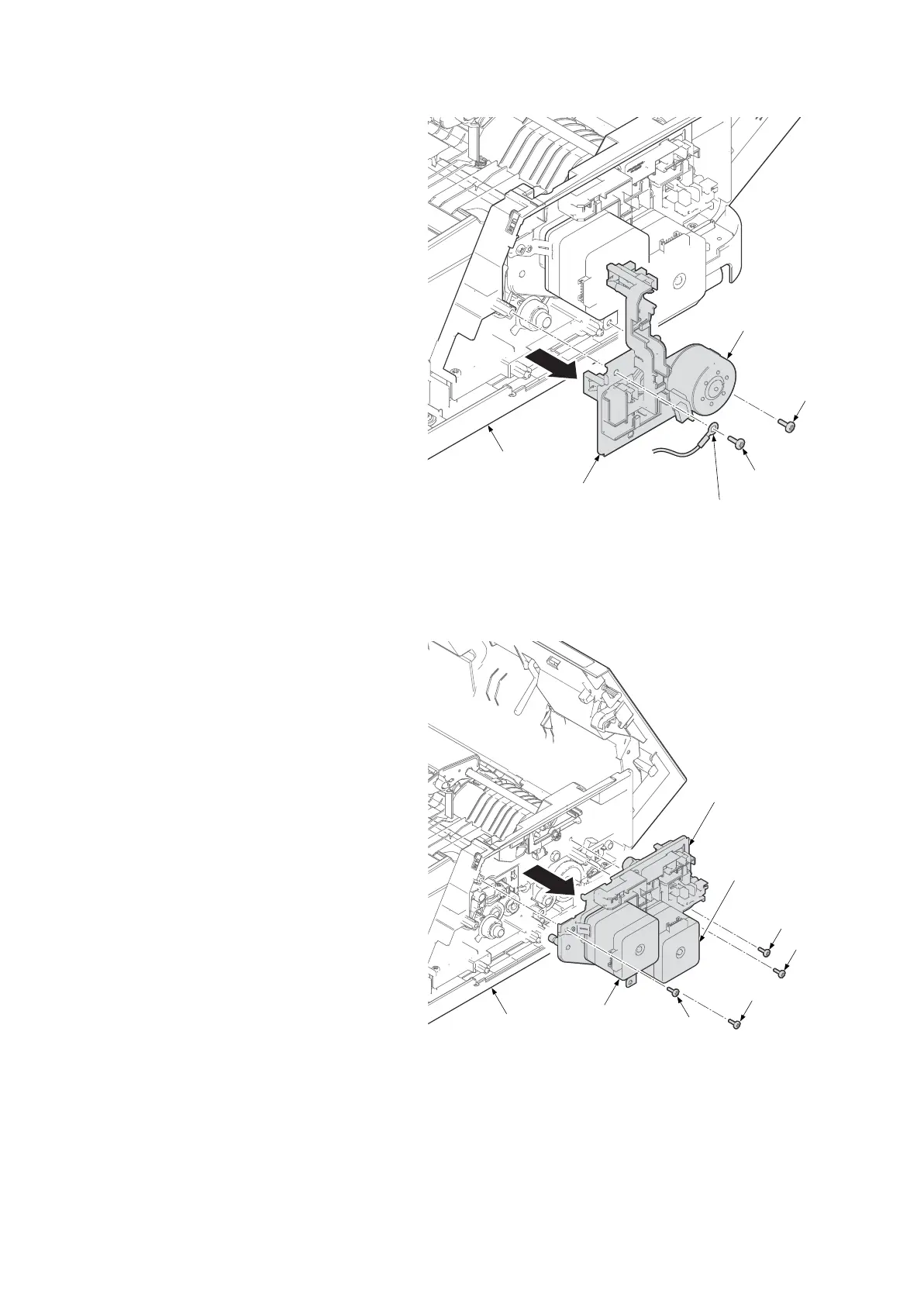

Figure 1-5-136
7. Remove four screws and then remove
Drive A unit.
Figure 1-5-137
Screw
Screw
Grounding terminal
DP shiftback motor
Drive B unit
DP
Screw
Screw
Screw
Screw
Drive A unit
DP conveying
motor
DP
DP paper
feed motor
