2NM/2NX/2NY/2NZ/2P0/2P6
2-2-38

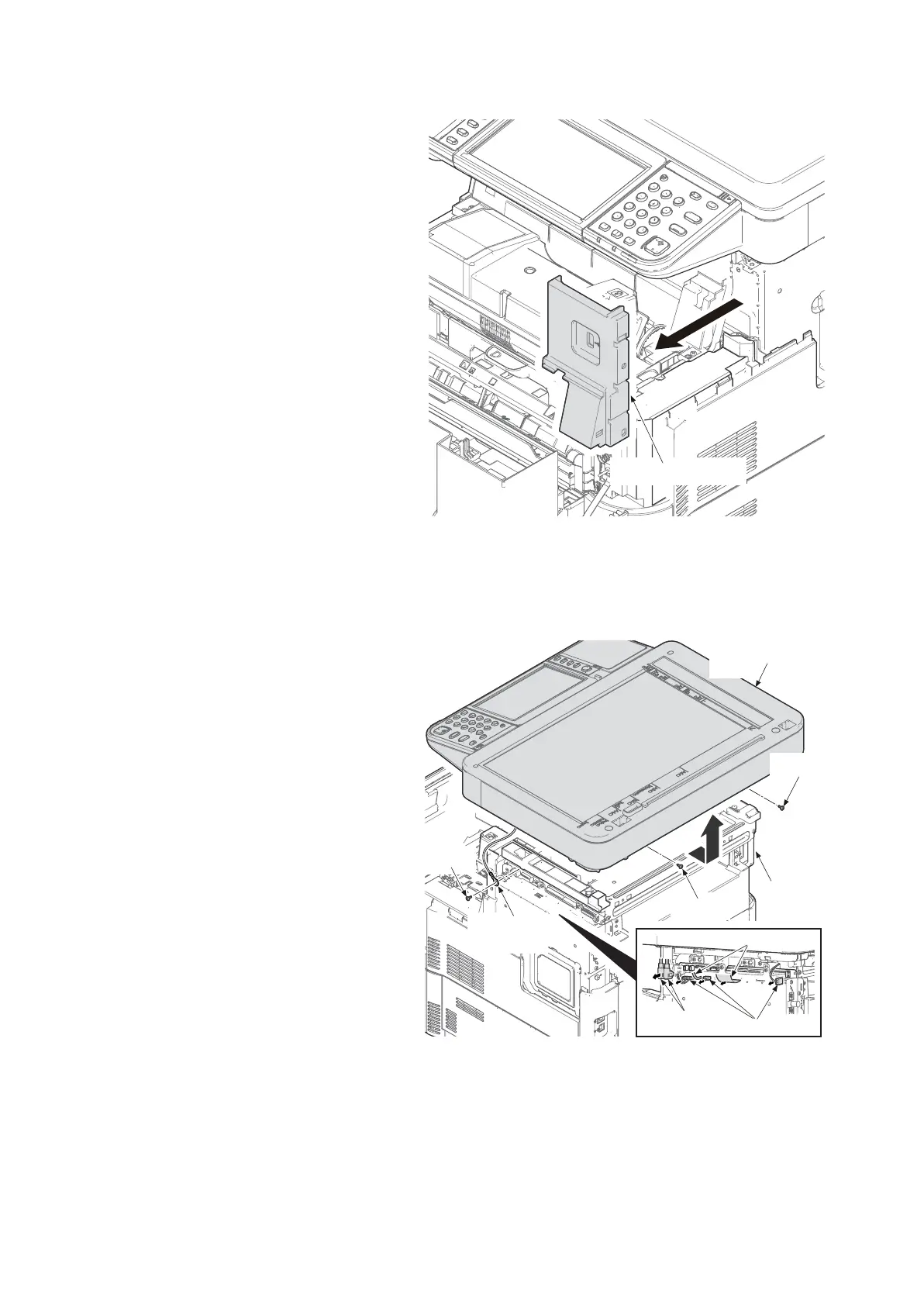

10. Remove the front right cover forward.
Figure 2-2-41
11. Remove three connectors, two FFCs
and two USB connectors from the Con-
trol PWB.
12. Remove three screws and grounding
terminal from the image scanner unit.
13. Remove it by sliding the image scanner
unit backward and then takeing upward.
Figure 2-2-42
Front right cover
Screw
Image scanner
unit
Main unit
Screw
Connectors
FFCs
USB
connectors
Screw
Grounding
terminal
To Next Page
