Utax P-4030 MFP Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-3-33
U071 DP Timing
Description
Adjusts the DP original scanning timing.
Purpose
Make the adjustment if there is a regular error between the leading or trailing edges of the original
and the copy image when the DP is used.
Method
1. Press the start key.
2. Press the system menu key.
3. Place an original on the DP and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.
Display Description
Setting
range
Initial
setting
Change in
value per step
Front Head Leading edge registration. (first side) -32 to 32 - 0.85
Front Tail Trailing edge registration. (first side) -32 to 32 - 0.85
Back Head Trailing edge registration. (first side) -32 to 32 - 0.85
Back Tail Trailing edge registration. (second side) -32 to 32 - 0.85
Adjustment: Leading edge registration
1. Change the setting value using the cursor right/left keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.
Increasing the value moves the image forward and decreasing the value moves the image
backward.

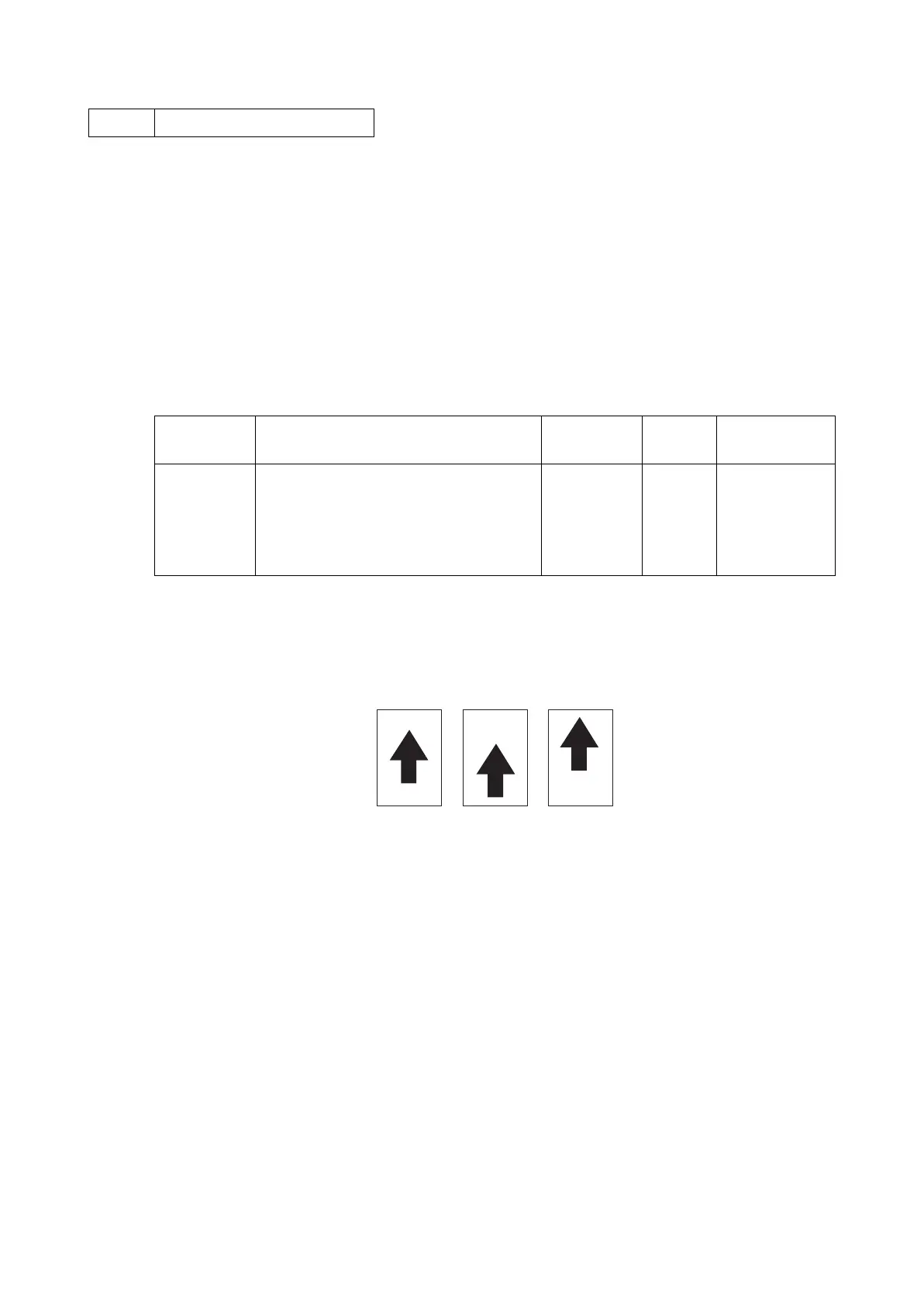

Figure 1-3-10
2. Press the start key. The value is set.
Caution
If the first side is adjusted, check the second side and if adjustment is required, carry out the
adjustment.
If the above adjustment does not optimize the leading edge registration, proceed with the following
maintenance modes.
U034 -------- U071
(P.1-3-24)
Original Copy
example 1
Copy
example 2

Utax P-4030 MFP Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	20 ppm
Copier resize	25 - 400 %
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	40 cpm
Scan to	E-mail, FTP, SMB, USB
Scan drivers	TWAIN, WIA
Maximum scan area	A4 (210 x 297) mm
Scan speed (color)	30 ppm
Image formats supported	JPG, TIF
Duplex scan speed (black)	17 ppm
Duplex scan speed (color)	13 ppm
Document formats supported	PDF, XPS
Faxing	No
Digital sender	-
Printing colors	Black
Maximum duty cycle	- pages per month
Page description languages	Epson LQ, IBM ProPrinter, PCL 5c, PCL 5e, PCL 6, PCL XL, PDF 1.7, PostScript 3
Cabling technology	10/100/1000Base-T(X)
Authentication method	SMTP
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols (IPv4)	TCP/IP
Internal memory	512 MB
Processor model	465S
Processor family	PowerPC
Processor frequency	667 MHz
Paper input type	Cassette
Total input capacity	500 sheets
Total output capacity	250 sheets
Multi-Purpose tray input capacity	100 sheets
Duplex media weight	60 - 120 g/m²
Paper tray media types	Plain paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Product color	Black, Grey
Market positioning	Business
Standard interfaces	Ethernet, USB
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (off)	2.6 W
Power consumption (standby)	53.7 W
Power consumption (average operating)	679 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012 R2
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	455 mm
Width	475 mm
Height	575 mm
Weight	21500 g
