Troubleshooting
8-30

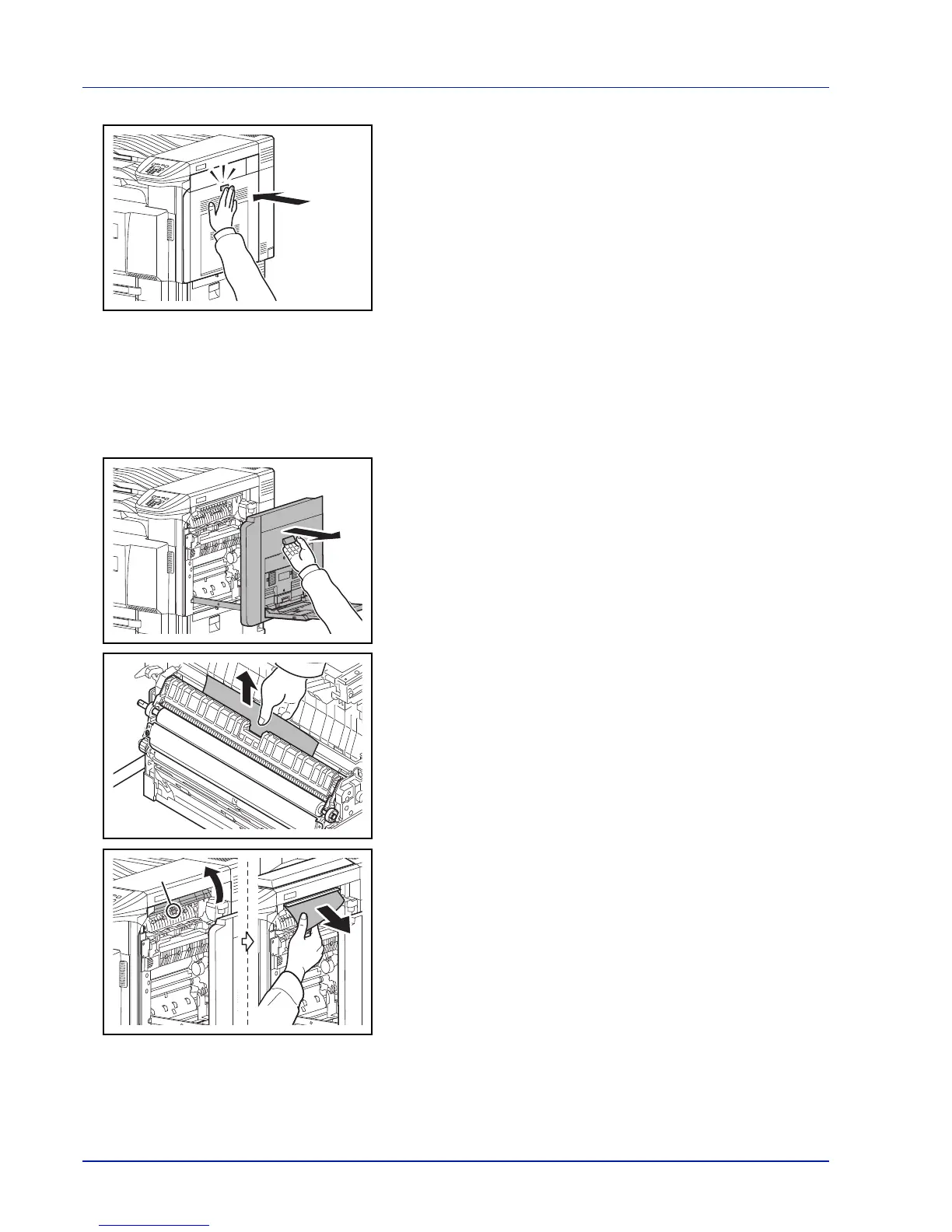

4 Replace the Conveyor Guide (A3), press the indicated part, and close
Right Cover 1.
Duplex Unit and Cassette 1
Follow the steps below to clear paper jams in duplex unit and cassette 1.
1 Pull up right cover 1 lever and open the right cover 1.
2 Remove the jammed paper.
3 Open the Conveyor Guide (A3) and remove the jammed paper.
A3
To Next Page
