DEEP
WELL INSTALLATION

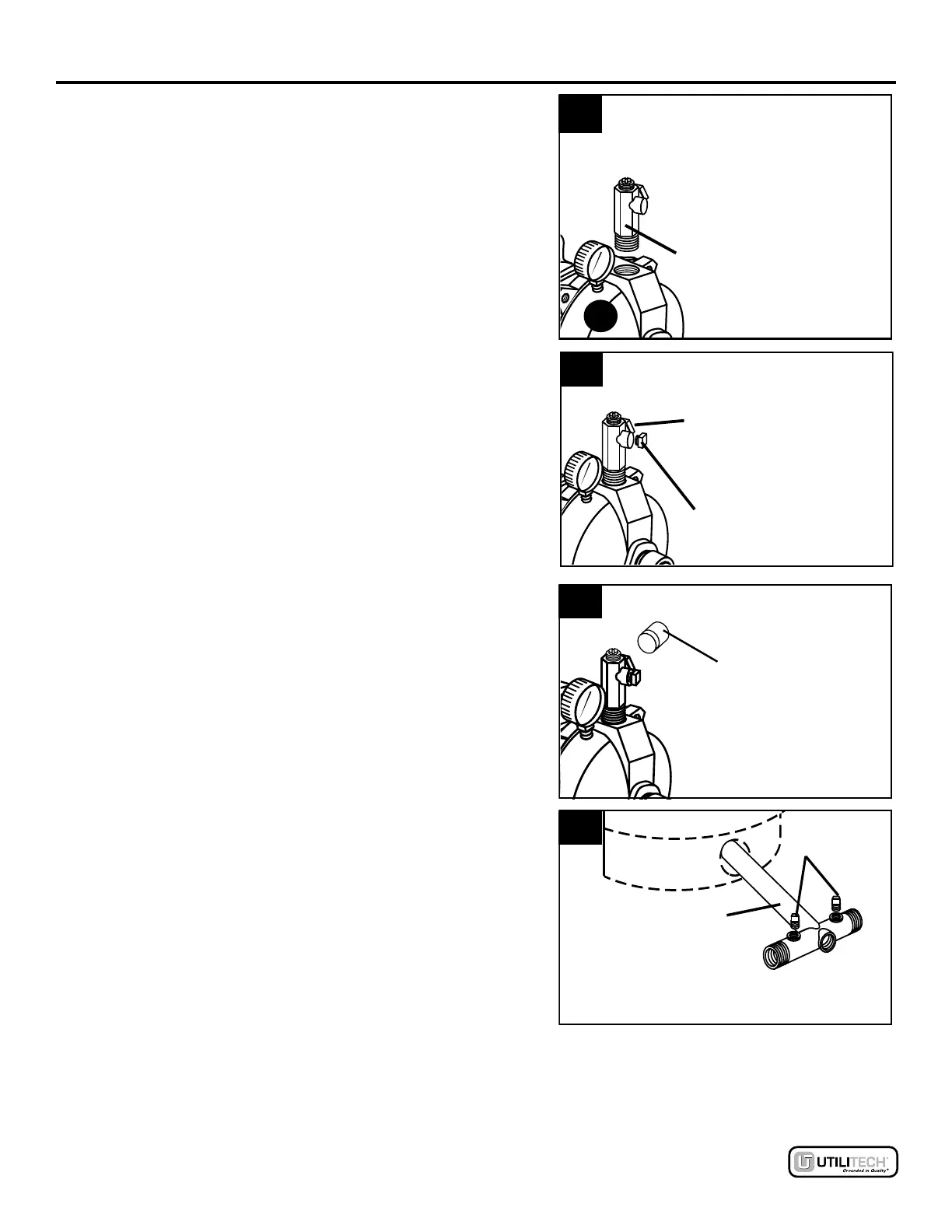

9. Open pressure regulator kit.
Apply 2-3 wraps of
thread tape to the male threads on the body of the
pressure regulator. With pipe wrench, thread the
pressure regulator into 1 in. discharge at top of
pump (A). Use a pressure gauge with 1/8 in. NPT
thread and
10.
Thread plug into opening to right of pressure
regulator outlet.
1
1. Thread 3/4 in. male PVC adapter into pressure
regulator outlet.
12.
Thread tank tee into pre-charged pressure tank.
Plug two outlets on tank tee with two 1/4 in. plugs.
Lowes.com
11
9
10
11
12
Pressure
Regulator
Pressure
Regulator
Outlet
Plug
3/4 in. Male
PVC Adapter
1/4 in. Plugs
T
ank Tee
A
thread pressure gauge into side of pump
case.
