DEEP
WELL INSTALLATION

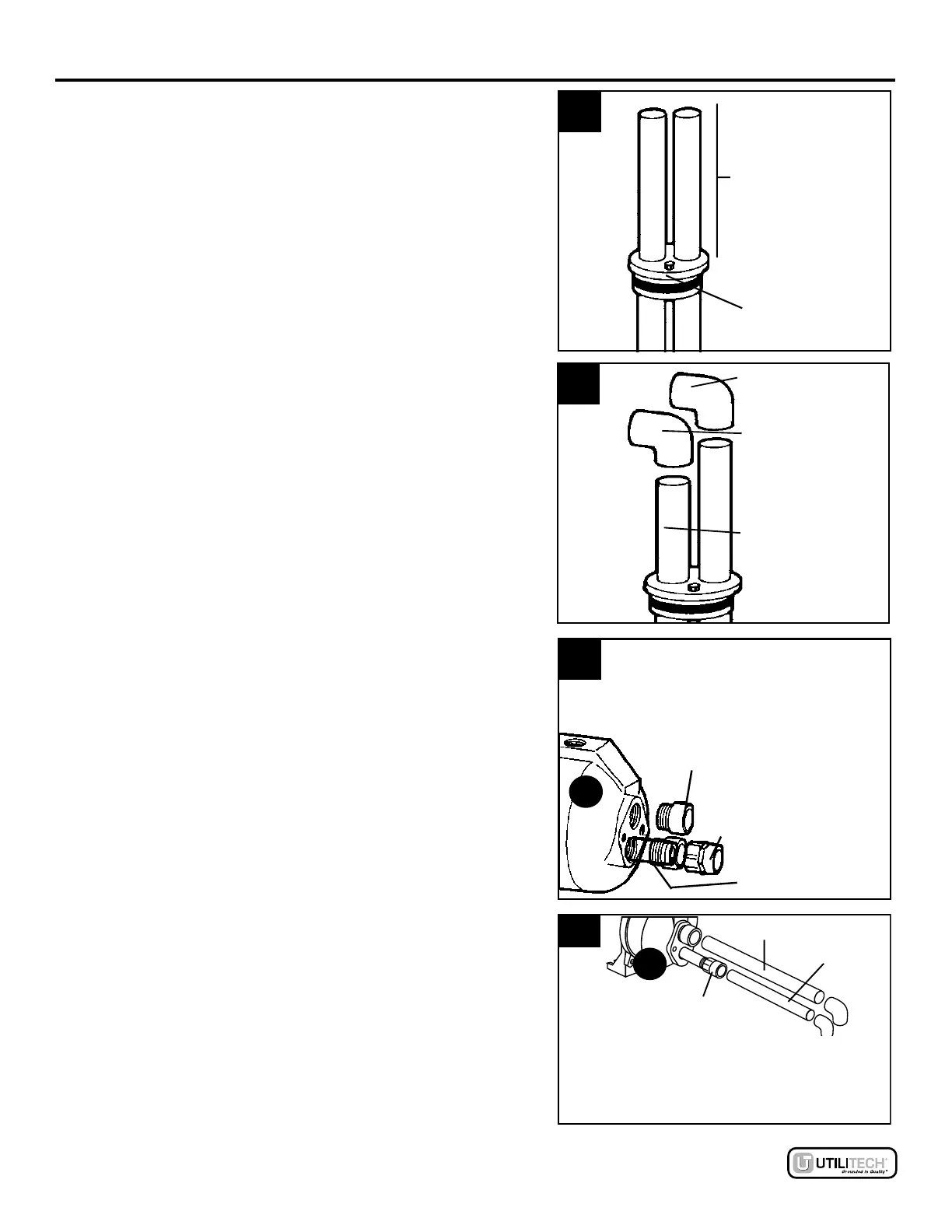

5. Remove pipe clamp and slide well seal over PVC
pipes and onto well casing. DO NOT
let assembly
slide down into well. Position assembly so that 12 in.
of PVC pipes protrude from well seal. Using wrench,
turn bolts on well seal clockwise until rubber gaskets
are tight against the well casing and the PVC pipes.
6. Cut 1 in. pipe 2 in. shorter than the 1-1/4 in. pipe.
Smooth rough edges. Cement 1 in. and 1-1/4 in. PVC
elbows to pipes protruding from the well seal.
7. Thread a 1-1/4 in. male PVC adapter into top hole in
front of pump (A). Thread 1 in. x 4 in. nipple into
bottom hole in front of pump. Thread the 1 in. female
PVC adapter onto the 1 in. x 4 in. nipple. Seal the
threaded pipe joints with thread tape.
8. Cement as many sections and couplings of rigid 1 in.
Lowes.com
10
5
6
7
8
12 in. of PVC Pipe
Protruding From
W
ell Seal
Well Seal
1-1/4 in. PVC
Elbow
1 in. PVC Elbow
1 in. Pipe
2 in. Shorten than
1-1/4 in. Pipe
1-1/4 in. Male
PVC Adapter
1 in. Female
PVC Adapter
1 in. x 4 in. Nipple
1-1/4 in. PVC Pipe
1 in. PVC Pipe
Female Adapter
A
A
and 1-1/4 in. PVC as needed to connect the 1 in.
female PVC adapter and the 1-1/4 in. male PVC adapter
to the 1 in. and 1-1/4 in. PVC elbows.
