EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS

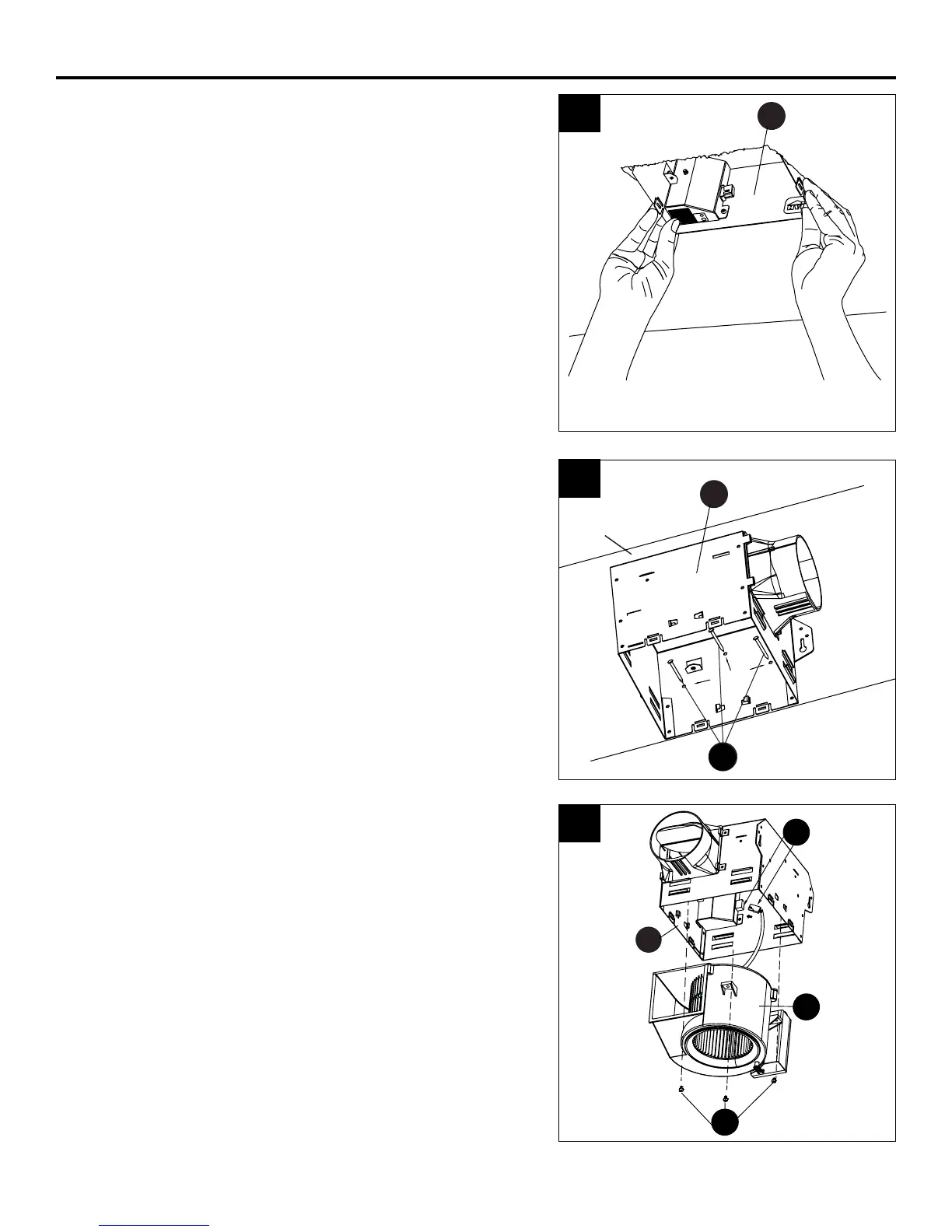

6. Insert fan housing (A) through existing hole in ceiling.
The fan housing (A) should be level and perpendicular
to the joist or stud.
7. Mount fan housing (A) to the joist or stud by nailing
where indicated by arrows inside fan housing (7.1).
8. Plug back in the power unit (8.1). Replace motor
assembly (8.3) back into fan housing (A) using the
three screws (8.2) removed in step 2.
7
Joist or
wall stud
6.1
A
6.1
6
A
8
7.2
7.1
7.3
A
8.1
8.3
8.2
