8
NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS
EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS
8.2
A
8.1
8.1
B
7

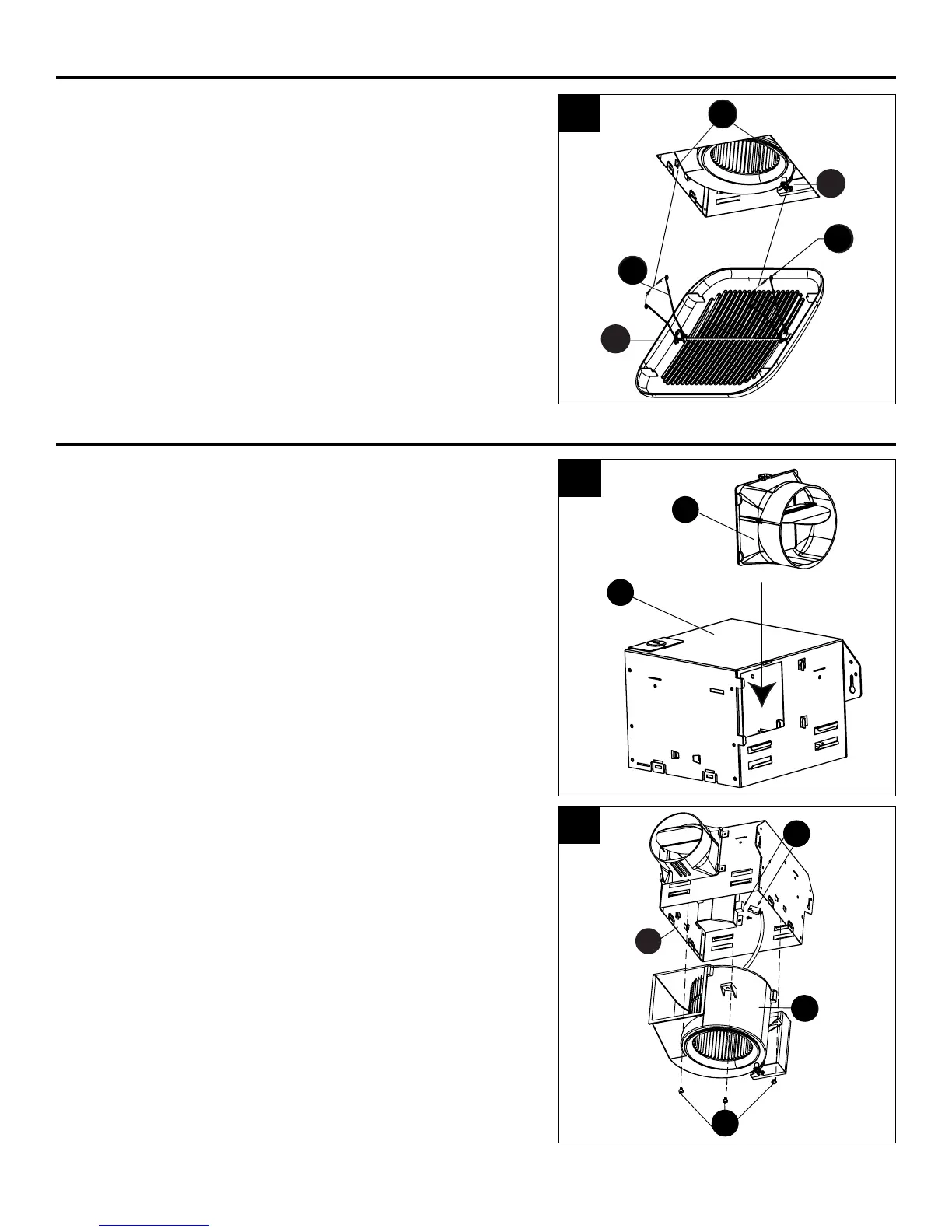

7. Pinch mounting springs (7.1) on grille (B) and insert
into narrow rectangular slots (7.2) inside the fan
housing (A). Push grille (B) up toward ceiling.
Turn on electricity at breaker box after nishing
installation.
Turn off electricity at breaker box before beginning
installation. Remove old fan.
1. Attach the duct connector (C) to the fan housing (A).
2. Unplug the fan power unit (2.1). Remove three
screws (2.2) that hold the fan motor assembly (2.3)
in place. Remove fan motor assembly (2.3) from fan
housing (A).
1.2
1.1
A
2.1
2.2
2.3
2
7.2
7.1
7.1
1
A
C
To Next Page
