Utilitech UT100USP User Manual

12
Lowes.com
®
Printed in Italy
Utilitech & UT Design
®
is a
registered trademark of LF,
LLC. All rights reserved.
1
2
3
3
2
4
5
6
7
8
9
10
11
12
13
14
15
17
17
17
18
20
21
16
19
22
3985 1111
PART DESCRIPTION QTY PART #
1 Pump Body 1 723S2290
2
O-Ring, Drain
Plug
2 111P0990
3 Drain Plug 2 121P6090
4 O-ring, Nozzle 1 111P0480
5
Diffuser, Venturi,
Nozzle Assembly
1 101P2840
6 Impeller 1 731S2220
7
Mechanical Seal,
Assembly
1 ZBR39020
8
O-ring, Pump
Body
1 111P1190
9 Flange 1 101P1290
10
Intermediate
Support
1 ZBR26970
11 Handle 1 101P1450
12 Washer, Handle 1 121P1500
13 Screw, Handle 1 121P1600
14 Water Slinger 1 102P0540
15 Fan, Cooling 1 102P0570
PART DESCRIPTION QTY PART #
16 Fan Cover 1 721S1090
17
Screws, Capacitor
Holder
11
FPP1802
Capacitor Box
with Cover
1
O-ring, Capacitor
Box
1
18 Capacitor 1 171P5430
19
Washer, Ground
Screw
1 121P0090
20
Lockwasher,
Ground Screw
1 121P0920
21 Screw, Ground 1 121P1280
22 Base Assembly 1 ZBR25690

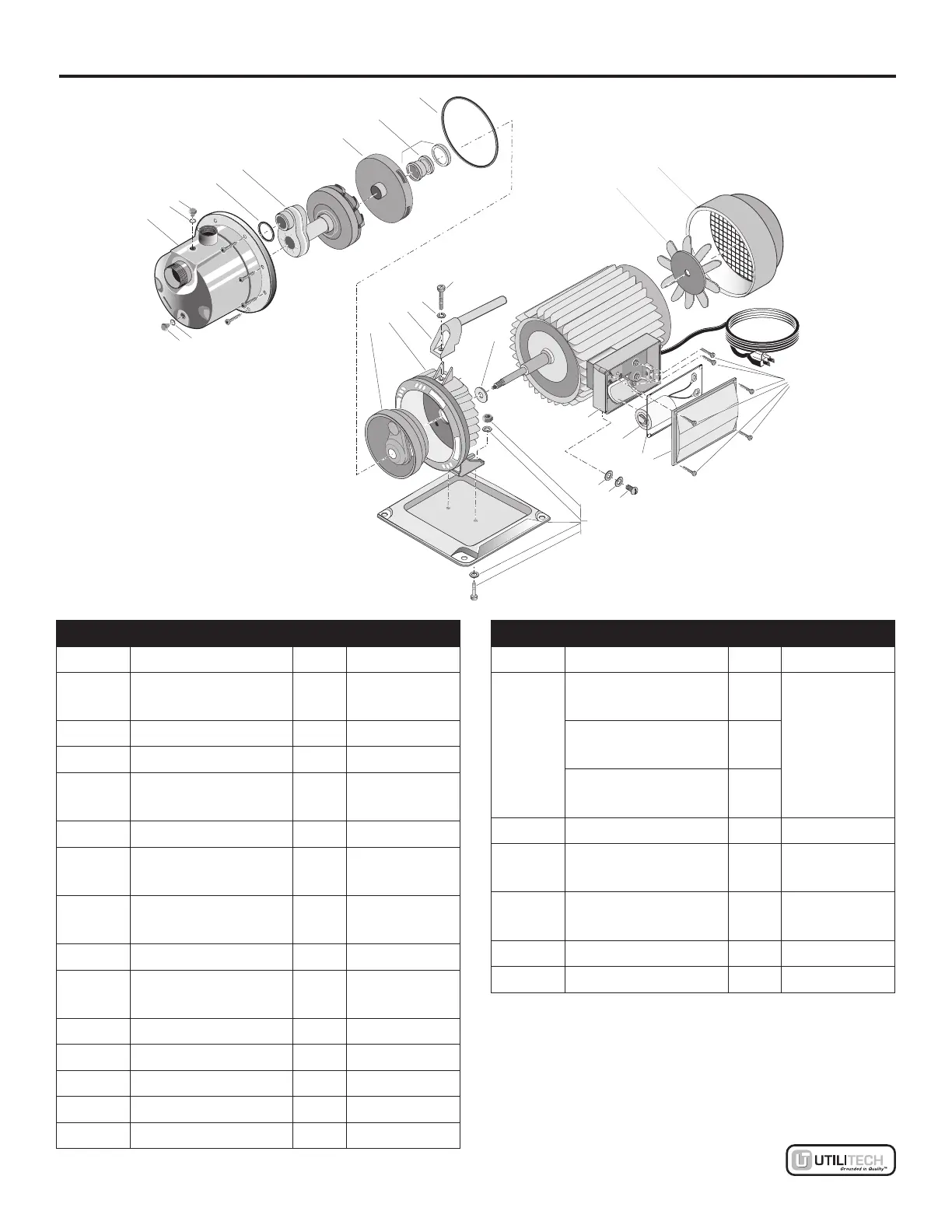

REPLACEMENT PARTS LIST
