Hardware Used
ASSEMBLY INSTRUCTIONS
Base Screw
x 3
AA
Cut-out notch;
align with
anti-airlock hole
3
2
1
Risk of electric shock. Do not plug in pump
until assembly is complete.

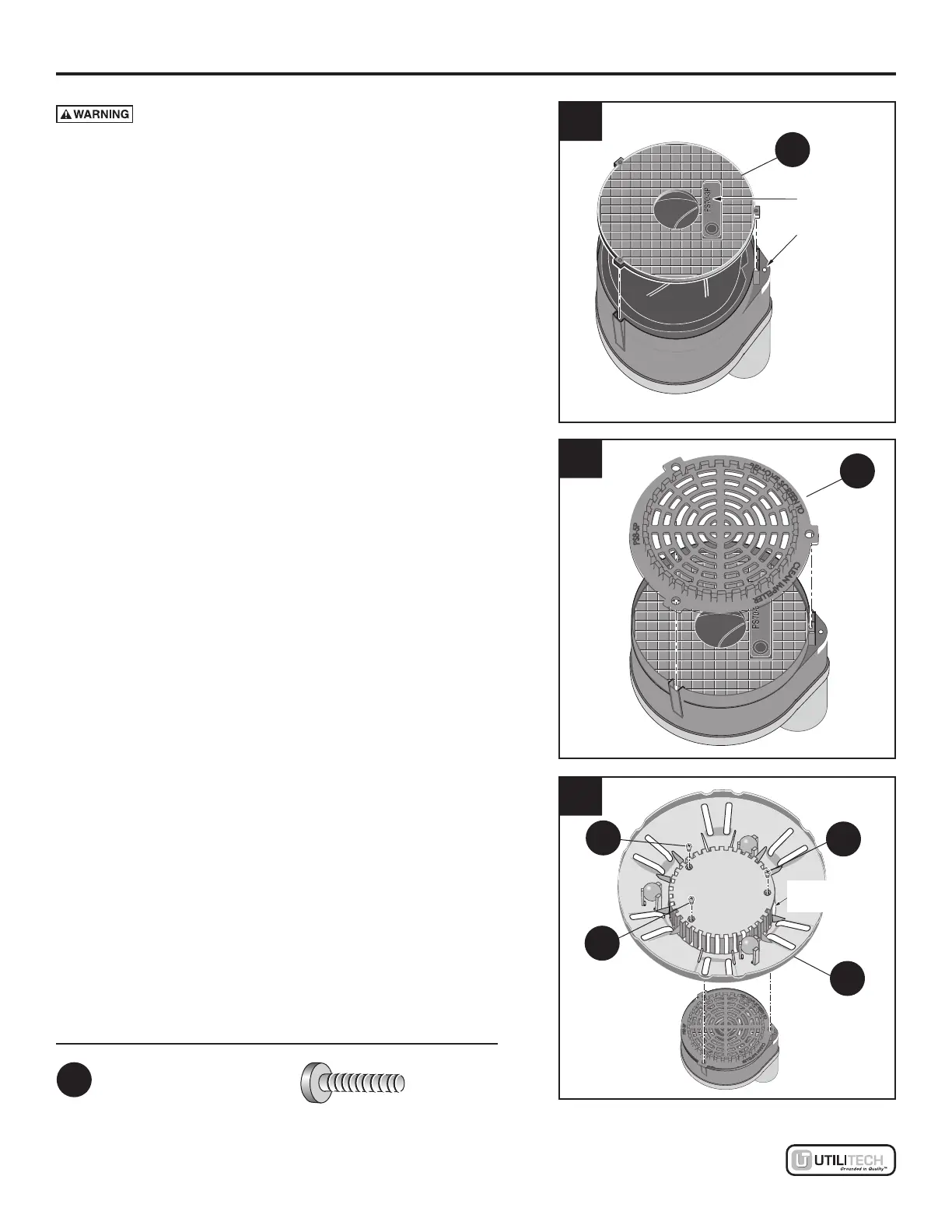

1. Turn pump body upside down and install the
shield (E) as shown.
2. Install the screen (F) as shown. Do not insert
screws yet.
3. Using the three screws (AA), attach the base (G) as
shown, inserting screws through the base, screen,
and shield.
NOTE: Rectangular cutout notch in base must align
with anti-airlock hole in motor body.
5841 0408
Align part
number
with anti-
airlock
hole
E
F
AA
AA
AA
G
To Next Page
