Utimaco CryptoServer LAN V4 - Rear Ports (DC Power Supply)

Bringing into Service
Page 18 of 42
Port/Interface
Description
a14
eth1 - Ethernet port 10/100/1000 (RJ45)
a15
eth0 - Ethernet port 10/100/1000 (RJ45)
a16
VGA connector (screen)
CryptoServer LAN V4 in Figure 1
a12
PS/2 power supply for a keyboard or mouse
a13
USB 2.0 port for the CryptoServer LAN
CryptoServer LAN V4 in Figure 2
a12, a13
USB 2.0 ports for the CryptoServer LAN
a17
Guard bracket protecting both power supplies against inadvertent displacement
during transport/movement.
Table 2: Ports and interfaces on the rear side of CryptoServer LAN V4 (AC)
3.2 Ports and Interfaces on the Rear Side (DC Power Supply)
The CryptoServer LAN V4 with DC power supply might be supplied with slightly different ports
and interfaces on the rear side as shown in the following two figures, while the front panel
remains the same as in Figure 7 resp. Figure 9.

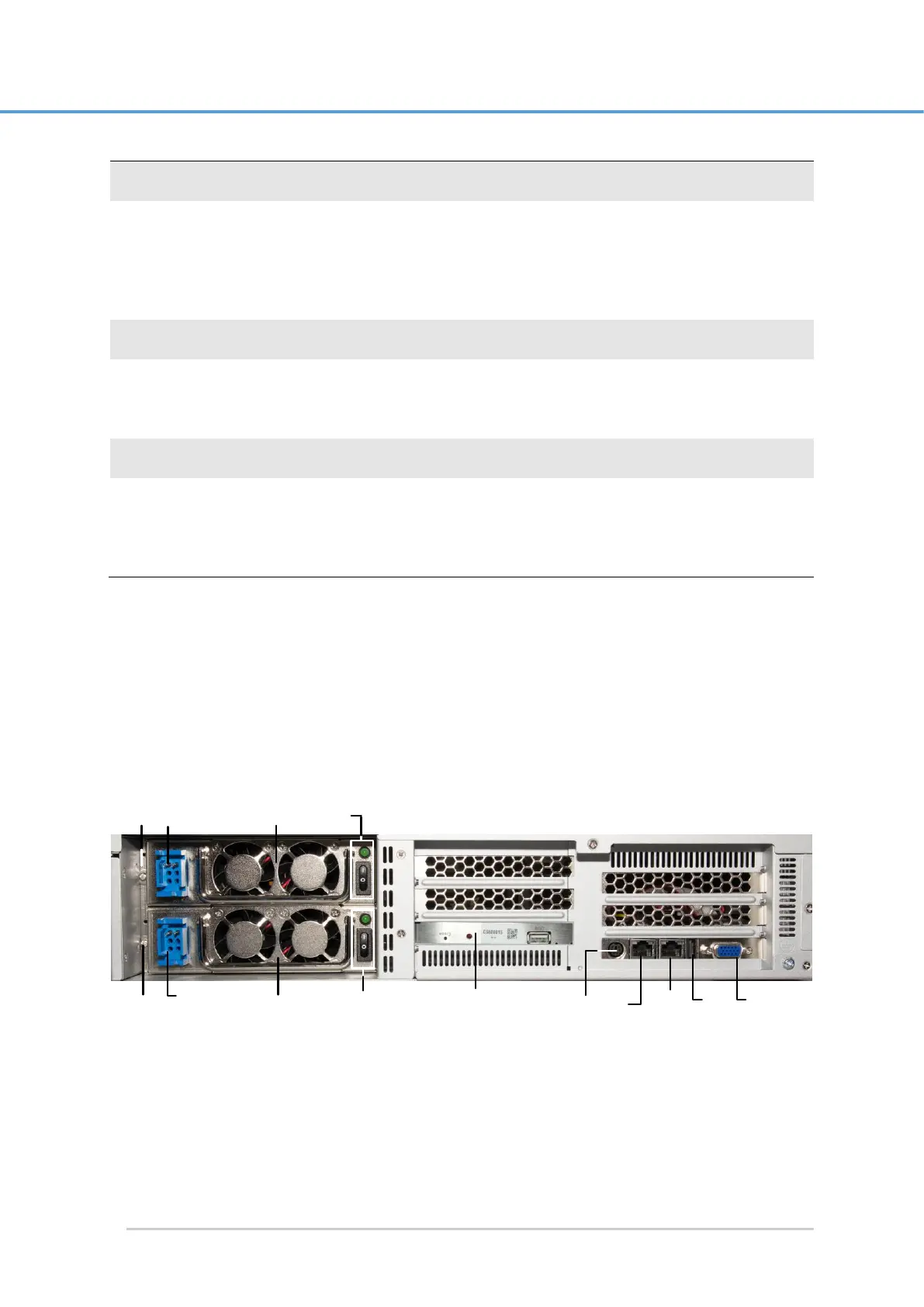

Figure 5: CryptoServer LAN V4 (DC) – Sockets and ports on the rear side (variant b)
d1d3
d4
d5
d6
d10
d12
d2
d9
d13
d14
d8
d7
d11
