vacon • 4 UK: VACON
®
100 drive supply switch
Tel. +358 (0) 201 2121 • Fax +358 (0)201 212 205
4

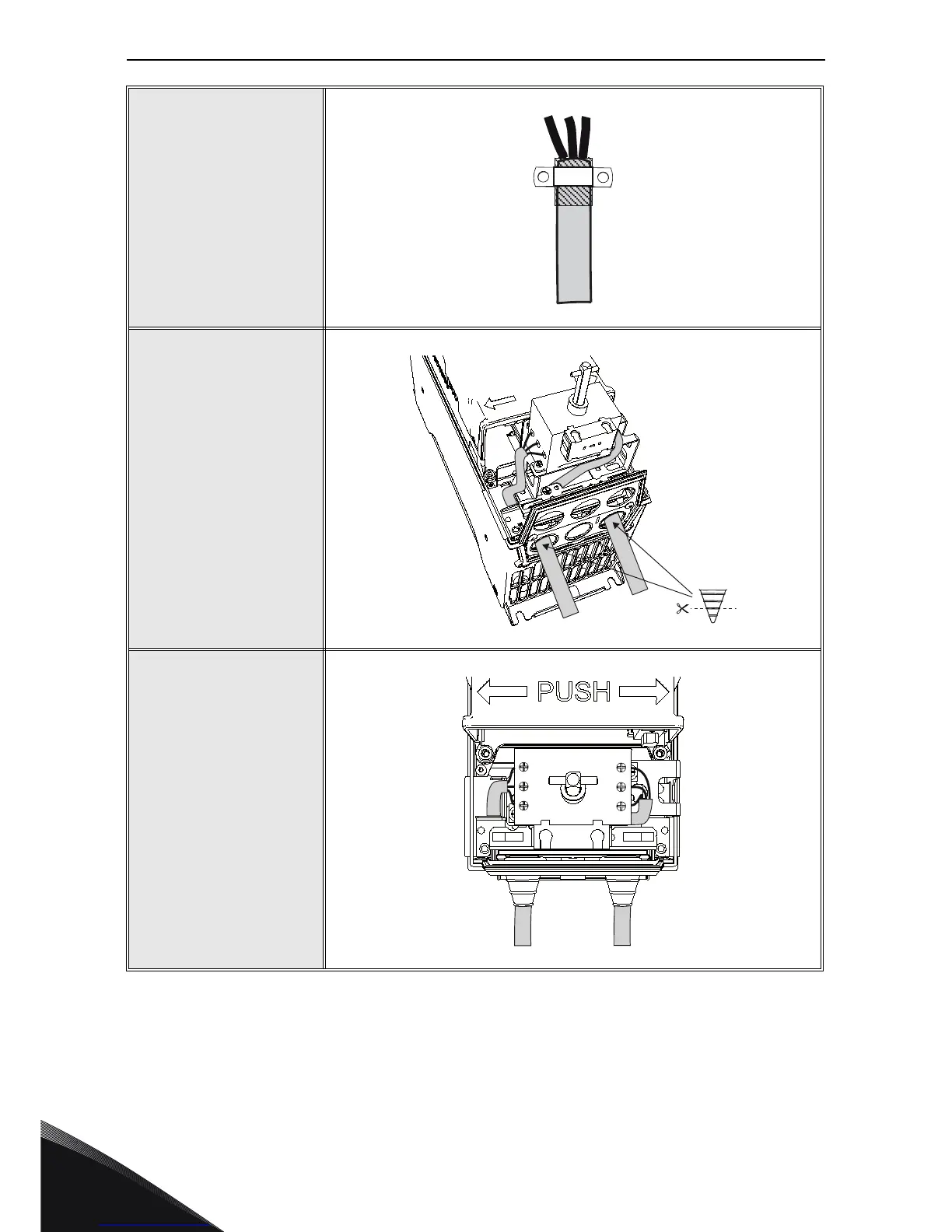

Attaching the cables: fold
the cable shield back-
wards onto the cable and
attach the cable with
a cable clamp on the
shield.
NOTE! See detailed cable
installation instructions in
the VACON
®
100
installation manual!
5
Install the supply cable
“S” and lead it to the drive
supply switch as shown in
the picture.
NOTE 1! Protect the
cables as close to the
drive supply switch as
possible with an insulation
tube.
NOTE 2! See detailed
cable installation
instructions in the
VACON
®
100 installation
manual!
6
The motor and supply
cable installation seen
from above.
M
S
S
M
2T1
4T2
6T3
1L1
3L2
5L3
