installation vacon 9
24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
2

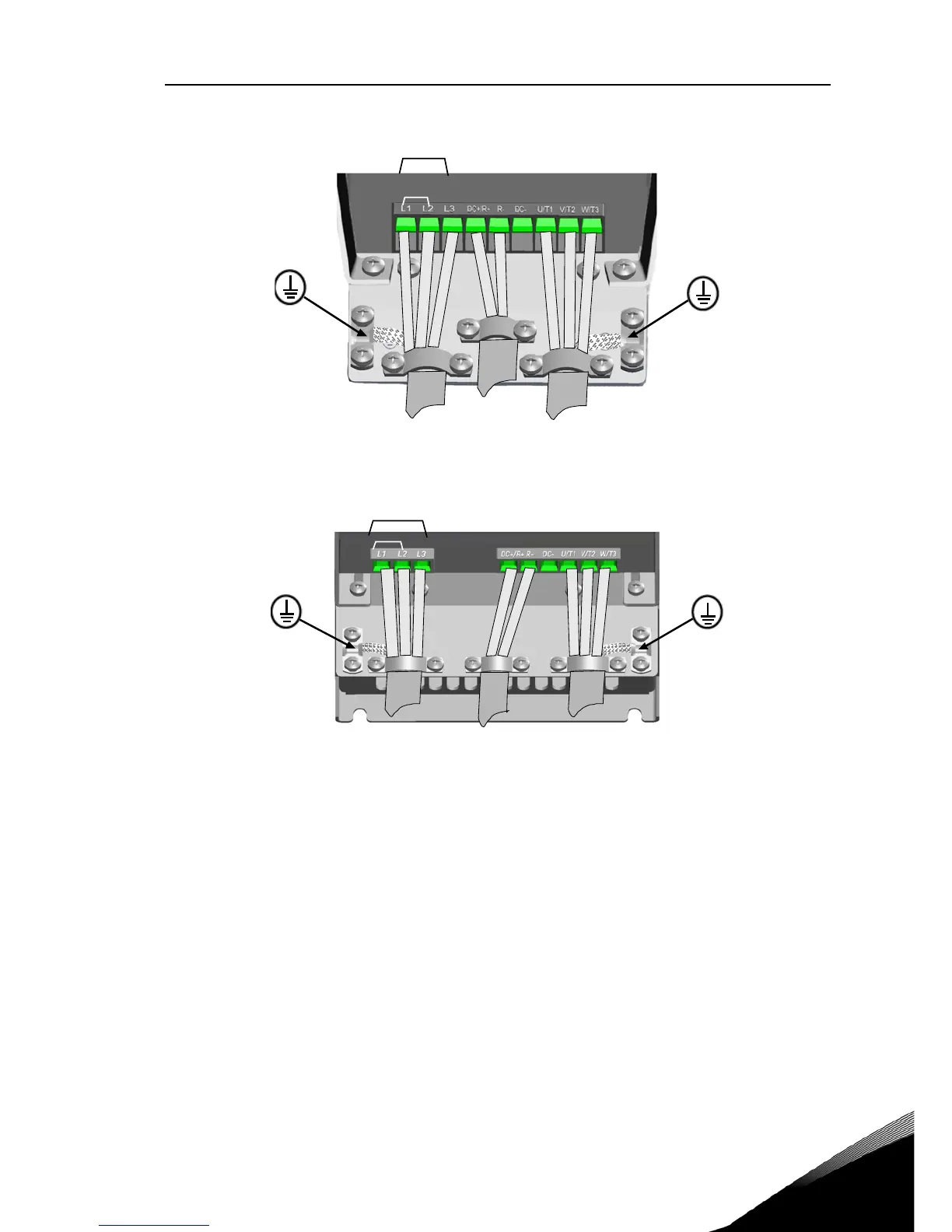

Figure 12: Vacon 20 power connections, MI4
Figure 13: Vacon 20 power connections, MI5
MAINS
MOTOR
Motor out
Brake
RESISTOR
3~ (380, 480V)
MAINS
MOTOR
Motor out
Brake
RESISTOR
3~ (380, 480V)
