10 • vacon installation
Tel. +358 (0)201 2121 • Fax +358 (0)201 212205
2
2.2.2 Control cabling

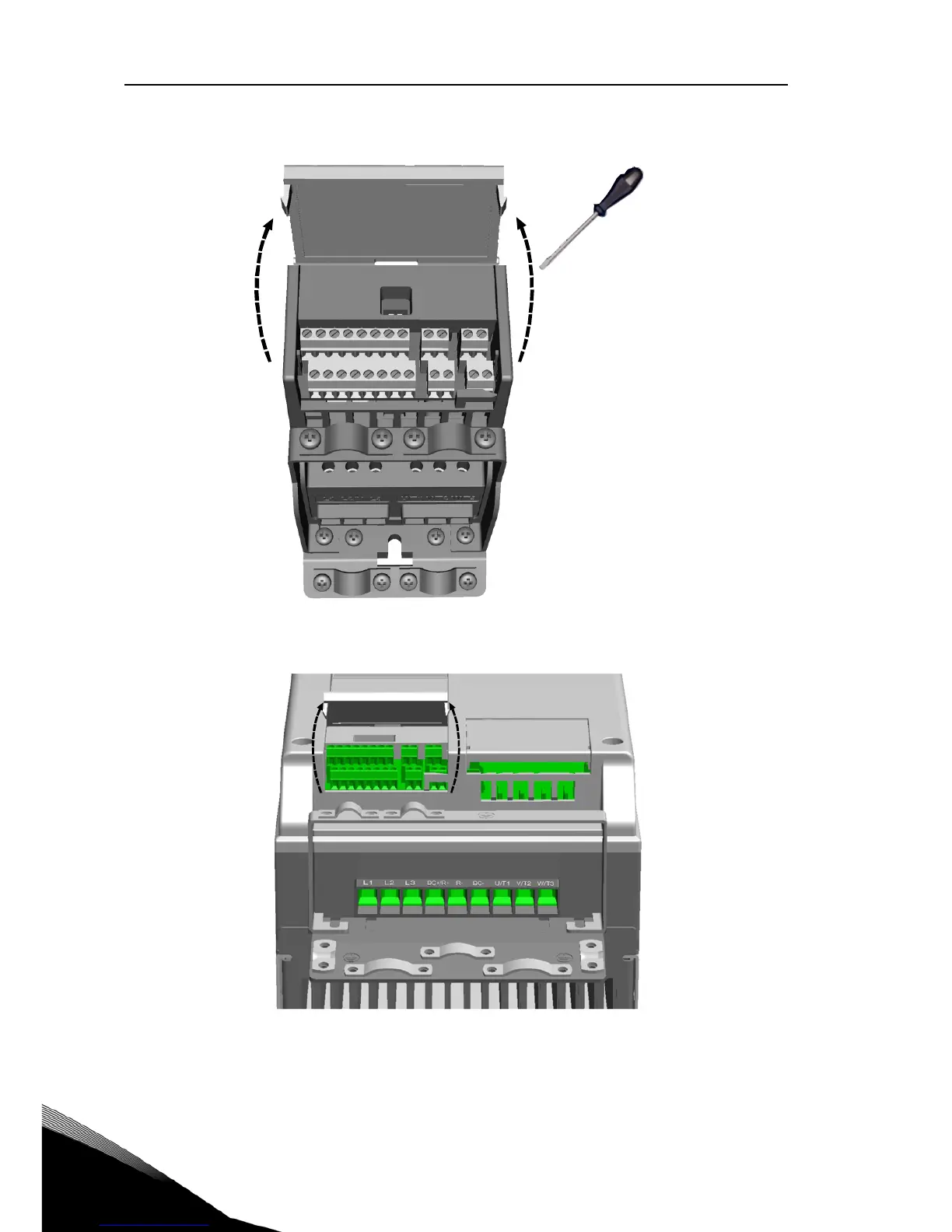

Figure 14: Open the lid MI1 - MI3
Figure 15: Open the lid MI4 - MI5
