4 • vacon installation
Tel. +358 (0)201 2121 • Fax +358 (0)201 212205
2

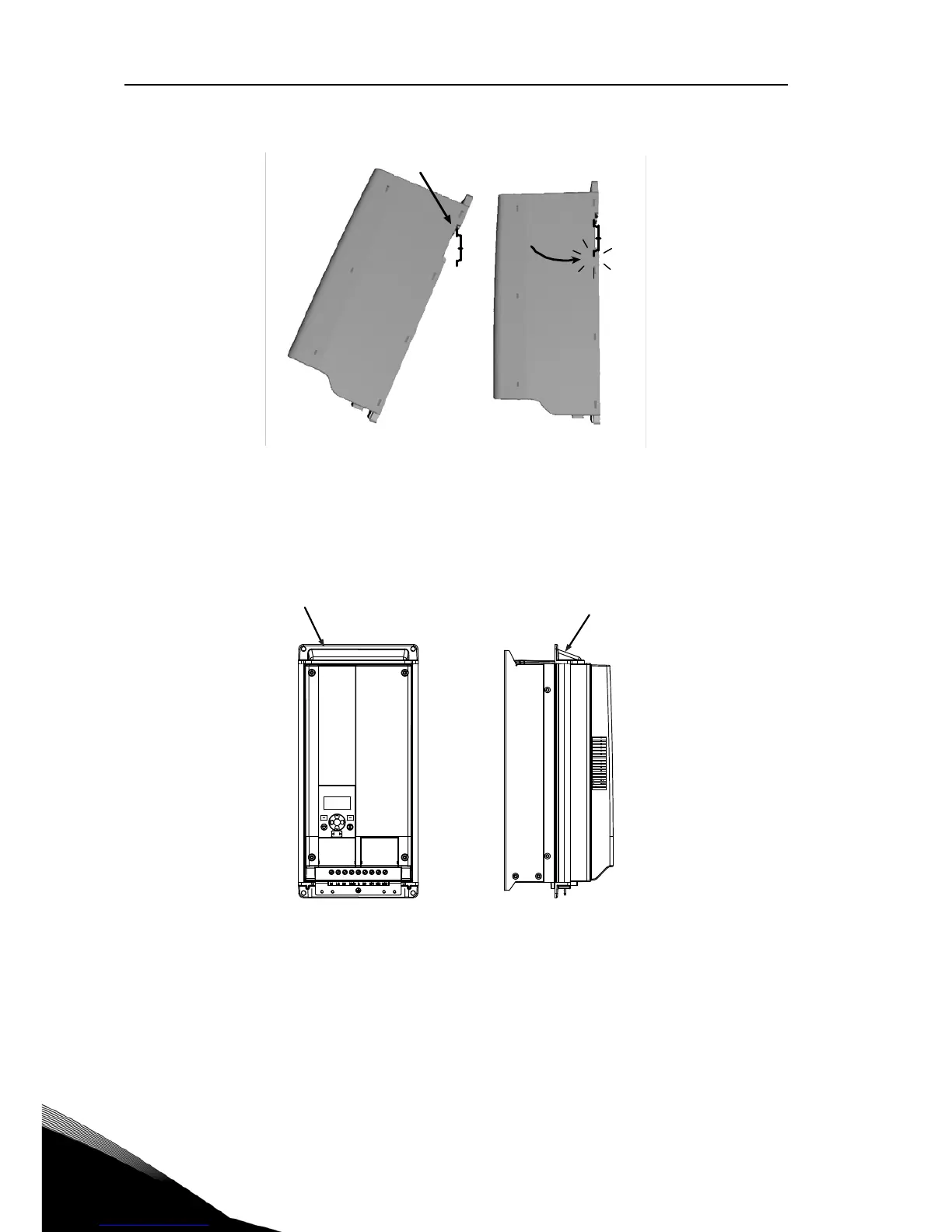

Figure 3: DIN-rail mounting, MI1 - MI3
Note! See the mounting dimensions on the back of the drive.
Leave free space for cooling above (100 mm), below (50 mm), and on the sides
(20 mm) of Vacon 20! (For MI1 - MI3, side-to-side installation allowed only if the am-
bient temperature is below 40 °C; For MI4 - MI5, side-to-side installation is not al-
lowed.
Figure 4: flange mounting, MI4 – MI5
12
LOC
REM
BACK
RESET
OK
