Parameters vacon • 9
24-hour support +358 (0)201 212 575 • Email: service@vacon.com
2

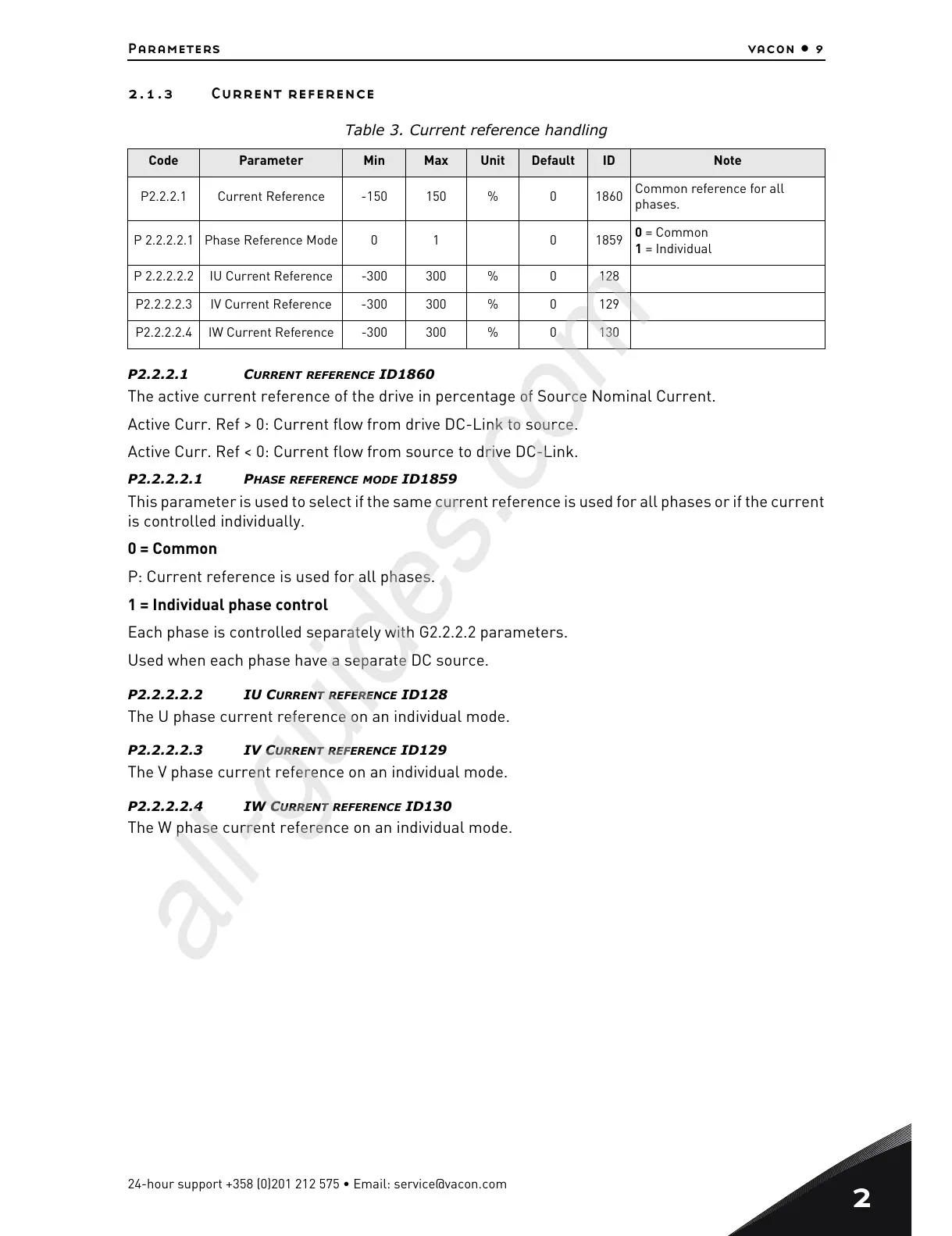

2.1.3 Current reference
P2.2.2.1 CURRENT REFERENCE ID1860
The active current reference of the drive in percentage of Source Nominal Current.
Active Curr. Ref > 0: Current flow from drive DC-Link to source.
Active Curr. Ref < 0: Current flow from source to drive DC-Link.
P2.2.2.2.1 PHASE REFERENCE MODE ID1859
This parameter is used to select if the same current reference is used for all phases or if the current
is controlled individually.
0 = Common
P: Current reference is used for all phases.
1 = Individual phase control
Each phase is controlled separately with G2.2.2.2 parameters.
Used when each phase have a separate DC source.
P2.2.2.2.2 IU CURRENT REFERENCE ID128
The U phase current reference on an individual mode.
P2.2.2.2.3 IV CURRENT REFERENCE ID129
The V phase current reference on an individual mode.
P2.2.2.2.4 IW CURRENT REFERENCE ID130
The W phase current reference on an individual mode.
Table 3. Current reference handling
Code Parameter Min Max Unit Default ID Note
P2.2.2.1 Current Reference -150 150 % 0 1860
Common reference for all
phases.
P 2.2.2.2.1 Phase Reference Mode 0 1 0 1859
0 = Common
1 = Individual
P 2.2.2.2.2 IU Current Reference -300 300 % 0 128
P2.2.2.2.3 IV Current Reference -300 300 % 0 129
P2.2.2.2.4 IW Current Reference -300 300 % 0 130
