vacon • 10 Parameters
Tel. +358 (0) 201 2121 • Fax +358 (0)201 212 285

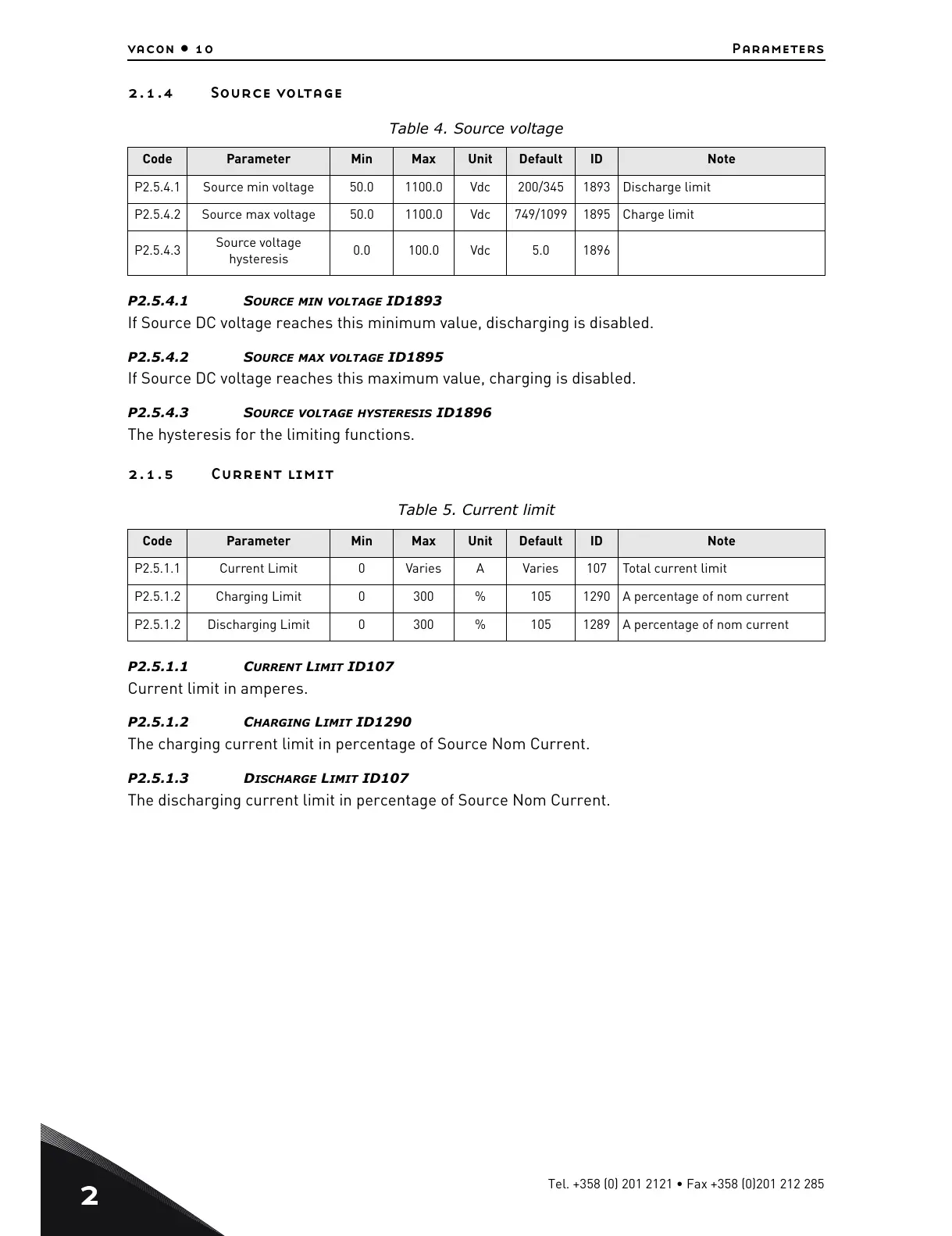

2.1.4 Source voltage
P2.5.4.1 SOURCE MIN VOLTAGE ID1893
If Source DC voltage reaches this minimum value, discharging is disabled.
P2.5.4.2 SOURCE MAX VOLTAGE ID1895
If Source DC voltage reaches this maximum value, charging is disabled.
P2.5.4.3 SOURCE VOLTAGE HYSTERESIS ID1896
The hysteresis for the limiting functions.
2.1.5 Current limit
P2.5.1.1 CURRENT LIMIT ID107
Current limit in amperes.
P2.5.1.2 CHARGING LIMIT ID1290
The charging current limit in percentage of Source Nom Current.
P2.5.1.3 DISCHARGE LIMIT ID107
The discharging current limit in percentage of Source Nom Current.
Table 4. Source voltage
Code Parameter Min Max Unit Default ID Note
P2.5.4.1 Source min voltage 50.0 1100.0 Vdc 200/345 1893 Discharge limit
P2.5.4.2 Source max voltage 50.0 1100.0 Vdc 749/1099 1895 Charge limit
P2.5.4.3
Source voltage
hysteresis
0.0 100.0 Vdc 5.0 1896
Table 5. Current limit
Code Parameter Min Max Unit Default ID Note
P2.5.1.1 Current Limit 0 Varies A Varies 107 Total current limit
P2.5.1.2 Charging Limit 0 300 % 105 1290 A percentage of nom current
P2.5.1.2 Discharging Limit 0 300 % 105 1289 A percentage of nom current
