Vacon NX series Operating Guide

Introduction vacon • 3
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
1

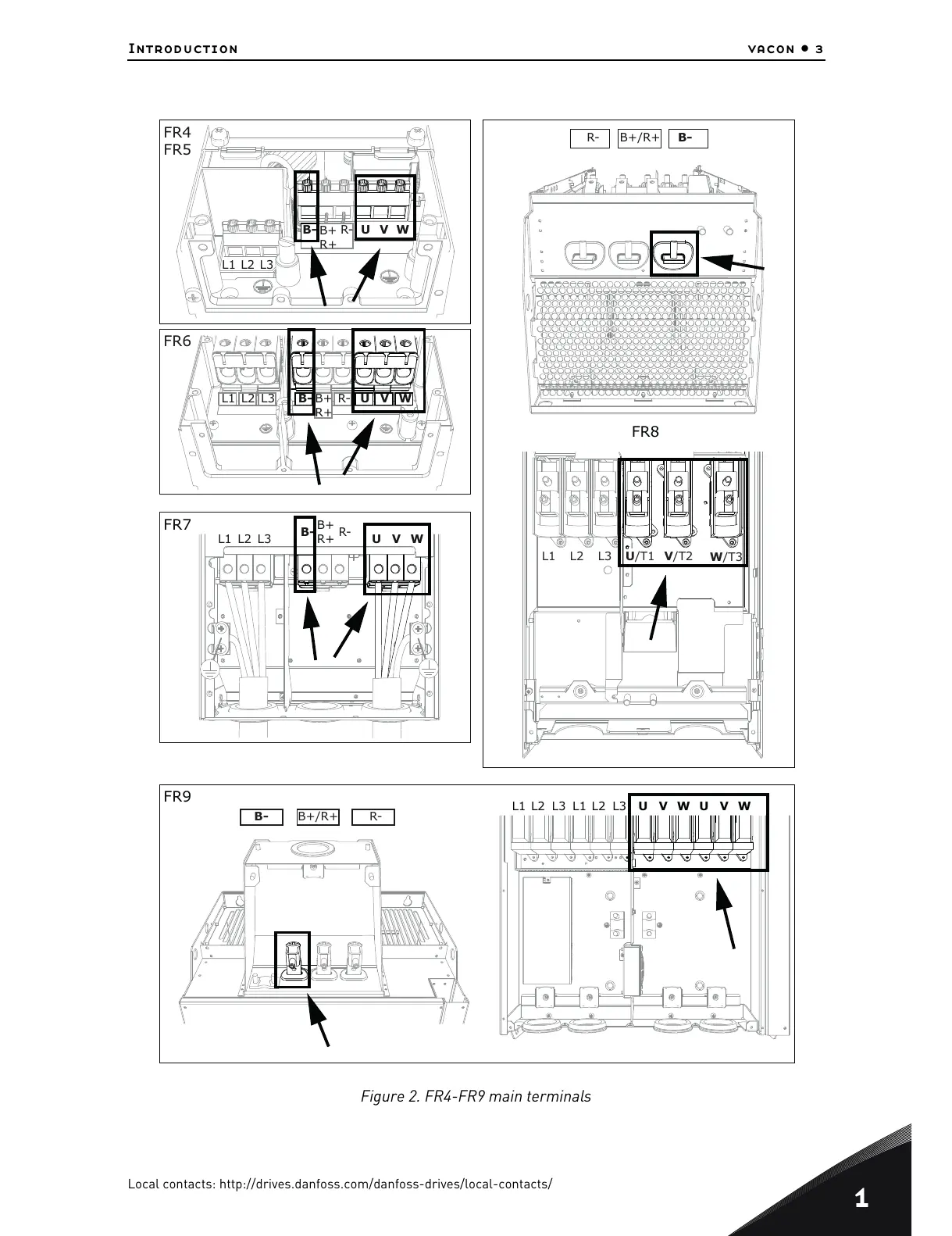

Figure 2. FR4-FR9 main terminals
FR6
UVW
L1 L2 L3
FR4
FR5
B- R-
B+
R+
U
VWB- R-B+
R+
L1 L2 L3
FR7
R-
B+/R+ B-
FR8
B- B+/R+ R-
FR9
L2L1 L3
U/T1 V/T2
W/T3
L1 L2 L3 L1
L2
L3
U
VWU
V
W
U
VW
B- R-
B+
R+
L1 L2 L3
All manuals and user guides at all-guides.com

Vacon NX series Specifications

General

Product type	AC Drive
Output voltage range	0-Uin
Frequency range	0-500 Hz
Enclosure classes	IP00, IP21
Mounting types	Wall
Braking chopper	Integrated or external
EMC filter	Built-in or external
Control modes	Scalar, Vector
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Communication options	Modbus, Profibus, CANopen, Ethernet
Ambient temperature range	-10°C to +50°C
Cooling method	Air-cooled
