AV Bridge MATRIX PRO
AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 14 of 68

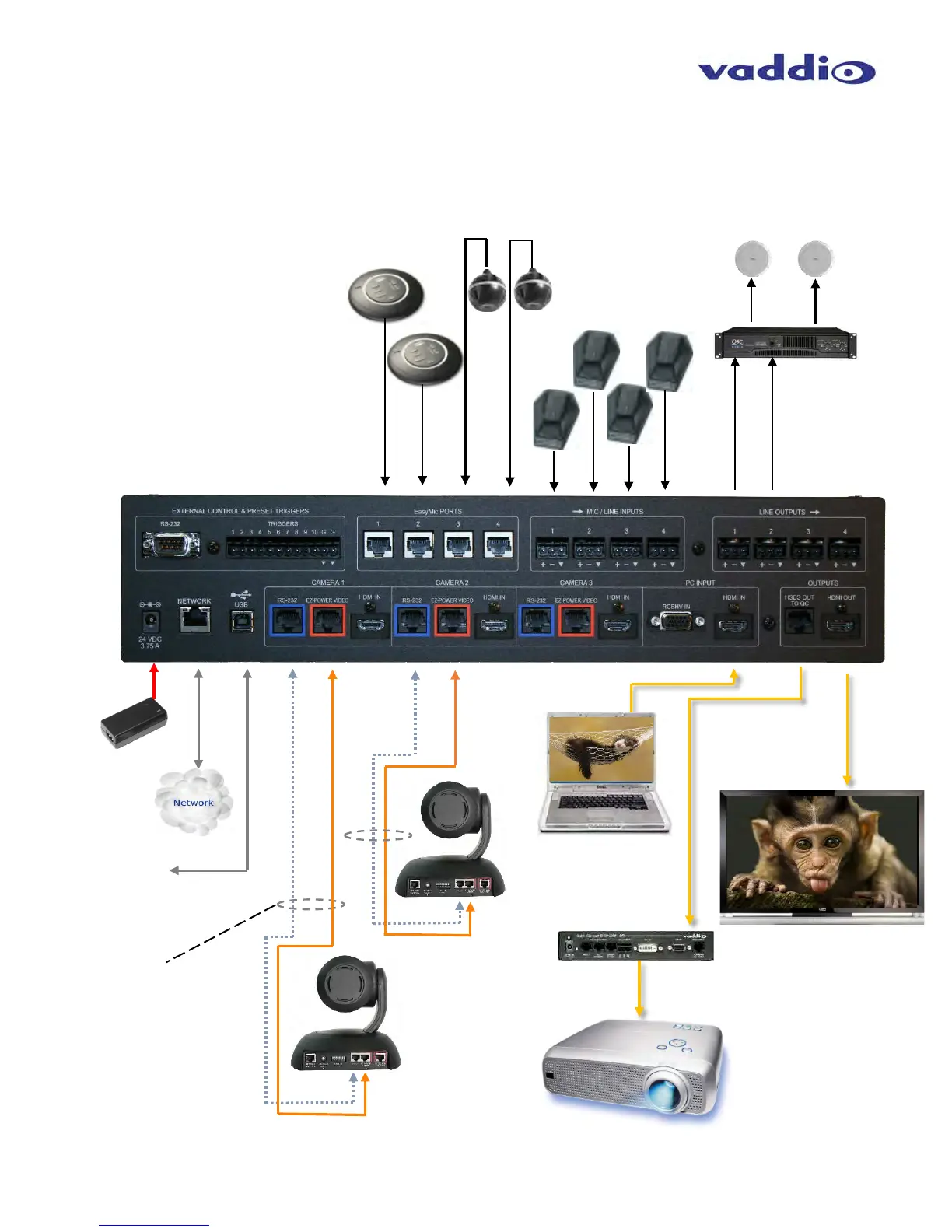

Basic System Configuration
AV Bridge MATRIX PRO connected to (2) Vaddio PTZ Cameras, (1) Laptop PC, (2) Vaddio EasyMIC MicPODs,
(2) Vaddio EasyMIC Ceiling MicPODs, (4) Audio-Technica™ PZM mics, (1) room amplifier and speakers, HDMI
Program output feeding a monitor, the Vaddio HSDS output feeding a Quick-Connect DVI/HDMI to provide the
video signal for an overhead projector, and connectivity for Network and USB streaming.
EZ Power/Video, and
Control over (2) Cat-5e
up to 100’ (30m) for
PTZ cameras, and up
to 150’ (45m) for fixed
POV cameras
3-LCD Projector
AV Bridge
MATRIX PRO
EZ Power/Video
PC/MAC
Simulated Video Feed
RS-232
Power-rite
24VDC
3.75 Amp
Vaddio DVI-SR Quick-
Connect shown as a
display adapter
Vaddio HSDS Video
HDMI
HDMI
HDMI
To USB
Streaming
Computer
RoboSHOT 30s shown.
MATRIX PRO can be
used with:
RoboSHOT,
ZoomSHOT, or Vaddio
HD-Series cameras
Audio
Amplifier
Speakers
EasyMIC MicPODS (2)
Ceiling MicPODS (2)
PZM MICS (4)
