AV Bridge MATRIX PRO
AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 15 of 68
Audio Expansion Configuration Using PRO MIC I/O

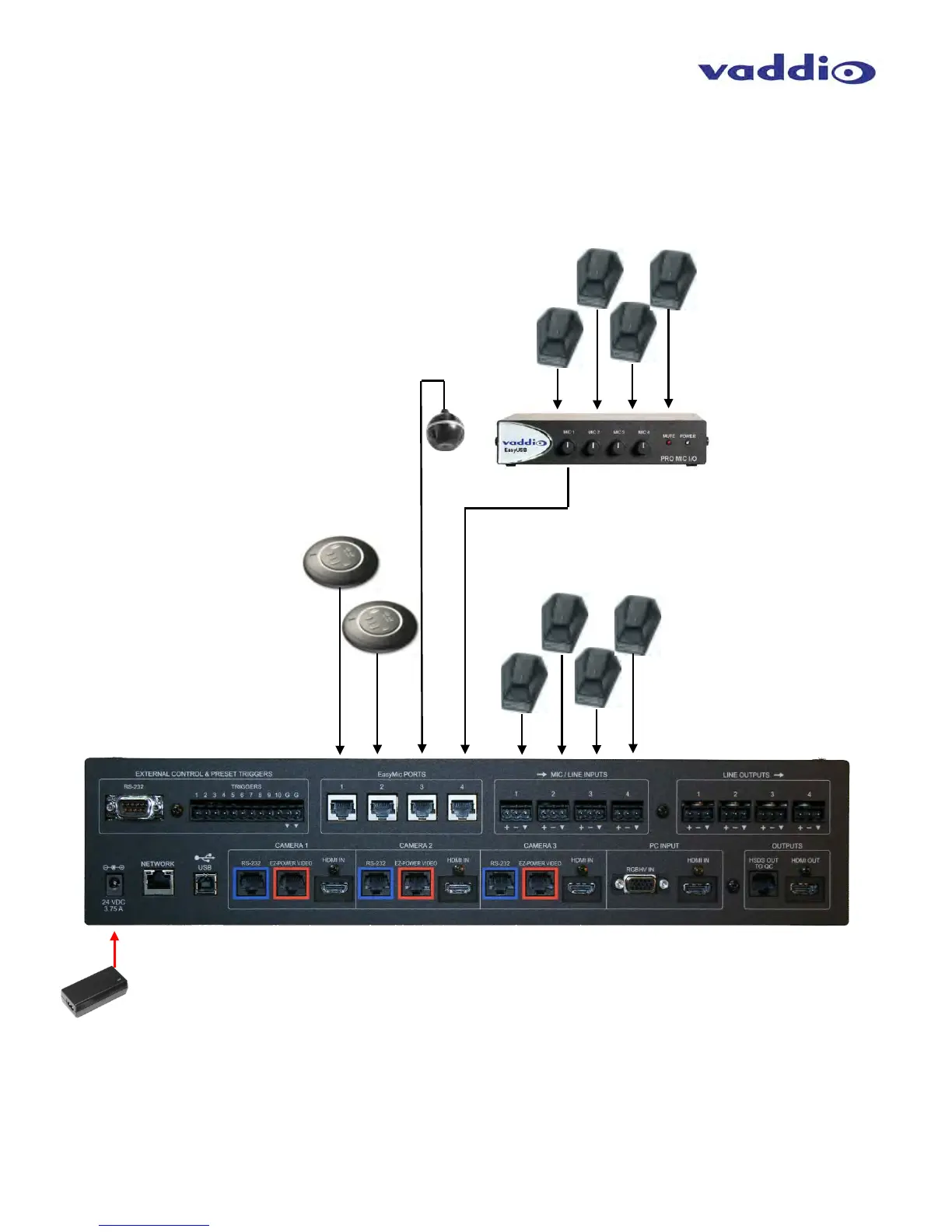

The example shown is (1) Ceiling MicPOD, (2) EasyMIC MicPODs, (4) 5-wire PZM Mics into the MIC/LINE
audio inputs, and (1) EasyUSB PRO MIC I/O used as an audio expander with (4) 5-wire PZM mics. The
output of the PRO MIC I/O would be the mixed and summed output of the PZM mics, and would show up
in the audio matrix as EasyMIC #4. 5-wire mics are shown, assuming 2 of the wires are used for triggers
when the mics are enabled.
Power-rite
24VDC
3.75 Amp
Easy MIC PODS (2)
Ceiling MIC POD
PZM MICS (4)
PZM MICS (4)
PRO MIC I/O
