AV Bridge MATRIX PRO
AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 48 of 68

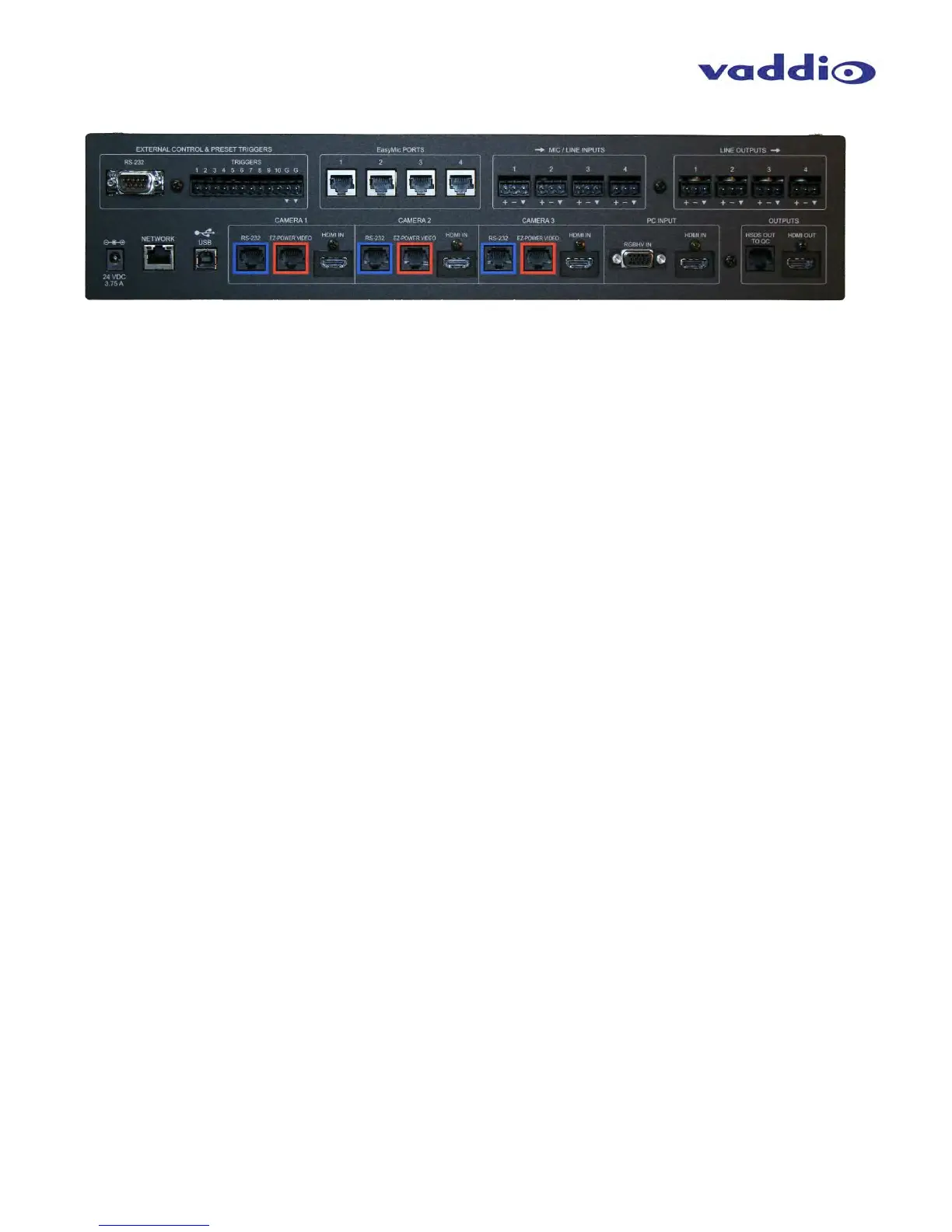

AV Bridge MATRIX PRO Back Panel Connectors
External Control Port:
• RS-232 - DE-9-F
Triggers/Tally:
• 12-pin Molex 5.0mm Euro connector (two 7-pin mating connectors)
Easy Mic Ports Audio in 1-4:
• Direct Audio and power connection to Vaddio MicPODs or Vaddio Ceiling MicPODs
Line Inputs Audio 5-8:
• Balanced Mic or Line inputs
• 48vdc switchable Phantom power
Line Ouputs 1-4:
• Balanced differential outputs
Power:
• 24 VDC, 3.75A (5.5mm OD x 2.5mm ID), Positive Center
Inputs 1-3:
• Analog Differential Camera Component Video on RJ-45: YPbPr, RGBHV, Y/C and CVBS (DE-15 female x 5)
• RS-232C Port (RJ-45 Jack x 5)
• Alternate Digital HD video on HDMI
Input 4:
• HDMI x 1
• Analog Component Video - YPbPr, RGBHV (DE-15 female x 1)
Program Out:
• Digital HD video on HDMI jack
• HDMI female x 1
USB 2.0 Streaming:
• UVC Video streaming
• UAC Audio streaming
IP Streaming Out:
• RTSP
• HLS (Apple’s HTTP Live Streaming)
HSDS Display Port Out:
• Analog Differential (HSDS) output to feed any Vaddio Quick-Connect at the display location
• HSDS Output on RJ-45 8-pin jack
