AV Bridge MATRIX PRO
AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 9 of 68

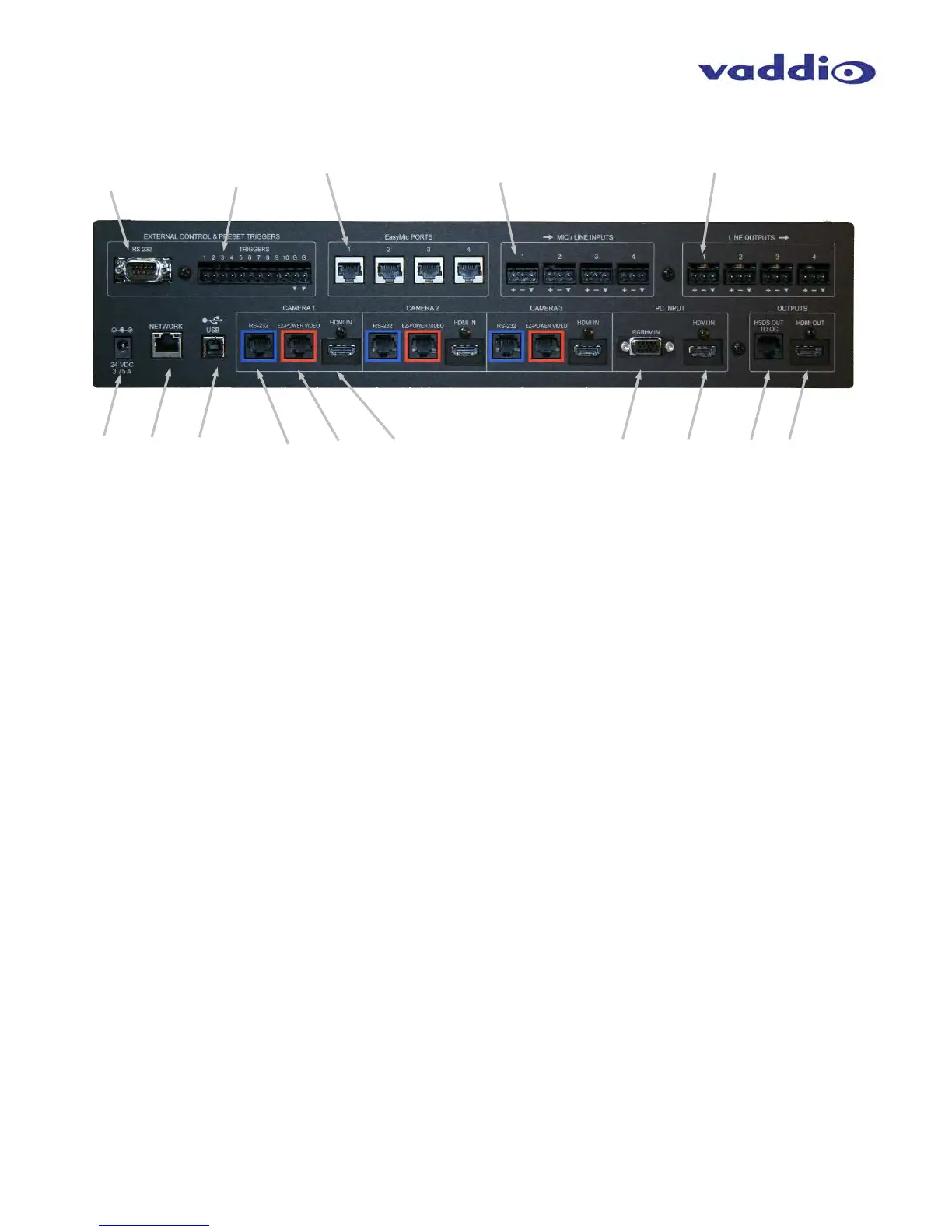

AV Bridge MATRIX PRO Rear Panel with Feature Call-outs cont’d
A. HDMI Input (Camera Inputs 1-3): Alternate HDMI video source input for use when Vaddio (2) CAT-5 cameras
are not attached via the built-in Quick-Connects.
B. RGBHV Input on DE-15 (Input 4): RGBHV HD Input for Input 4.
C. HDMI Input (Input 4): HDMI HD Input jack for Input 4.
D. HSDS Output: Vaddio HD HSDS differential analog component display Output to feed any locally powered
Vaddio Quick-Connect™ at display locations up to 150 Ft. (45M) away from the MATRIX PRO.
E. HDMI Output: HD HDMI output to feed any downstream or monitoring destinations.
