AV Bridge

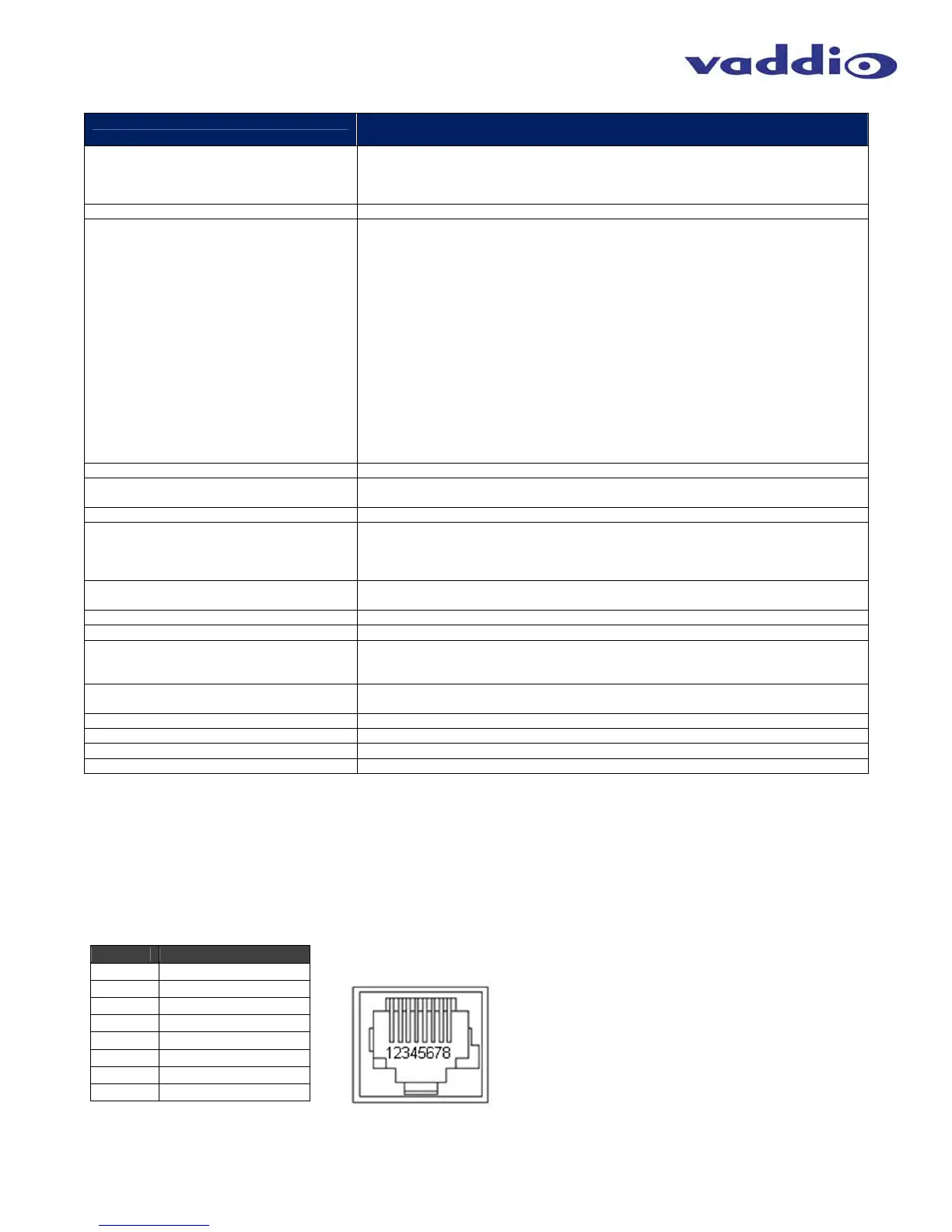

Vaddio AV Bridge - Document Number 342-0518 Rev C Page 23 of 36
General Specifications
Part Numbers AV Bridge 999-8210-000 - North America
AV Bridge 999-8210-001 - International
Encoding - Release 2.0 Video Encoding: H.264 (IP) or MJPEG (USB)
Resolution up to 1080/30 (IP) or 720P/30 (USB)
Audio Encoding: AAC (IP) or PCM (USB)
Variable Bit Rates
Supported Media Players Real Media Player, QuickTime, VLC Media Player
Video Inputs & Supported Video
Resolutions:
Connectors: HDMI, DE-15 (for YPbPr and RGBHV) and BNC-F for Std. Def.
HDMI: and YPbPr:
1080p/60/59.94/50/30/25 frames/s, 720p/60/59.94/50 frames/s,
1080i/59.94/50 fields/sec
RGBHV (VESA RESOLUTIONS):
1280 x 720@60Hz (16:9), 1280x768@60Hz (15:9)m, 1280x800@60Hz (16:10), 1360 x
768@60Hz (16:9), 1024 x 768@60Hz (4:3 centered in 16:9 frame)
DVI (on HDMI connector using sRGB color space):
1080p/60/59.94/50/frames/s, 720p/60/59.94/50Hz frames/s
1080i/59.94/50Hz, fields/sec, 1440 x 900@60Hz, 1360 x 768@60Hz,
1280 x 800@60 Hz, 1280 x 768@60Hz, 1280 x 720@60Hz,
1152 x 720@60Hz, 1024 x 768@60Hz
EDID Supported Resolutions:
1080p/60/59.94/50/frames/s, 720p/60/59.94/50Hz frames/s, 1440 x 900@60Hz,
1360x768 @ 60Hz, 1280x800 @ 60 Hz
CVBS:
480i/29.97Hz NTSC, 576i/25Hz PAL
Video Processing Auto Scaling, Noise Filter, Deinterlacing
Analog Audio Input Connector: 2-XLR (Balanced) & 2-RCA (unbalanced)
Nominal Line Level +4dBu Balanced, -10dBV Unbalanced
Audio Processing Compressor, EQ, Filter
USB 2.0 Interface Connector Type-B
Type: USB 2.0 Compliant
Supported Drivers: USB Video Class, (UVC), USB Audio Class (UAC) No Custom
Drivers Required
Network Interface Connector: RJ-45
Type 10/100 Base-T
IP Streaming Supported RTSP or HLS (Apple’s HTTP Live Streaaming)
RS-232 Port Connector: RJ-45
User Controls and Configuration Front Panel LCD and Controls - High use functions such as presets & volume
Embedded Web Server for Advanced configurations and administration
Rear Panel Dip Switch (Set to factory Default
Power Supply Connector: 5.5mm OD x 2.5mm ID Coaxial
18VDC, 2.75 Amp
Operating Temperature 32° to 104° F (0° to 40° C)
Power Consumption Maximum: 36 Watts
Dimensions (WxHxD) 18.93” W x 1.72” H x 7.0” D
Weight 3.14159321 lbs. (1.425 kg)
Appendix 1- Connectors Pin Outs
RS-232 on AV Bridge
Baud Rate: Selectable 9600, 19.2, or 38.4 kbps
 NOTE: The Default Rate is 38.4 kbps
Pin # RS-232 Port
1 Unused
2 Unused
3 Unused
4 Unused
5 Unused
6 GND
7 TXD
8 RXD
